2.3 Drive topology
This section describes the main design features and introduces the
major power electronics components of a typical ACS2000.

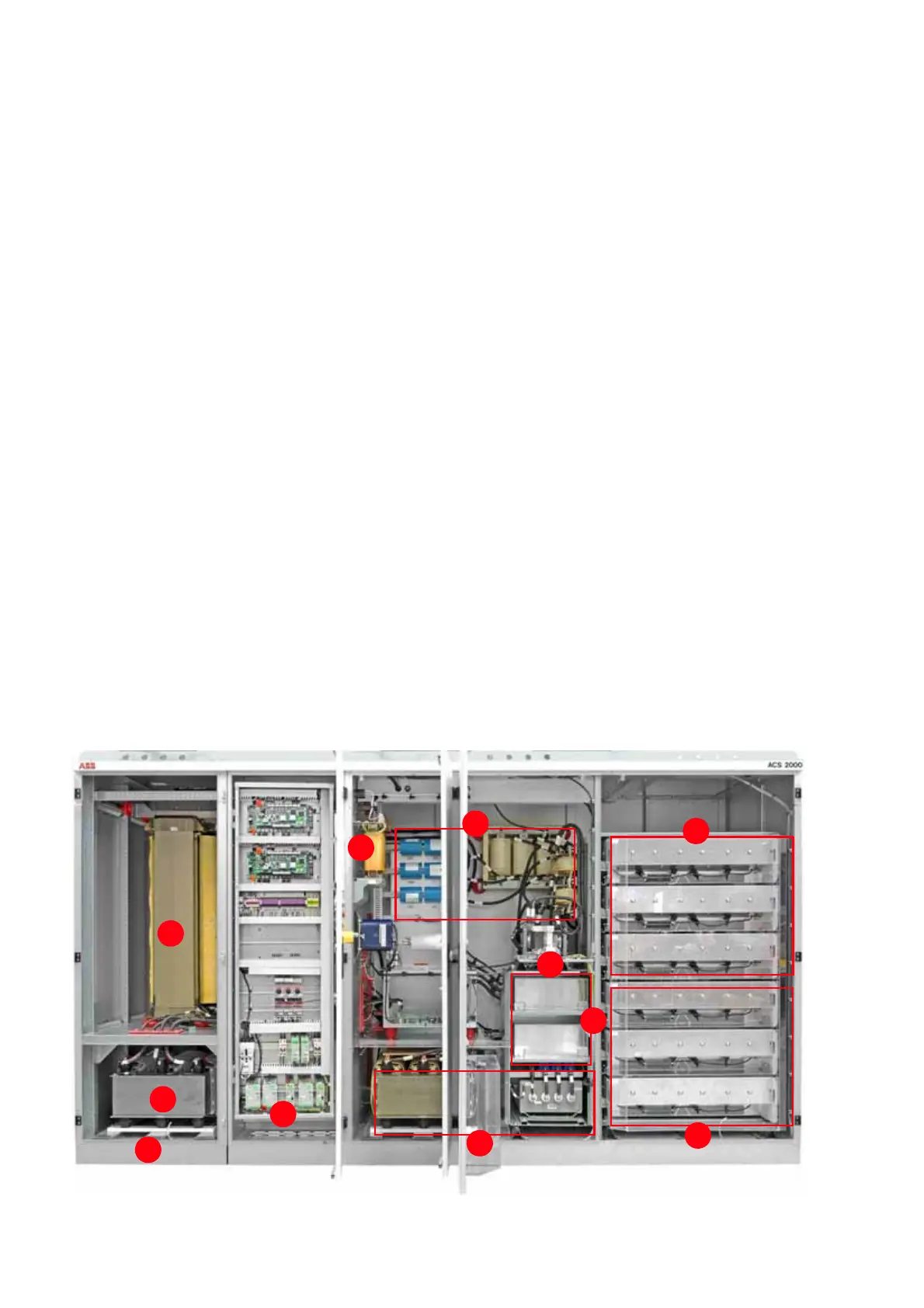

1. DTL compartment with common mode choke
(A) and line choke (B)
2. Swing frame of control unit
3. IFU - input filter unit
4. DC link capacitors
5. AFE - Active front end
6. INU - Inverter unit
7. Grounding switch
8. EMC filter
9. Charging transformer
—
References
—
2-4 Main components of
the drive
—
2-4
1
2
3
4
7
5
6
8
9
B
A
