Phase module
The AFE consists of three identical phase modules
each housing the series-connected IGBT semicon-
ductors, the phase capacitor, the gate drivers, and
the interface circuit board for communication with
the main control circuit board (AMC circuit board)
of the AFE.
The high voltage IGBT is a power semiconductor
switching device specially developed for medium
voltage drives. The device is based on well-estab-
lished transistor technology and combines high
speed switching capabilities with high blocking
voltage and low conduction losses as known from
GTOs.
—

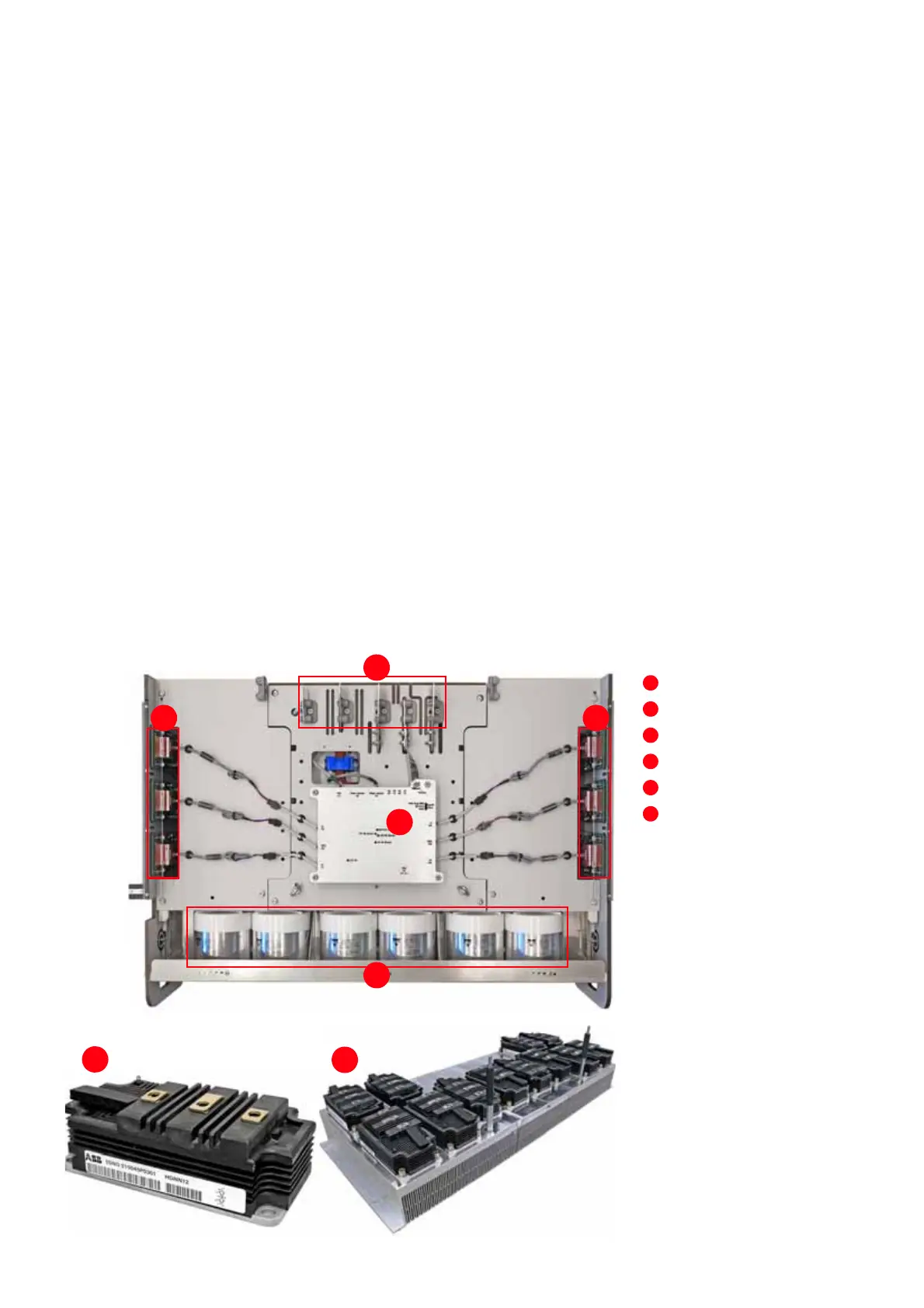

References
—
2-7 Phase module
—
2-7
3
4
2
3
1
5
6
Phase capacitors
Phase INT board
Gate drivers
Connectors
IGBT assembly on heat sink
IGBT module, each module
contains two IGBTs
1
2
3
4
5
6
