2.7 Cooling system
The drive and the integrated transformer are each equipped with fan
units.
2.7.1 Fan unit configurations
Optionally, the drive and the integrated trans-
former can have a redundant fan configuration,
ensuring full operation in the event of fan failure.
The drive can be equipped with fan units of the fol-
lowing types:

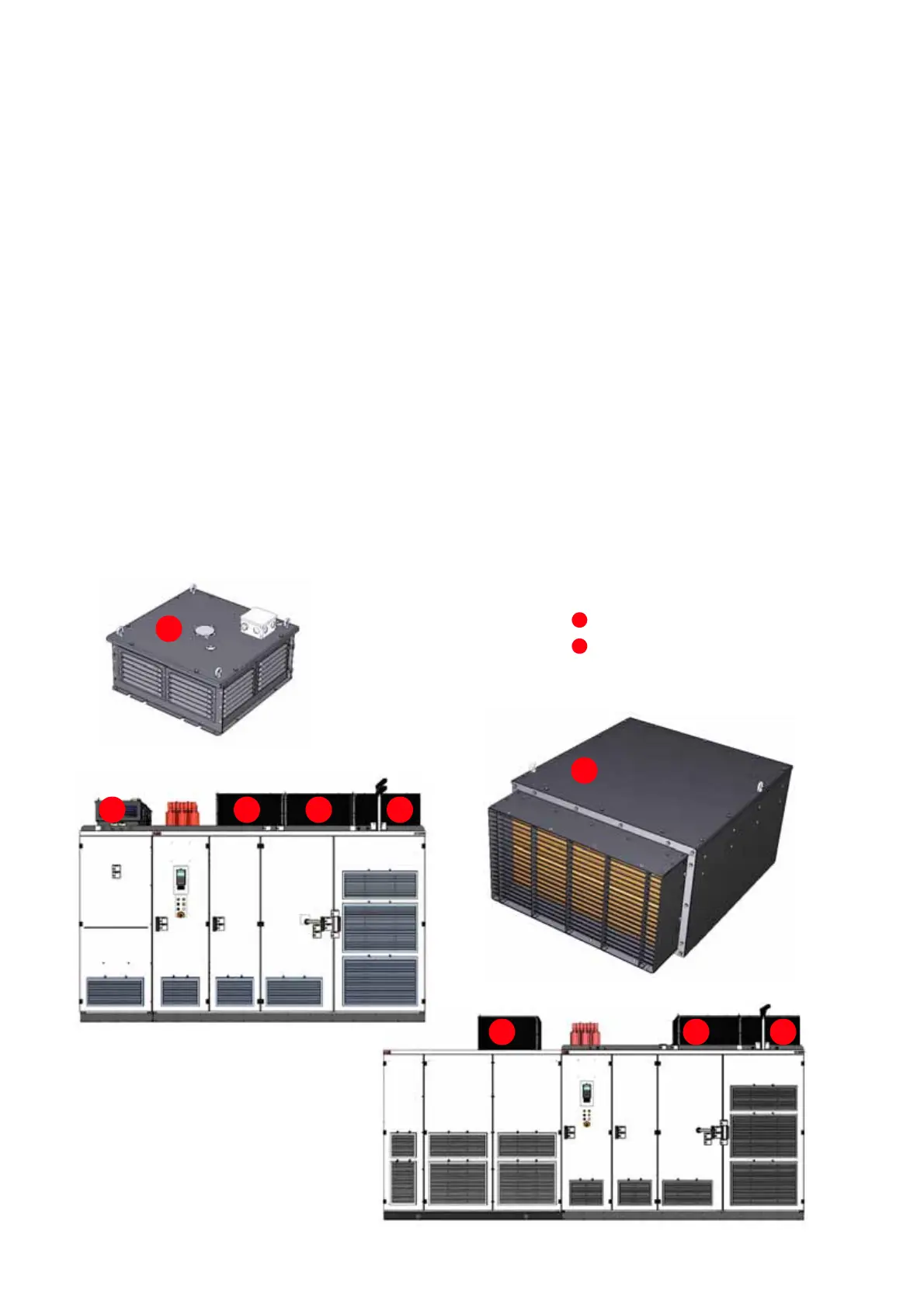

ACS2000 DTL
ACS2000 with integrated transformer
2
1
2 1 1 1
1 1 1
Fan unit type 1
Fan unit type 2
