55 ACS2000 AFE 2MVA UM 3BHS355653 ZAB E01 REV. H
—
3.3 I/O interfaces
3.3.1 IOEC I/O modules
Overview
Internal and external, analog and binary I/O signals
are connected to the control system by IOEC mod-
ules.
The standard I/O includes one external module
(IOEC 2) and one module that is internal to the
drive operation (IOEC 1). The standard I/O pro-
vides standard control and supervision functional-
ities sufficient for most applications.
The drive can include optional expansion I/O that
includes an external module (IOEC 4) and an inter-
nal module (IOEC 3). These expansion modules pro-
vide extra inputs and outputs for control and
supervision as may be required by ABB or the cus-
tomer to support various control options.
—

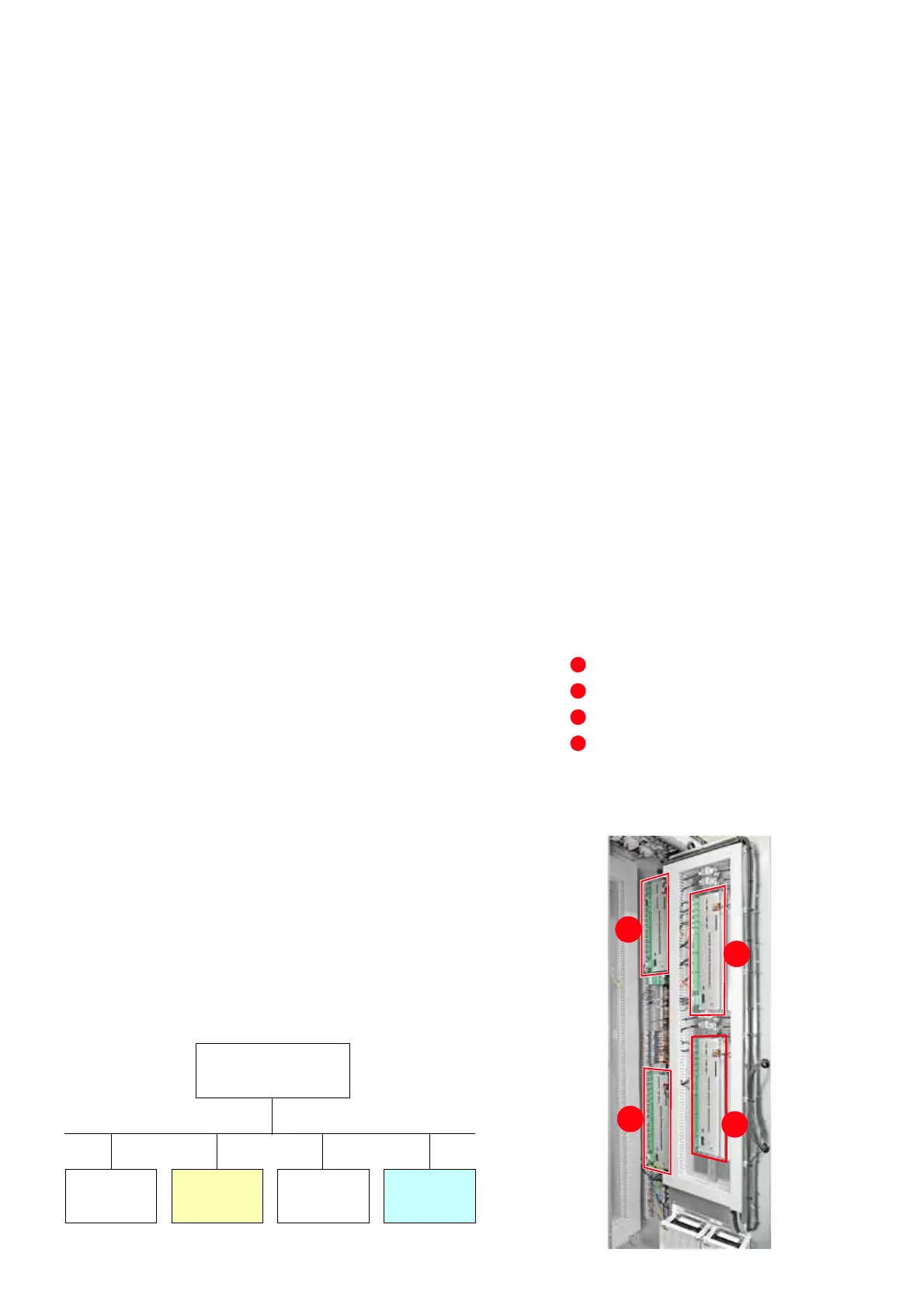

References
—
3-6 IOEC modules
overview
—
3-7 IOEC modules
location
—
3-6
IOEC 1
IOEC 2
IOEC 3
IOEC 4
AMC circuit board
Standard Standard Option Option
Standard internal IOEC 1 (A3401)
Standard external IOEC 2 (A3411)
Optional internal IOEC 3 (A3421)
Optional external IOEC 4 (A3431)
1
2
3
4
—
3-7
2
4
3
1
