65 ACS2000 AFE 2MVA UM 3BHS355653 ZAB E01 REV. H

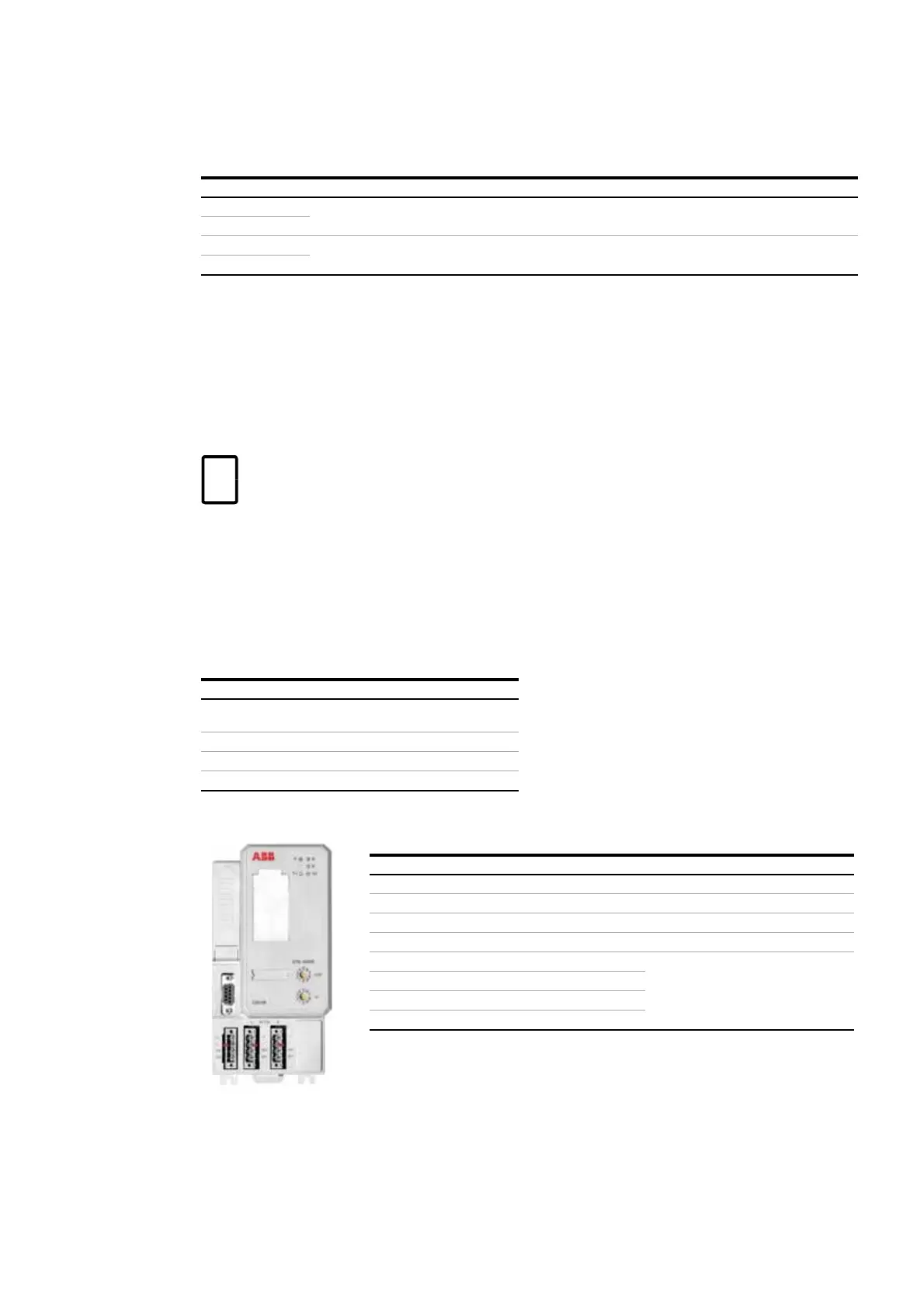

Analog outputs
3.3.5 Fieldbus communication interfaces (option)
Overview
Fieldbus communication interfaces are used for
the bidirectional communication between the drive
and a higher-level process control system. Typi-
cally, operational commands, status messages of
the drive, speed or torque reference values, and
actual values are transmitted.
Available fieldbuses
The drive can be equipped with one of the follow-
ing fieldbus interfaces.
AF 100
Table 3-13 Optional analog output signal allocation
Terminal Channel Default setting Par. group
X31-6 AO1+
AO1-
Freely programmable
X32-6
X31-7 AO2+
AO2-
Freely programmable
X32-7
For further information on data transmis-
sion and on data and signal allocation to
the transmitted datasets, see:
• Signal and parameter table
• Installation and start-up guide of the
installed fieldbus interface
• Engineering documents
Fieldbus Interface type
AF 100 fieldbus communication
interface
CI810
MOdbus TCP NETA-21
Modbus RTU NMBA-01
Profibus DP NPBA-12
Terminal allocation
X1A:1 L- 0 V supply in
X1B:1 L+ 24 VDC supply in
X1B:2 L+ 24 VDC supply out
X1B:3 SA Redundant power supply "A" monitoring input
X2:1 + + Signal
Customer connections
X2:2 - - Signal
X2:3 SH Shield
X2:4 SH Shield
