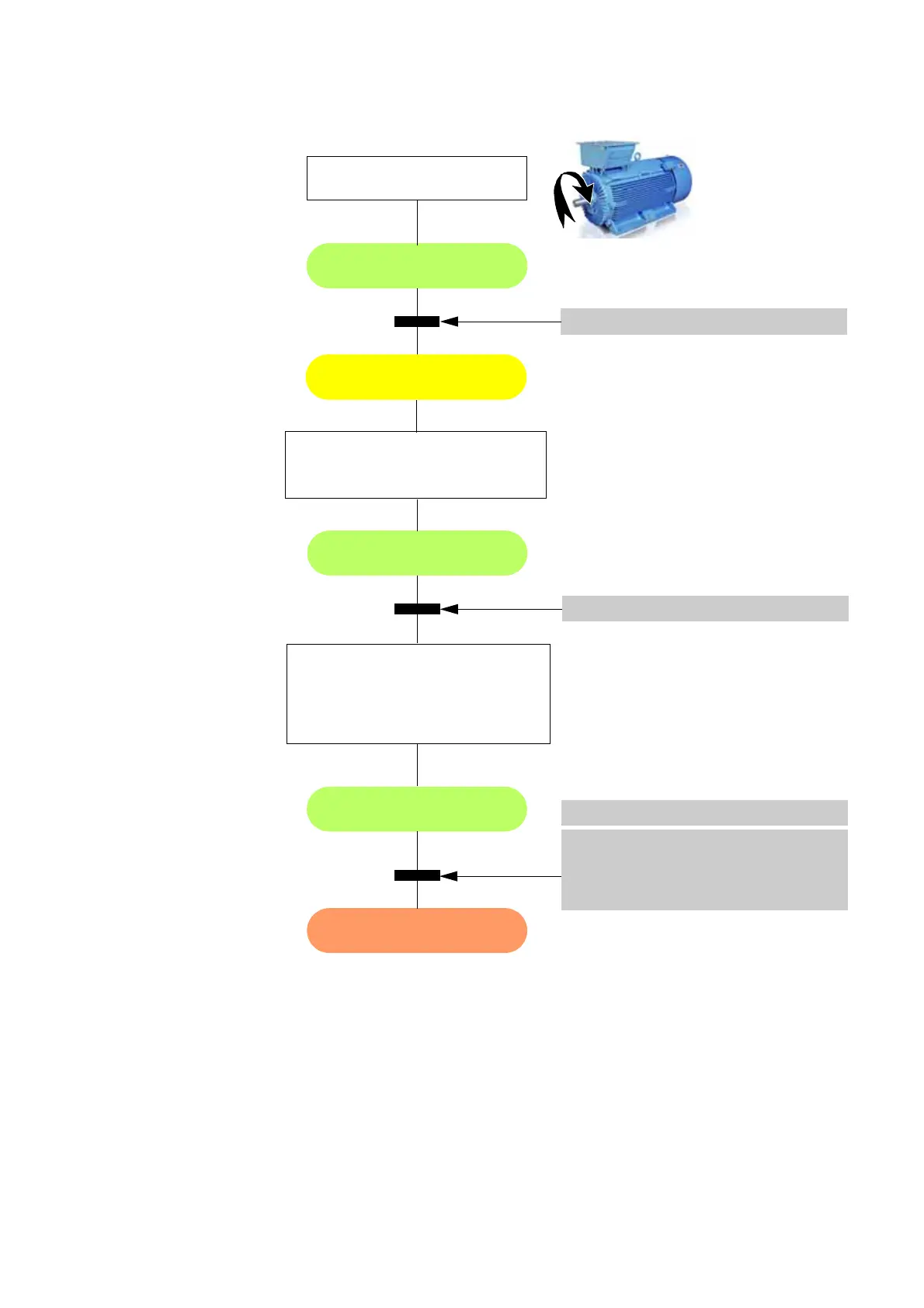

8.5.3 Stop sequence of the drive
Not ready on
Ready run
Ready on
Ready ref
Off command
MCB opens
Operation
Stop command
Speed ramps down
INU stops modulation
Actions:
Auxiliary supply is switched off
DFE - INU door
is released for opening
Drive is grounded
Stopping
DC link discharges
Fan switches off
after a delay
