CHAPTER 9 – CDP CONTROL PANEL 127

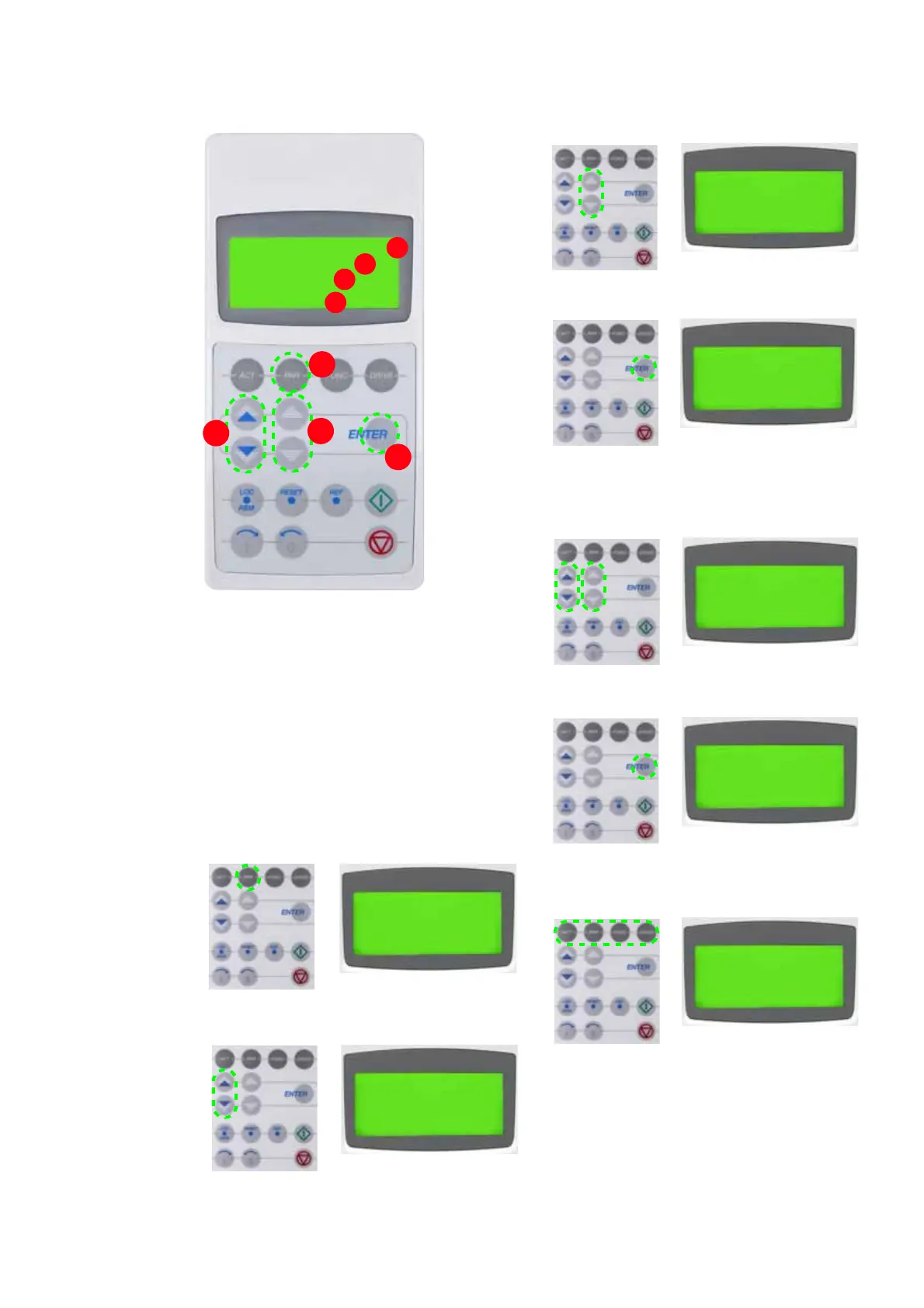

Control panel overview
1. Status line
2. Group number and name
3. Parameter number and name
4. Parameter value
5. Selection key for parameters mode
6. Fast navigation key for selecting a parameter
group (and a parameter value)
7. Slow navigation key for selecting a parameter
(and a parameter value)
8. Enter key for confirming the selection
9.6.2 Selecting and changing a parameter setting
1. To enter the parameters mode, press the PAR
key.
2. To select a different group, press the corre-
sponding fast navigation key.
3. To select a parameter, press the corresponding
slow navigation key.
4. To enter the parameter setting function, press
the ENTER key.
5. To change the parameter value, press:
- the slow navigation key for numbers and
text,
- the fast navigation key for numbers only.
6. To confirm the setting and to return to the
actual signals mode, press the ENTER key.
7. To cancel the setting and keep the original
selection, press any of the mode selection keys.
The selected keypad mode is entered.
9.6.3 Enabling / unlocking a parameter lock
Unwanted parameter entry can be prevented by
activating the parameter lock function.
The corresponding parameters are 16.02 PARAME-
TER LOCK and 16.03 PASSCODE and belong to
parameter group 16 SYSTEM CTRL INPUTS.
1 L ->
600.0 rpm
77 SYSTEM CONFIG
01 INU IdentifySel
INU1 (MASTER)
1
2
3
4
5
6
7
8
1 L ->
600.0 rpm
77 SYSTEM CONFIG
01 INU IdentifySel
INU1 (MASTER)
1 L ->
600.0 rpm
75 OPTION MODULES
06 C3P1/AI820 Module
DISABLED
1 L ->
600.0 rpm
75 OPTION MODULES
07 C3P1/AI820 Module
DISABLED
1 L ->
600.0 rpm
75 OPTION MODULES
07 C3P1/AI820 Module
[DISABLED]
1 L ->
600.0 rpm
75 OPTION MODULES
07 C3P1/AI820 Module
[DI810 24VDC]
1 L ->
600.0 rpm
75 OPTION MODULES
07 C3P1/AI820 Module
DI810 24VDC
1 L ->
600.0 rpm
75 OPTION MODULES
07 C3P1/AI820 Module
DISABLED
