CHAPTER 9 – CDP CONTROL PANEL 129
—
9.7 Functions mode

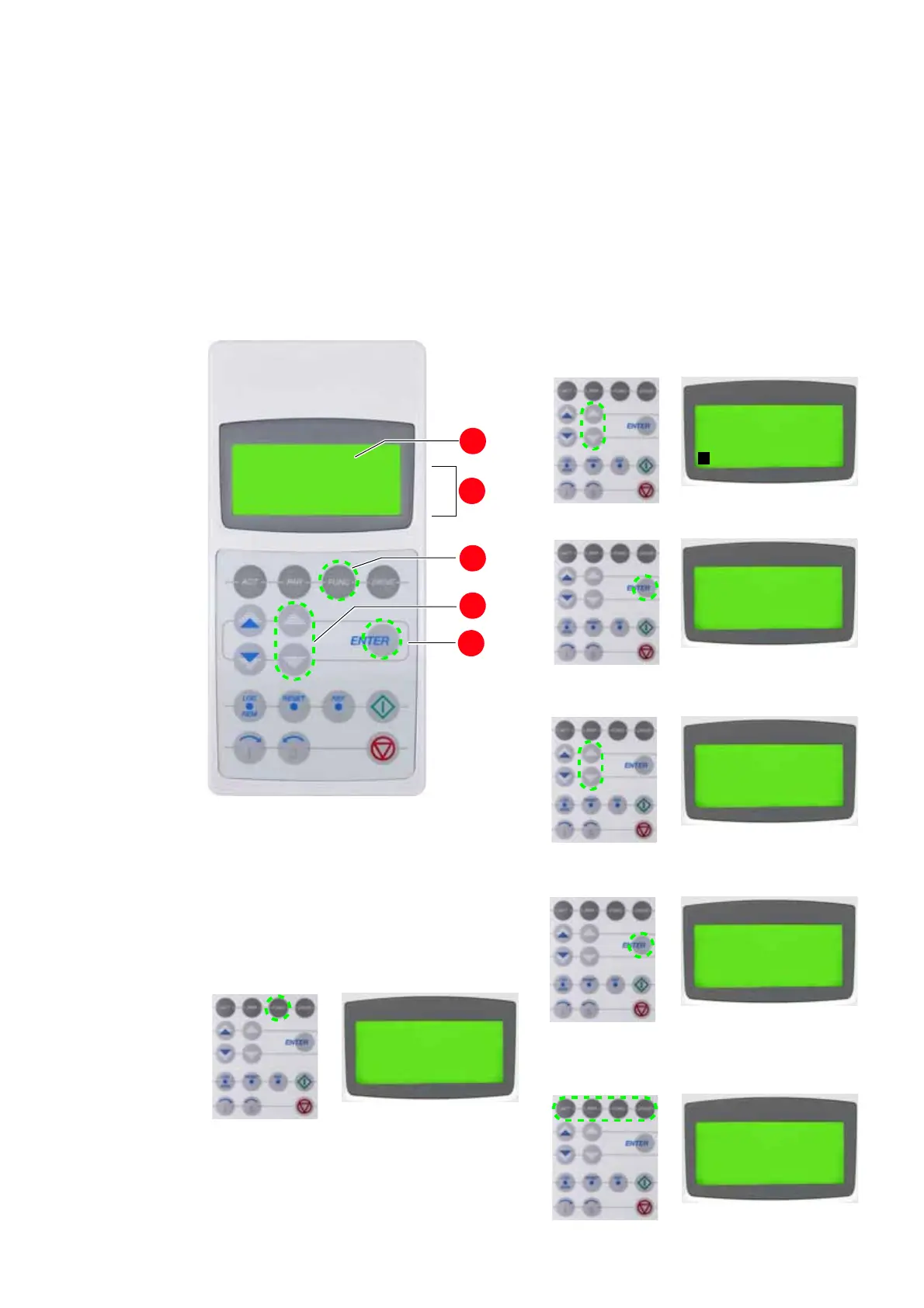

The functions mode is used to set the display contrast.
1. Status line
2. Selectable functions
3. Selection key for functions mode
4. Slow navigation key for selecting a line (and
adjusting the contrast)
5. Enter key for confirming the selection
9.7.1 Adjusting the display contrast
1. To enter the functions mode, press the FUNC
key.
2. To select the contrast adjustment function,
press the slow navigation keys until the blinking
cursor reaches the CONTRAST line.
3. Press the ENTER key.
4. To change the contrast, press the slow naviga-
tion keys.
5. To accept the selection and to return to the
actual signals display, press the ENTER key.
6. To cancel the setting and keep the original set-
ting, press any of the mode selection keys. The
selected keypad mode is entered.
1 L ->
0.0 rpm
UPLOAD
DOWNLOAD
<= <=
=> =>
4
CONTRAST
1
5
2
3
4
1 L ->
0.0 rpm
UPLOAD
DOWNLOAD
<= <=
=> =>
4
CONTRAST
1 L ->
0.0 rpm
UPLOAD
DOWNLOAD
<= <=
=> =>
4
CONTRAST
1 L ->
0.0 rpm
CONTRAST
[4]
1 L ->
0.0 rpm
CONTRAST
[6]
1 L ->
0.0 rpm
UPLOAD
DOWNLOAD
<= <=
=> =>
6
CONTRAST
1 L ->
0.0 rpm
UPLOAD
DOWNLOAD
<= <=
=> =>
6
CONTRAST
