10.4 Removing the CDP control
panel
When the CDP control panel must be removed from its mounting
cradle, follow the instructions below.
1. When the panel is removed while the drive is in
operation, check the setting of parameter 31.01
PANEL LOSS SUPERVISION first.
If the parameter is set to NOT USED, the panel
can be removed without interrupting drive
operation.
When the CDP control panel has
been removed during operation,
the drive can only be stopped by
pressing the emergency-off but-
ton.

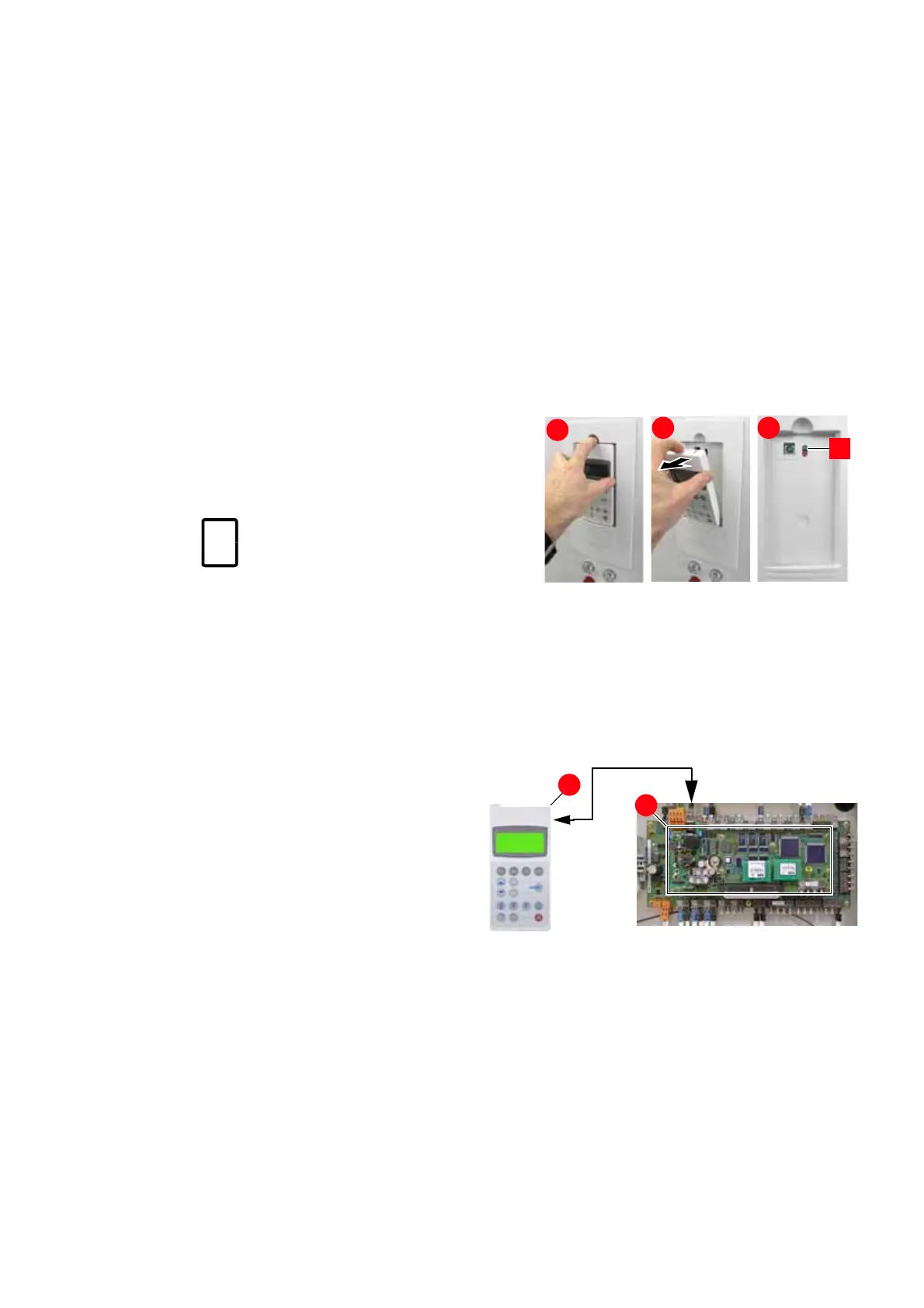

2. To remove the panel, proceed as illustrated.
Meaning of the LEDs
The green LED [4] signals that the control voltage
has been switched on.
Communication with AMC circuit board
The CDP control panel (1) is connected to the AMC
circuit board of the INU (2) via an RS485-Interface.
For information on setting parameters,
see signal and parameter table.
1242,0 rpm
1 L ->
StateINU
ReadyOn
1242 rpmMOTOR SP
86.0 kW
POWER
1
2
1
2
