ABB ACS800-04 - Adding UDC+;R+, UDC- and R- Busbars to the Pedestal (Frame Size R8, +H356+H360)

Assembly drawings
158

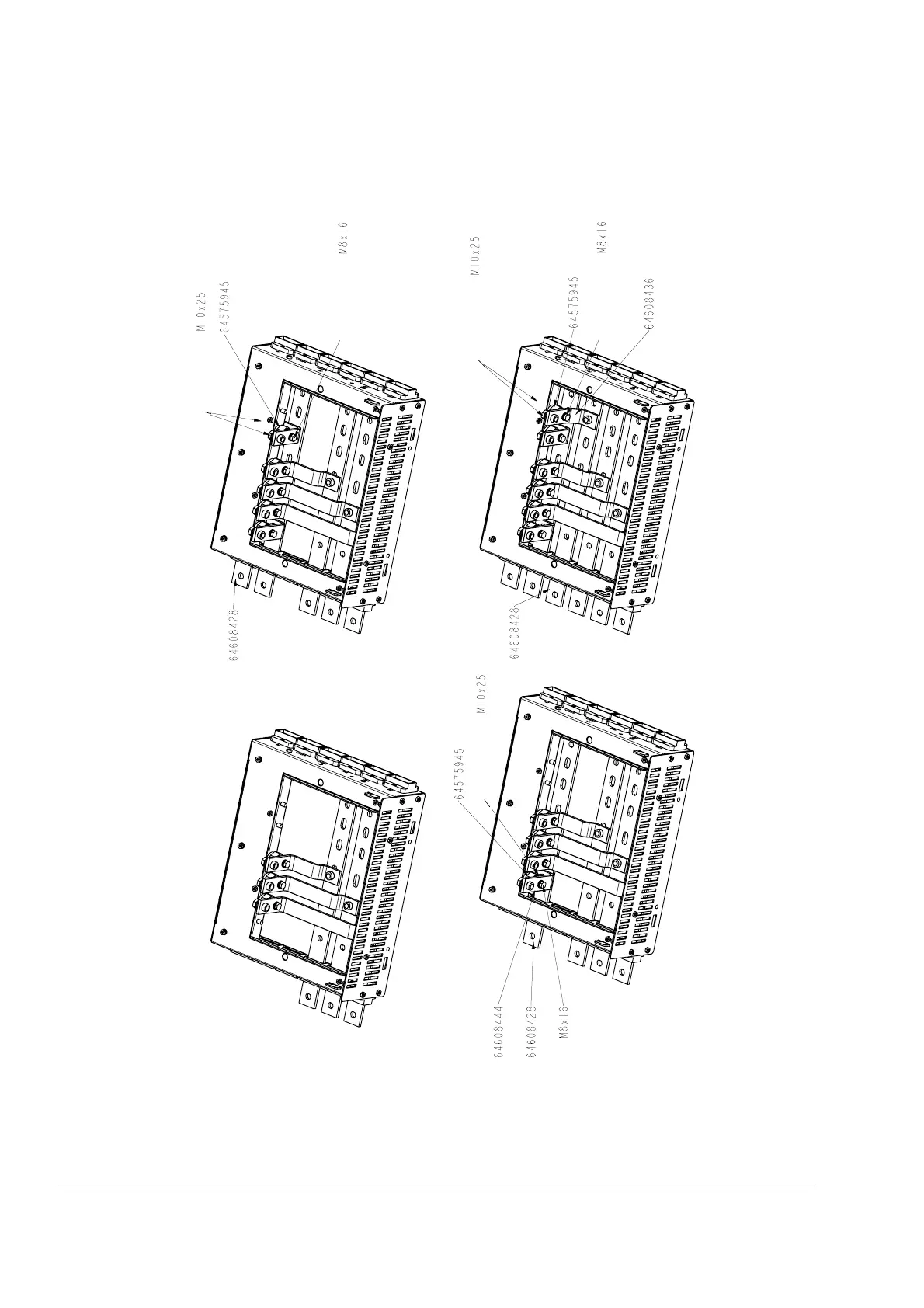

Adding UDC+/R+, UDC- and R- busbars to the pedestal (frame size R8,
+H356+H360)
Combi screw
Combi screw
Basic assembly
Step 1
UDC- busbar
Combi screw
Combi screw
Combi screw
Step 2
R- busbar
Step 3
UDC+/R+ busbar
68448905 A
Combi screw
