Line options (F)
22
Line options (F)
Standard features of different drive types

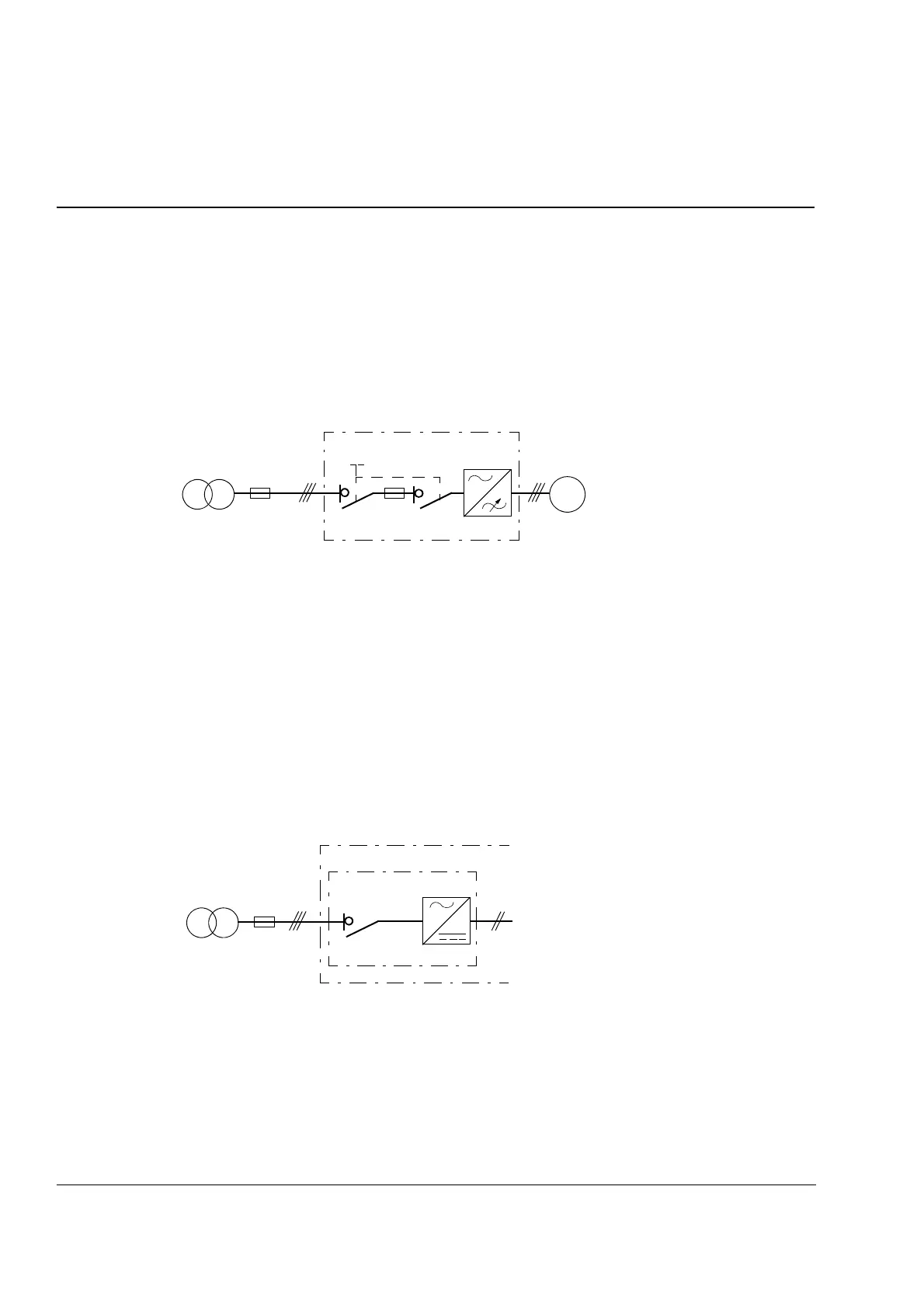

ACS800-07 frames R5 to R8
Standard features
The cabinet is equipped with a switch fuse type of main switch which contains ultra-
rapid semiconductor fuses (Class aR).
Related options: +F251 (gG fuses), F250 (line contactor)
ACS800-U7 frames R6 to R8
The cabinet is equipped with an US switch fuse type of main switch which contains
Class T or L fuses.
ACS800-07 frames n×R8i
Standard features
The supply modules are equipped with a main switch but the cabinet does not
contain AC fuses. The customer must install external fuses for the drive.
Related options: +F260 (aR line fuses) and +F253 (load-switch)
More information: ACS800-07 Hardware Manual (3AFE64731165 [English])
Drive
M
3~
Main switch
Main switch
Supply module
Drive
