Installation
14
Settings

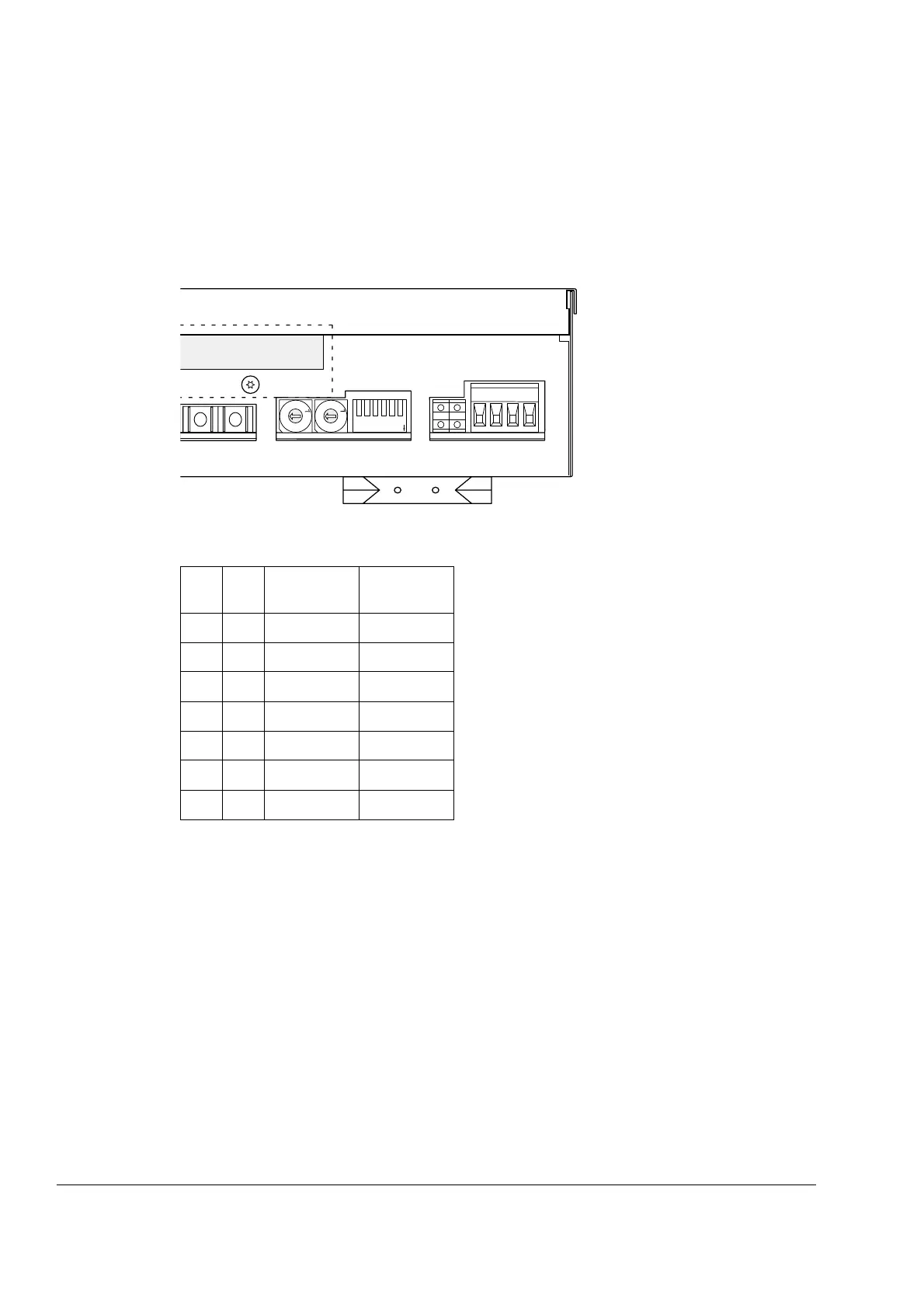

DDCS address setting (S1, S2)
Switches S1 and S2 define a node address for the APBU-44C(E) when it is
connected to a DDCS link (typically a PC).
The DDCS address is the combined value of S1 and S2.
S1 S2 DDCS
address
Notes
0 0 00h –
0 1 01h Default
••• ••• ••• •••
0F 0Fh –
1 0 10h –
••• ••• ••• •••
F F FFh –
9
A
B
8
C
D
E
F
0
1
2
3
4
5
6
9
A
B
8
C
D
E
F
0
1
2
3
4
5
6
1 2 3 4 5 6
D I P O N
B A R C O D E L A B E L
L O G I C V E R S I O N
S1 S2
