MOTORS FOR HEAVY ELECTRICAL VEHICLES
14
The angle between the lifting chains shall be maximum 60°, see Figure 5.

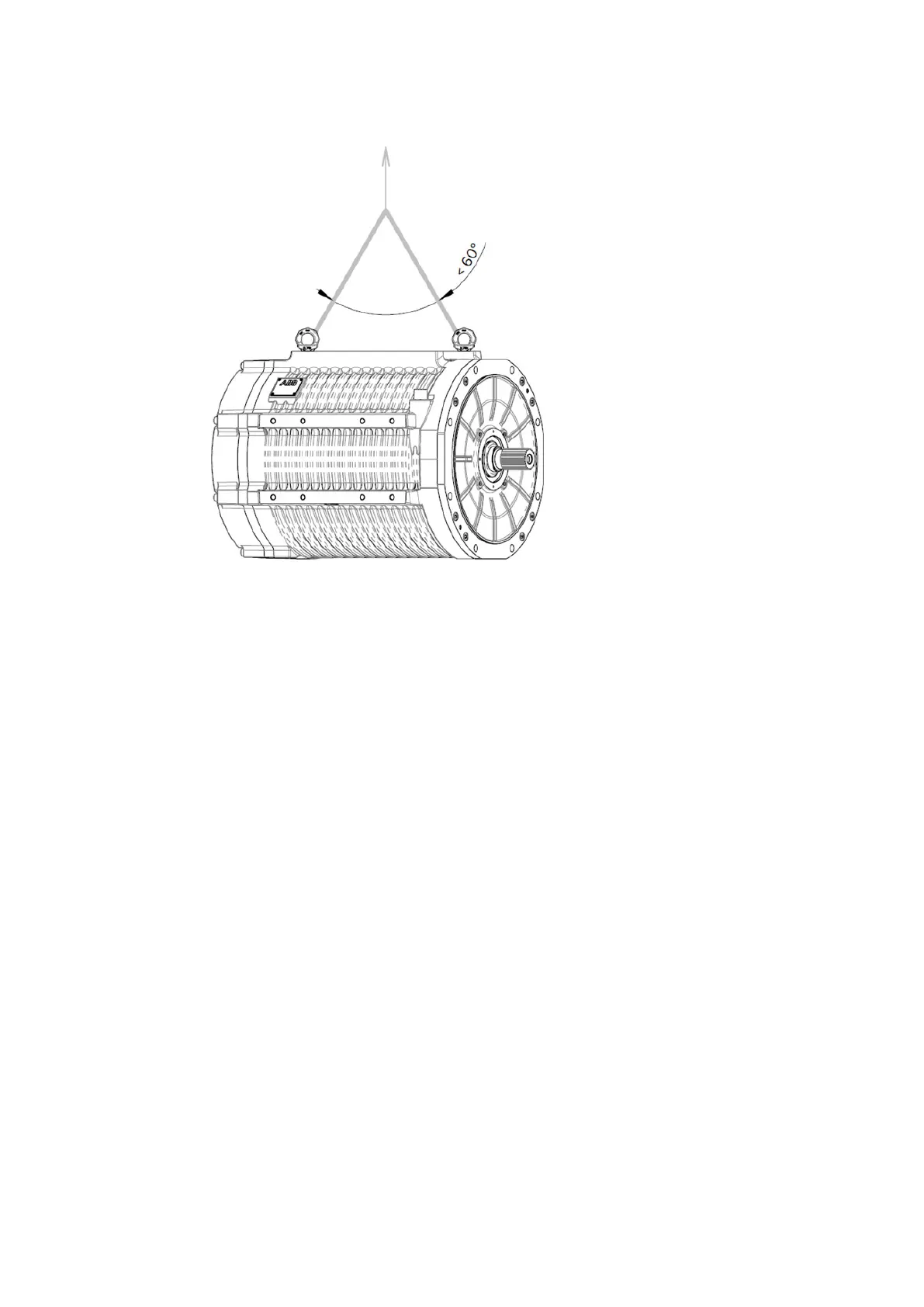

Figure 5. Lifting of the motor.
