10 ANSI MEDIUM VOLTAGE METAL-CLAD DIGITAL SWITCHGEAR
Selection of the crystal ball will take you to the
web page sign on page of the switch. Refer to the
appropriate User’s Manual or Instruction Manual
for the selected Moxa switch to obtain the default
login name and password and enter it here.
(Figure 12)
—

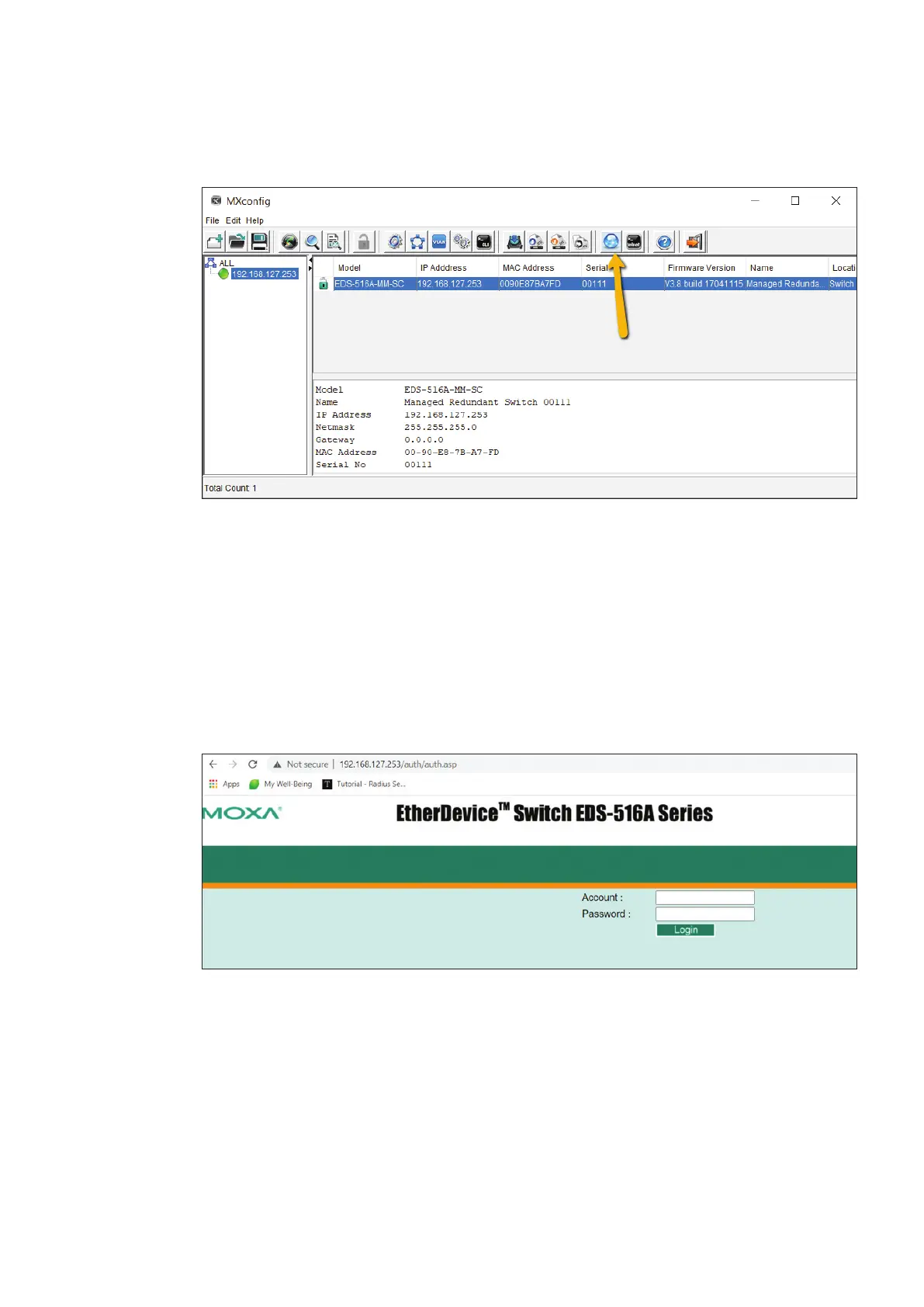

10 Search results
showing the discovered
switch by MXconfig
—
11 Location of
crystal ball
—
12 Moxa login screen
Once the switch is found and displayed in the
properties dialog screen, click on the crystal ball.
(Figure 11)
—
11
—
12
The user-friendly web-based interface of Moxa
switches offers the possibility of operating the
device from any location in the network via a
standard browser such as Mozilla Firefox or
Microsoft Internet Explorer. Being a universal
access tool, the web browser uses an applet
which communicates with the device via the
Simple Network Management Protocol (SNMP).
