COMMISSIONING AND TESTING GUIDE 33
• Step 6/10
On the protection relay LHMI (tested feeder) go
to -> Main Menu/Test/Function tests/ Current
protection
- PHIPTOC1 = Deactivate START
• Step 7/10
On the protection relay LHMI (upstream circuit
breaker) go to -> Main Menu/Monitoring/
I/O status/Current protection/PHIPTOC1/
Inputs
- BLOCK = False
• Step 8/10
On the protection relay LHMI (tested feeder) go
to -> Main Menu/Test/IED tests
- Test mode = Normal mode
- The ready LED is steady ON.
—
65
—
66
—
67
—

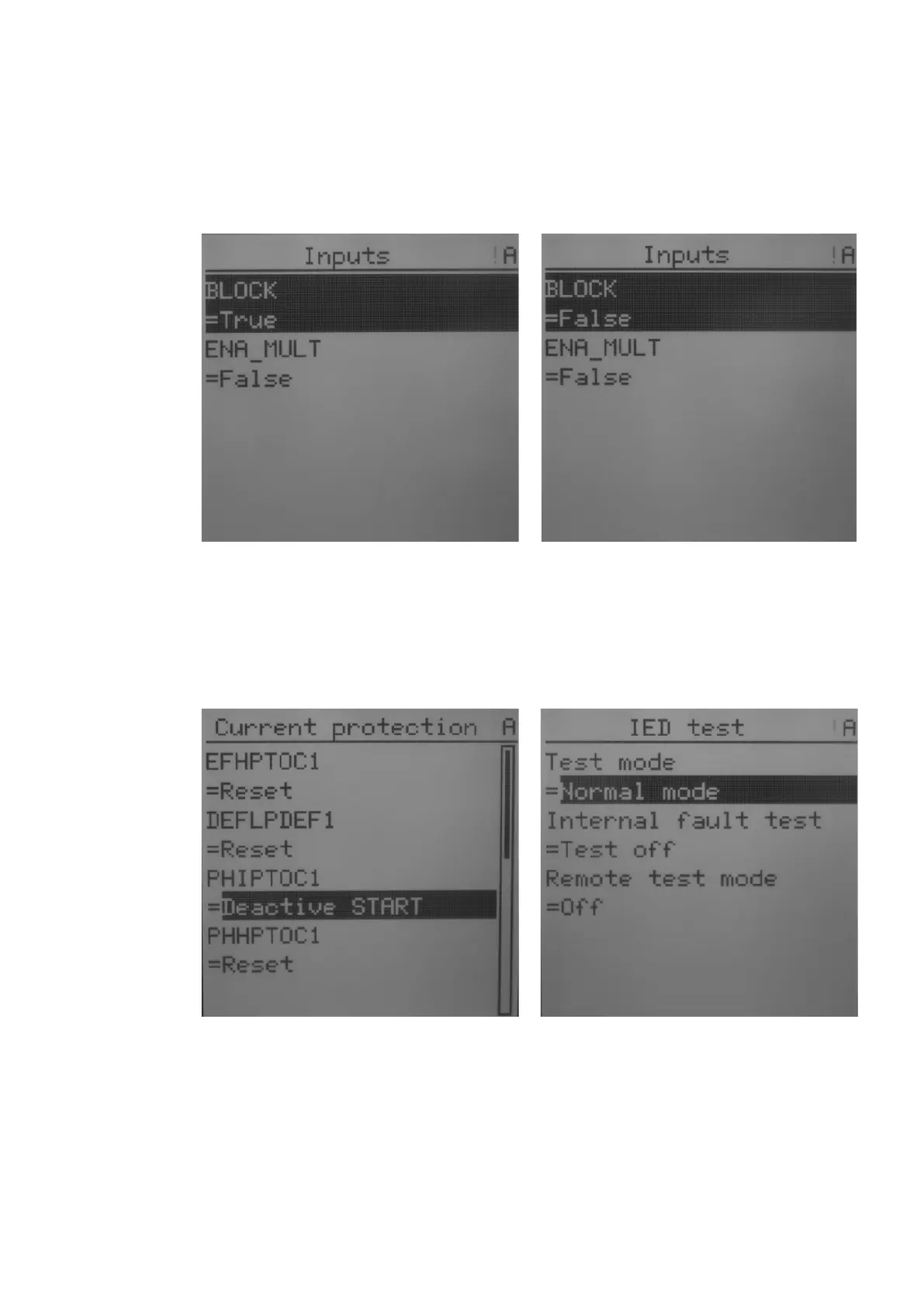

64 Activating
blocking mode
—
65 Deactivating
START signal
—
66 Deactivating
blocking mode
—
67 Entering test mode
• Step 9/10
Repeat steps 3 to 8 for all feeders.
• Step 10/10
On the protection relay LHMI (upstream circuit
breaker) go to -> Main Menu/Test/IED test
- Test mode = Test off
• Step 5/10
On the protection relay LHMI (upstream circuit
breaker) go to -> Main Menu/Monitoring/
I/O status/Current protection/PHIPTOC1/
Inputs
- BLOCK = True
—
64
