44 ANSI MEDIUM VOLTAGE METAL-CLAD DIGITAL SWITCHGEAR

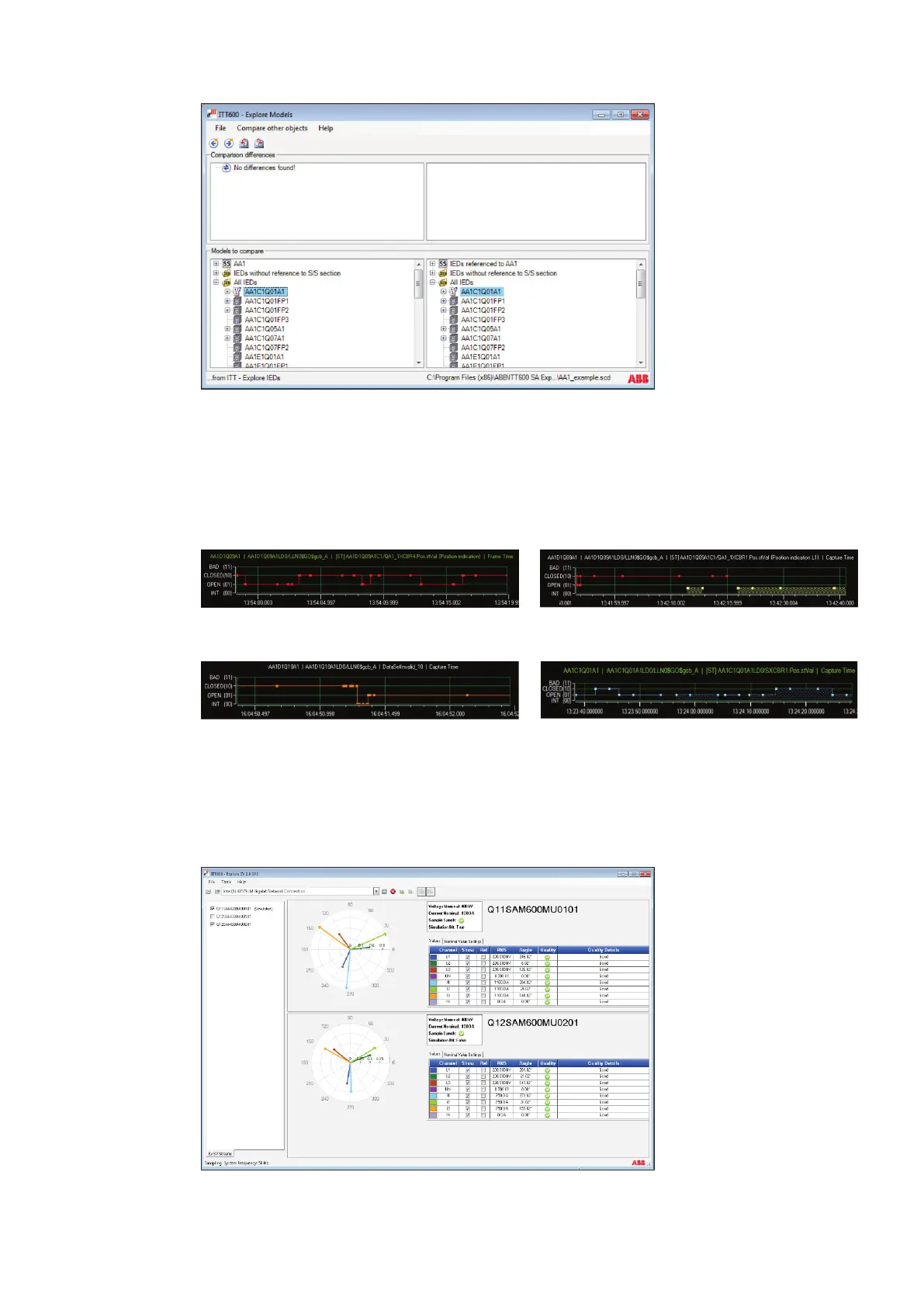

ITT600 – Explore GOOSE visualizes GOOSE data
in an Oscilloscope style. Several individual Data
Attributes sent in GOOSE frames can easily be
compared and measured.
ITT600 – Explore SV visualizes IEC 61850-9-2 LE
data streams using a polar chart. Two different
data streams can easily be visualized and
compared at the same time.
—
92
—
93
—
94
—
95
—
96
This enables faster debugging and
comprehension of distributed application logic
using GOOSE.
The Oscilloscope view shows current and voltage
trends, allowing the user to inspect the content
of each SMV packet.
—
92 One IED on each
side is selected to
be compared
—
93 Red indicates
that configuration
revision check is fine
—
94 indicates that
the check failed
—
95 Bad quality of signals
(Invalid, Questionable or
Reserved) is represented
by a waved brushed style
—
96 Test source of
signals is shown
as brushed area
—
97 ITT600 – Explore
SV – two streams are
selected and the polar
diagrams are shown
—
97
