ABB ANSI User Manual

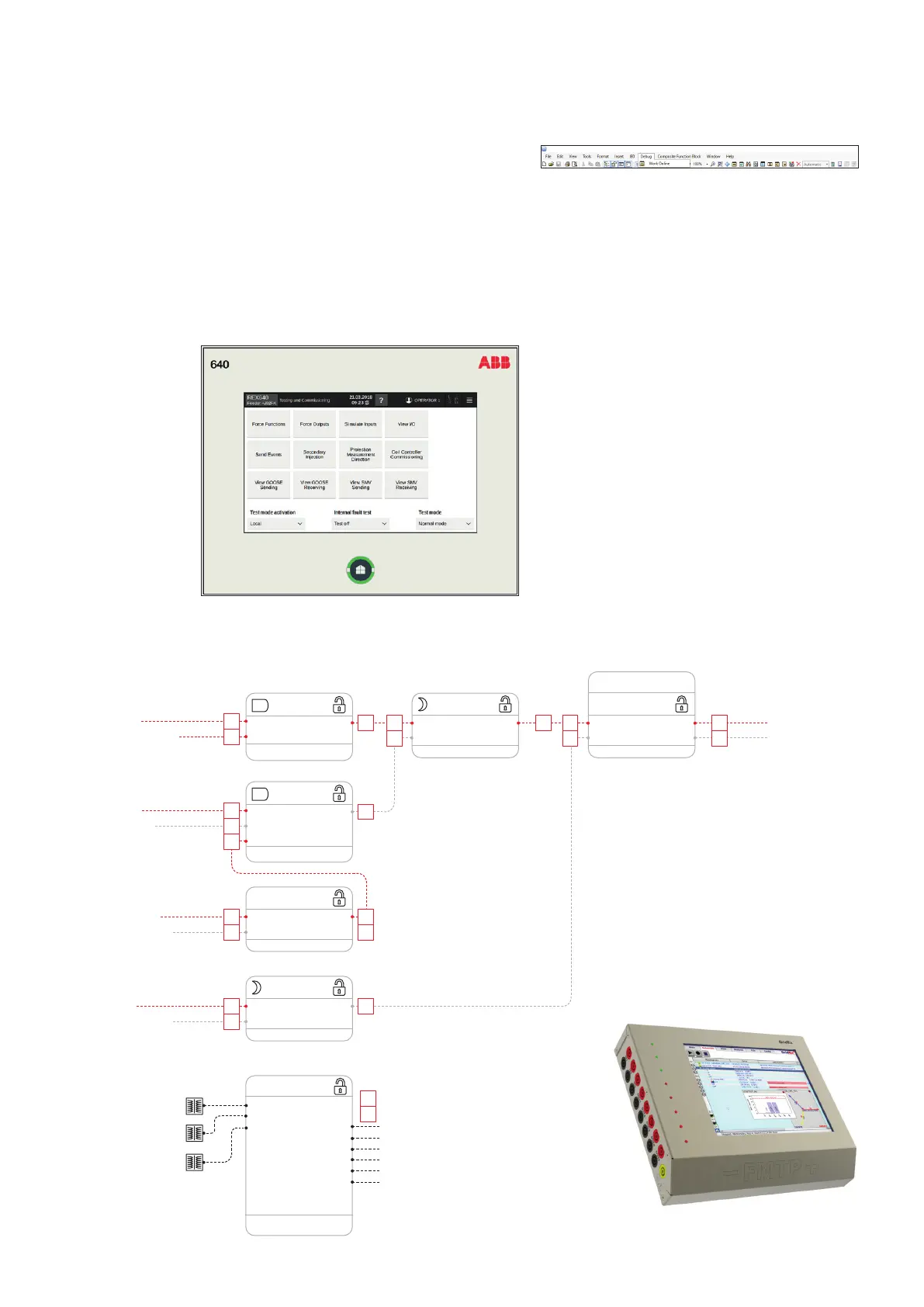

COMMISSIONING AND TESTING GUIDE 45
—
98 Test and
commissioning support
in the local HMI
—
99 PCM600 Online
Monitoring Tool
—
100 GridEx IEC
61850 test tool
Local HMI of 640 series
The LHMI supports the engineer during the relay’s
testing, commissioning, and trouble-shooting
activities. The information, traditionally
accessible through different paths within the
menu structure, is provided in a collectively
grouped and visualized format on the Testing and
Commissioning pages found on the top bar
menu.
Some of the Testing and Commissioning pages
require the relay to be set in test mode.
PCM600 Online Monitoring Tool
This feature enables the user to continuously
monitor the signal/channel values in the
configuration. The connections in the
configuration change from solid line to animated
railing line. The color of the animated railing lines
depends on the signal type and the signal values.
Binary signals can have three colors.
• Blue for value "0"
• Red for value "1"
• Black indicating no status for any other values
Analog signals are set to the green color.
—
98
GridEx® IEC 61850 test tool
GridEx is the test tool for IEC 61850 (GOOSE,
SMV) network troubleshooting and maintenance
manufactured by –FMTP+, no computer is
needed. Refer to www.fmtppower.com for
additional information.
—
100
—
99
System in remote
System in local
SELF_IN_REMOTE
PARTNER_IN_REMOTE_GSE
SYSTEM_IN_REMOTE
SYSTEM_IN_LOCAL
SELF_IN_REMOTE_GSE
PARTNER_IN_LOCAL_GSE
SELF_IN_LOCAL
PARTNER_IN_LOCAL_GSE
SLOT F (AIM).X2-1; 2_CT1
SLOT F (AIM).X2-3; 4_CT2
SLOT F (AIM).X2-5; 6_CT3
I3P_TERMINAL_SIDE
IN_TERMINAL_SIDE_CALC
IN_TERMINAL_SIDE_DR
IA_TERMINAL_SIDE_DR
IB_TERMINAL_SIDE_DR
IC_TERMINAL_SIDE_DR
SELF_IN_REMOTE
PARTNER_RELAY_IRF
1
1 1
1 1 1
1 1
0
0
0
0
1
B1
S Q
O
O
O
NOTQ
B1
B1
AND
SR
OR
AND 6
O:140 T:2.5 I:0
O:104 T:2.5 I:0
O:202 T:2.5 I:0
O:139 T:2.5 I:0
1
0 0
0 0 0
0
0
0
1
B2
R
B2
B2
B3
O
B1
OR TOFGAPC 2 (TOF(2)
LOC/REM TOFF
ILTCTR1
200ms IN1
IL1 ALARM
IRES_CLC_DR
IL3_DR
200ms Q1
200ms Q2
200ms IN2
IL2 WARNING
I3P
IL1_DR
NPS_DR
IL3
IRES_CLC
IL2_DR
PPS_DR
O:201 T:2.5 I:42 O:261 T:2.5 I:2
O:261 T:2.5 I:2
B2
