ABB ATS022 - Page 32

Installation and operating instructions, ATS022
1SDH000760R0002, L4106
32
8. Using automatic transfer switch ATS022
Protection Devices
User can choose whether protection devices is CBs or CBs + Bus Tie. CBs is the default.
Line 1 First
Cancel
Ok
Edit
Line Priority
KA00393
LN1 LN2
KA00374
0,0
0,0
LN1:
1
V
Hz
LN2:
1
0,0
0,0
V
Hz
LN1
LN2
KA00375
0,0
0,0
LN1: 1
V
Hz
LN2: 1
0,0
0,0
V
Hz

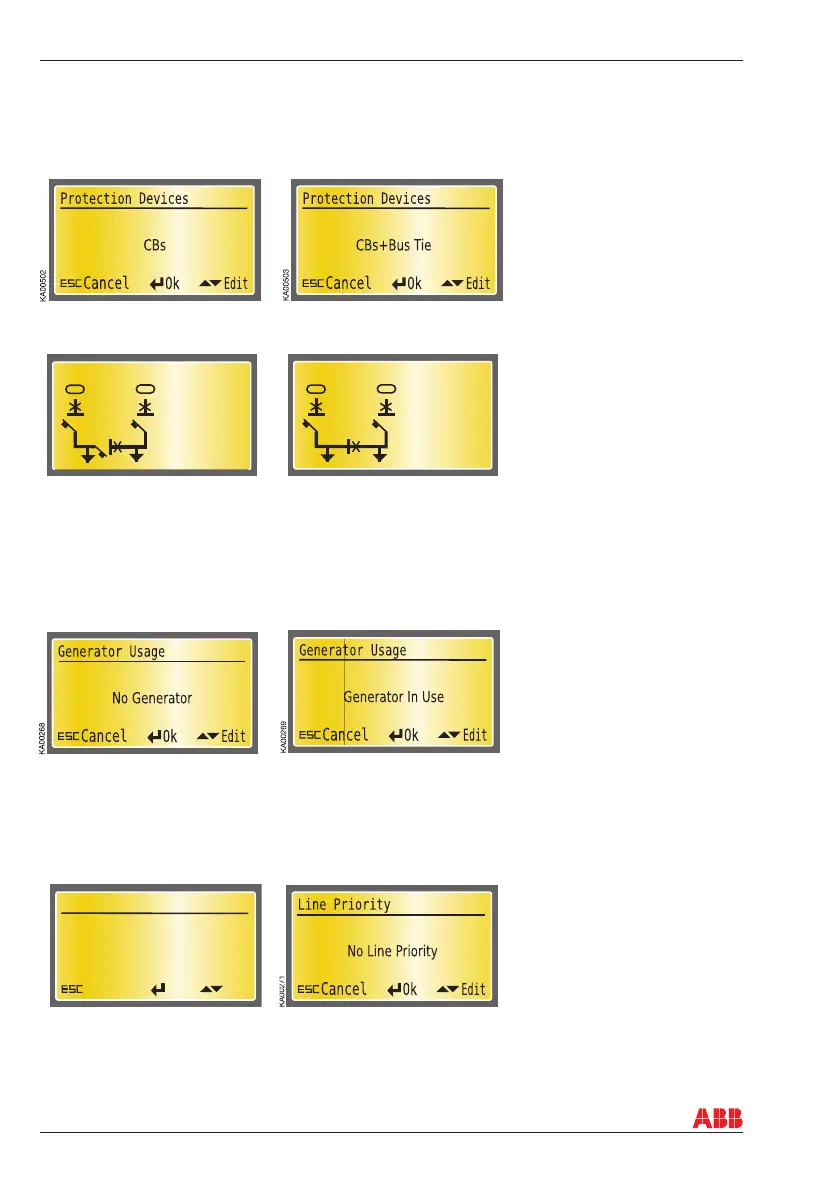

Figure 8.11 Protection Devices, CBs is the default
Figure 8.12 Protection Devices, status is shown as a graphic picture
Generator Usage
User can choose No Generator, when generator is not used or Generator in Use, when it is used in the
Line 2 (LN 2). No Generator is the default.
NOTE: Generator should always be connected to the Line 2 (LN 2).
Figure 8.13 Generator Usage, No Generator is the default
Line Priority
User can select the line priority to the Line 1 (LN 1) (default) or No Line Priority.
NOTE: Line 2 (LN 2) can never have higher priority.
Figure 8.14 Line Priority, Line LN 1 is the default
