CI/AWT440–EN Rev. A 9
4 Sensor EZLink connection
The Aztec AWT440 transmitter is supplied as standard with 2
sensor EZLink connections.
Referring to Fig. 5:
1. Align the pins in sensor cable connector
A with the holes in
EZLink connector
B and push the connectors together.
2. Turn nut
C clockwise to secure the connectors together.
The transmitter detects the type of sensor connected
automatically.
IMPORTANT (NOTE)
Maximum length of cable from transmitter to sensor(s) –
refer to sensor Operating instruction.
IMPORTANT (NOTE)
A single Aztec AWT440 transmitter can monitor the
inputs from up to 4 sensors. Each smart sensor interface
module can accommodate 2 sensors. Therefore, to
monitor 4 sensors, 2 input modules must be fitted to the
transmitter.

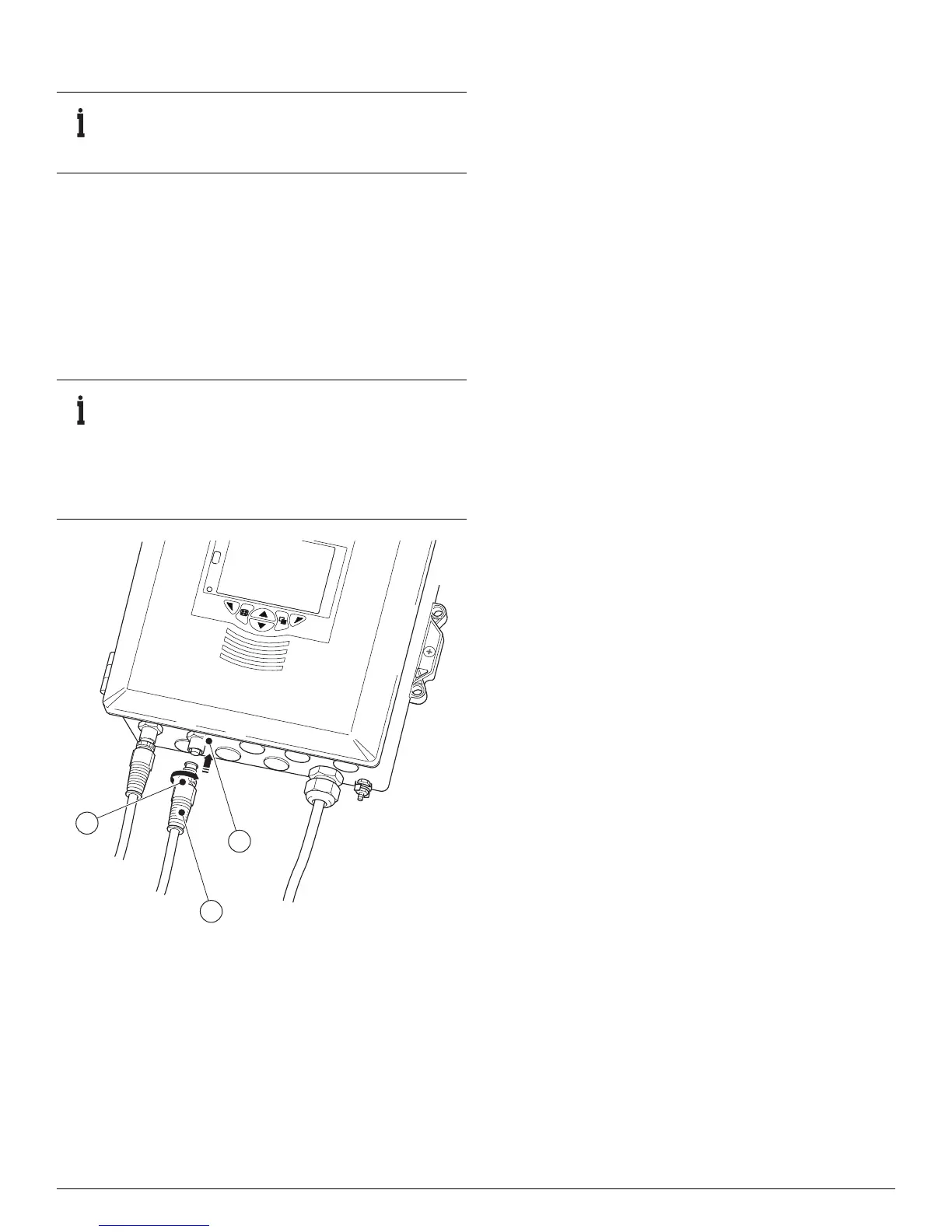

Fig. 5 Connecting the sensor EZLink connectors
