Feedback Devices
Resolver
Common feedback devices for ABB BSM servo motors include Resolver, Incremental
Encoder, and Absolute Encoders. Custom feedback devices are also available.
Contact ABB for more information.

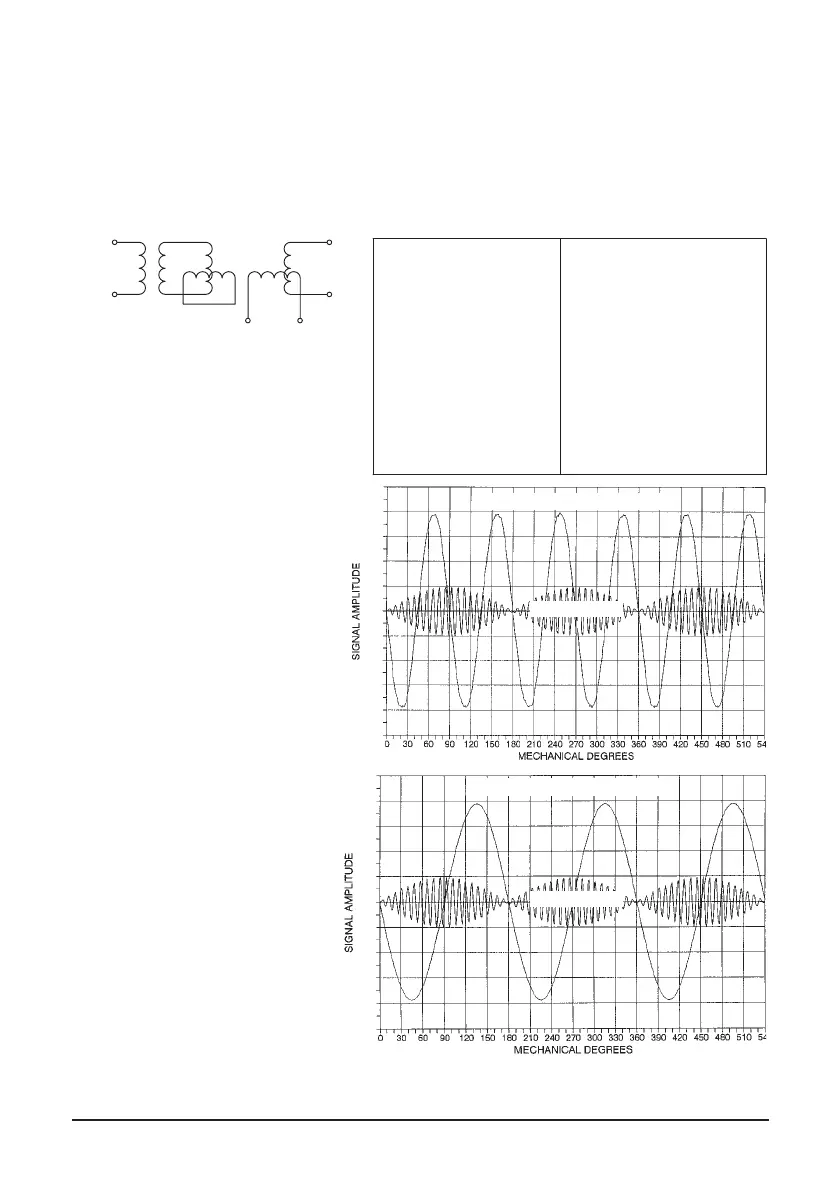

Figure 2-10 Typical Resolver Feedback Device
Waveform 1
8 Pole Motor and
2 Pole Resolver
Waveform 2
4 Pole Motor and
2 Pole Resolver
R1
Red/
White
R2
Yel/
White
S2
Yel
S4
Blu
S1
Red
S3
Blk
Resolver Schematic Diagram
Power Source AC 10Vrms 4.5kHz
Primary Element Rotor
Electrical Error ±7%
Transformation Ratio 0.5 ±10%
Phase Shift ±8° nominal
Accuracy Spread 12 ARC minutes
Input Impedance ZRO 90 + j180 Ω nominal
Output Impedance ZSO 220 + j350 Ω @ 0° (S1−S3)
ZSS 210 + j300 Ω @ 0° (S1−S3)
DC Resistance Rotor 46 Ω REF
Stator 120 Ω REF
Dielectric Strength AC 500 volts, 1 minute 60/50 Hz
Insulation Resistance 100M Ω Minimum DC 500Volts
Weight 0.18kg Maximum
Maximum Operating Speed 10,000 RPM
Operating Temperature Range −55 ° C to +150 ° C
Resolver Specication
L2=Motor lead L2 (V)
L3=Motor lead L3 (W)
L2−L3 Generated Voltage
Cosine Signal
L2−L3 Generated Voltage
Cosine Signal
(Primary)
(Secondary)
