ABB C1900 Series User Manual

7
Frame 1
Frame 2
Frame 3
Frame 4
Page 1
Frame 1
Frame 2
Frame 3
Page 2
Return from
any frame
Lift/Lower pen on alternate operations
Acknowledge any alarm
Auto-tune
Pen lift/lower
Profile ramp soak
Local /Remote
or
Return operator to top of
Operating Page.
Parameter 1
Parameter 2
Op. Page
Parameter 1
Parameter 2
Page X
Parameter 1
Parameter 2
Page X
Auto/Manual key – used for selecting Automatic or Manual
mode on alternate operations.
When manual mode is selected the displays revert
automatically to the process variable values and control
output or valve position (if position-proportioning or
boundless motorized valve control is selected at Control
Type
in the Set Up Control Page ).
Frame 1
Frame 2
Frame 3
Page X
Frame 4
Advance to
next Frame
Adjust
Parameter Value
Parameter X
Y
Z
Select
3DISPLAYS & CONTROLS

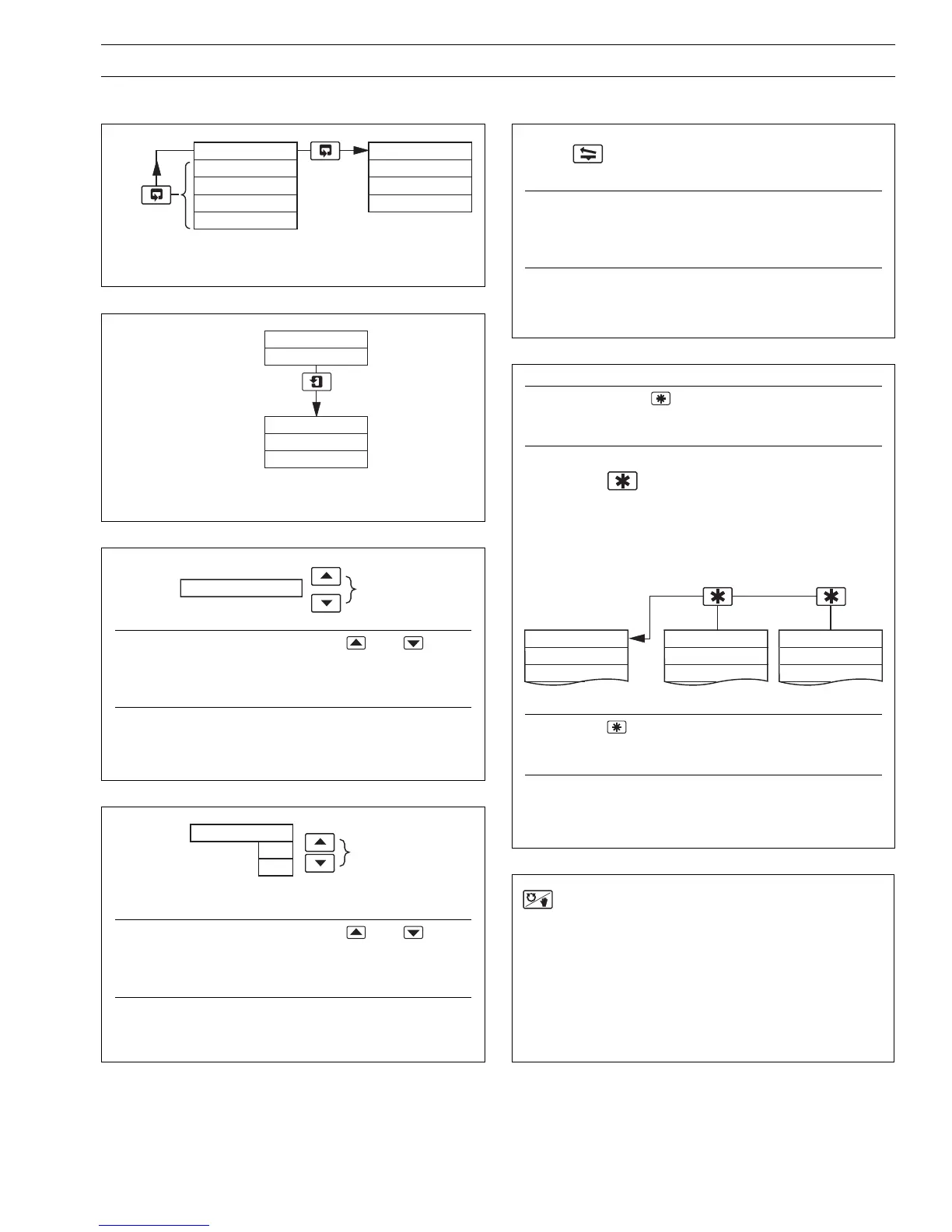

3.2 Use of Controls – Fig. 3.3(a) to (g)
Fig. 3.3(a) Advancing to Next Page
Fig. 3.3(b) Moving Between Parameters
Information. The key is programmed in the Set Up
Function Keys Page, ADVANCED CONFIGURATION
LEVEL.
Note. The key returns the instrument display to the
start of the operating page only when the display is at
the top of any page.
Fig. 3.3(g) Auto/Manual Key FunctionsFig. 3.3(d) Selecting a Parameter Choice
Fig. 3.3(c) Adjusting a Parameter Value
Note. Continued pressure on the and keys
causes the rate of change of the displayed value to
increase. To make small adjustments operate the keys
momentarily.
Note. Continued pressure on the and keys
causes the rate of change of the displayed value to
increase. To make small adjustments operate the keys
momentarily
Fig. 3.3(e) Lifting/Lowering the Pens
Note. If 'Auto Pen Drop' is selected in the Set Up Chart
Page, BASIC CONFIGURATION LEVEL
, the pens return
automatically to their operating positions after a five
minute delay.
Fig. 3.3(f) Selecting Programmable Functions
