3.3.3 Fitting an AquaMaster Sensor Socket
To fit an AquaMaster sensor socket:
1. Turn off the power to the AquaMaster and remove the covers – see Section 3.3.2, page 12.
2. Disconnect and withdraw the sensor cable A.
3. Remove and discard the gland B.
4. Feed the socket lead into the AquaMaster and fit the socket (MGFA0609-S) C.
5. Connect the sensor cable D.
6. Replace the covers – see Fig. 3.7, page 12.

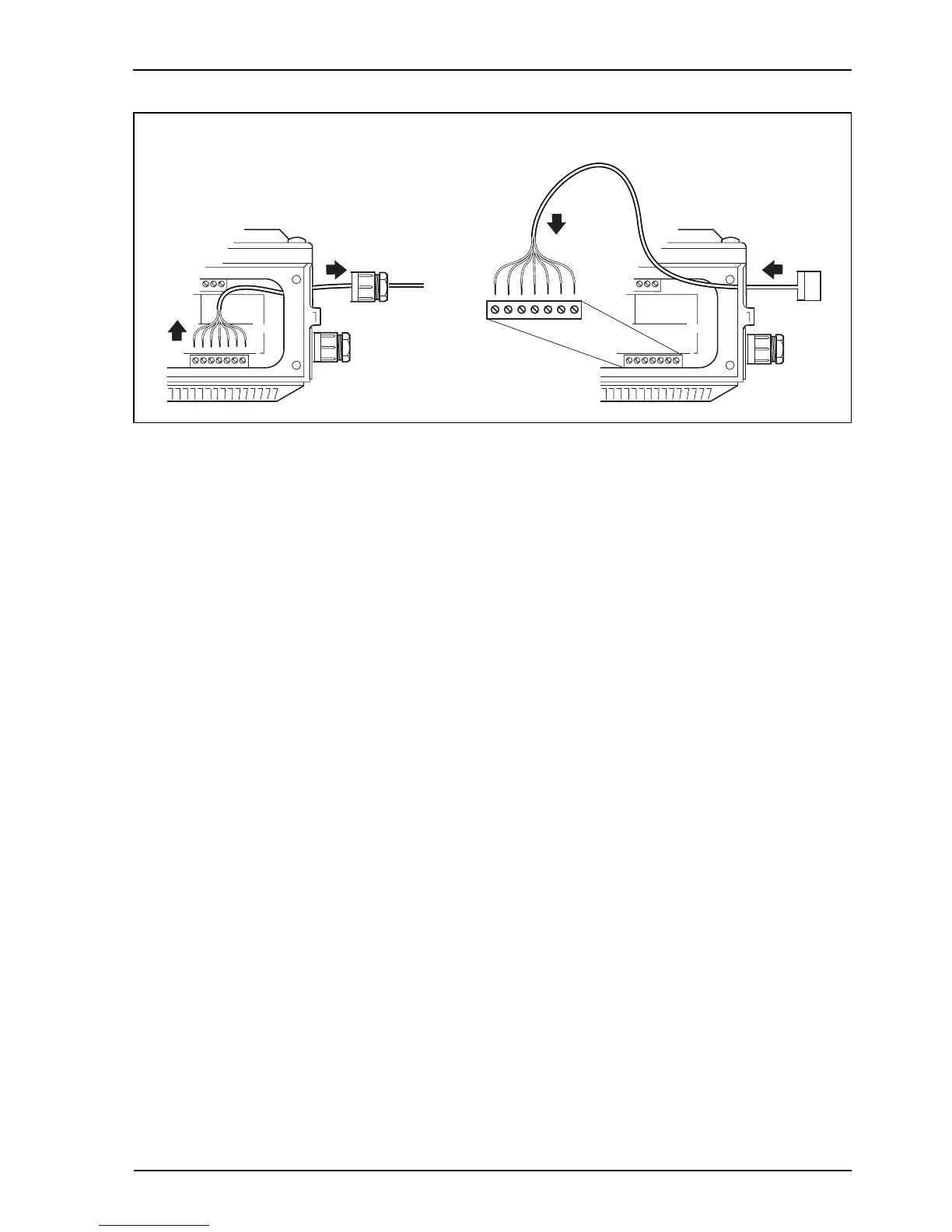

Fig. 3.8 Fitting an AquaMaster Sensor Socket
17
B
A
C
D
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Brown
Red
Orange
Yellow
Green
Blue
Violet
