…1 Health & Safety

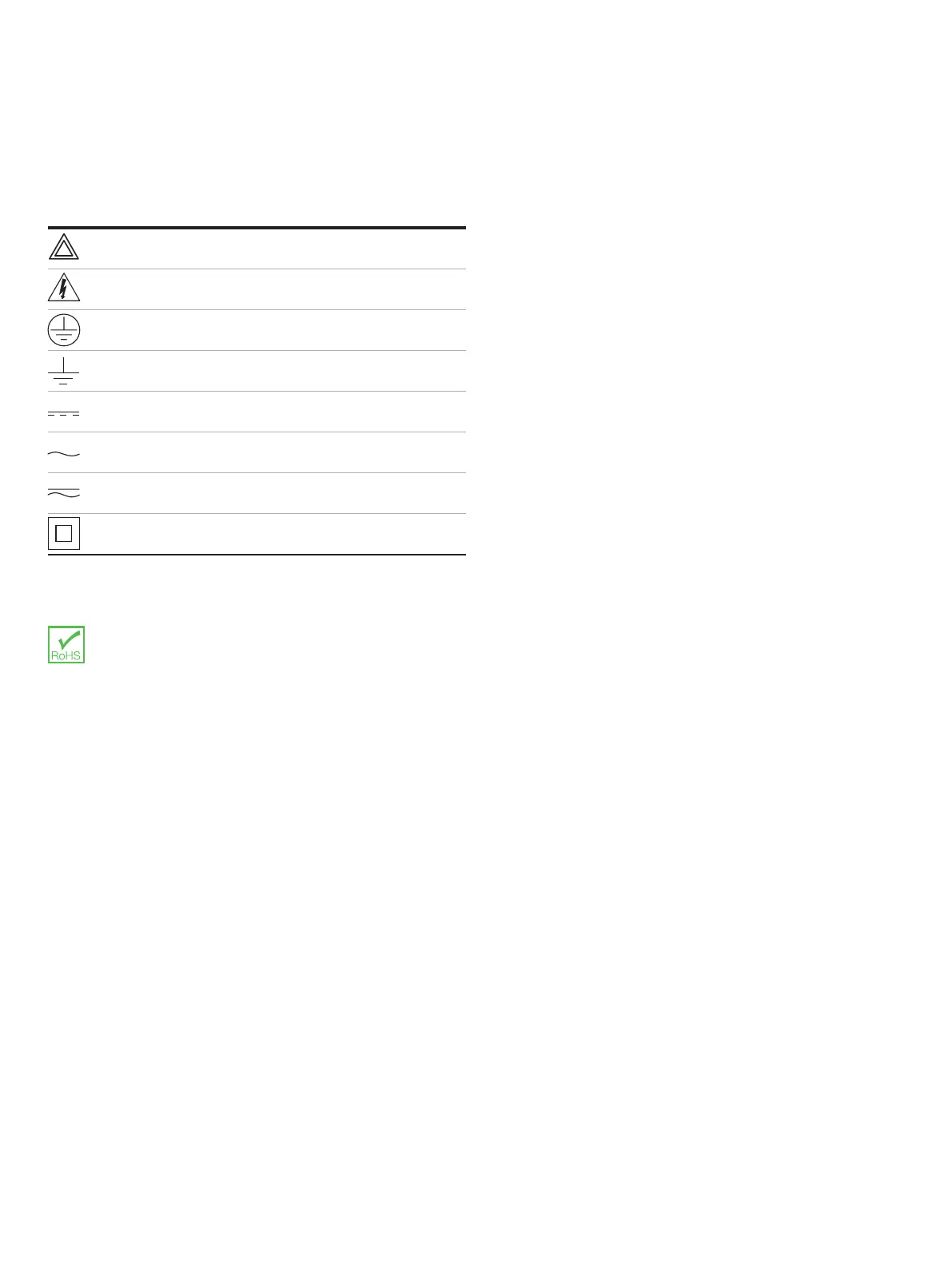

Symbols
One or more of the following symbols may appear on the
equipment labelling:
Warning – refer to the manual for instructions
Caution – risk of electric shock
Protective earth (ground) terminal
Earth (ground) terminal
Direct current supply only
Alternating current supply only
Both direct and alternating current supply
The equipment is protected through double insulation
Restriction of Hazardous Substances (RoHS)
The European Union RoHS Directive and subsequent
regulations introduced in member states and other
countries limits the use of six hazardous substances
used in the manufacturing of electrical and electronic
equipment. Currently, monitoring and control
instruments do not fall within the scope of the RoHS
Directive, however ABB has taken the decision to
adopt the recommendations in the Directive as the
target for all future product design and component
purchasing.
2 Specification
Mechanical data
Protection
IP66/ NEMA 4X
Dimensions
Height – 368.8 mm (15.23 in)
Width – 382 mm (15.04 in)
Depth behind panel – 141.5 mm (5.57 in)
Materials of construction
Case – Glass fiber-filled polycarbonate
Window – Polycarbonate
Weight
Approx. 6.6 kg (14.55 lb)
Electrical
Power supply range
100 to 240 V AC ±10 % (90 V min. to 264 V AC max.)
50/60 Hz
Power consumption
<30 VA (typical for full specification unit)
Inputs/outputs
Universal analog inputs
• Up to 4 standard (C1901 – 1 only)
• Up to 2 optional
Analog outputs
• Up to 4 standard (not applicable to C1901)
•
Relay outputs
• Up to 4 standard (not applicable to C1901)
• Up to 8 optional (2 × 4-relay module)
• Fully programmable – contacts rated at 5 A @ 240 V
Digital inputs (not applicable to C1901)
• 2 standard per input module, 8 per option module.
• Minimum pulse duration 250 ms
• Volt-free
• TTL
Digital outputs (not applicable to C1901)
• 5 V TTL
• 5 mA per output
Environmental data
Ambient operating temperature
• 0 to 55 °C (32 to 130 °F)
Ambient operating humidity
5 to 95 % RH (non-condensing)
5 to 80 % (chart only)
Approvals, certification & general safety
• CSA general safety
• UL general safety
• CSA/FM Class 1 Div 2
Emissions and Immunity
• EN 50081-2
• EN 50082-2
• IEC 61326 for an industrial environment
• CE Mark
To Next Page
