6 C1900 | CIRCULAR CHART RECORDER | CI/C1900/REC-EN REV. B
…3 Installation
Mounting
The C1900 is designed for panel-, wall- or pipe-mounting. To
achieve the NEMA4X hose-down rating, the instrument must be
installed in accordance with the procedures in Figure 3, Figure 4
and Figure 5.
Dimensions in mm (in)
281.0
(11.06)
376.3 (14.81)
1
2
3
4
Secure mounting brackets (4) to case
Mark fixing centers on wall (4)
Drill suitable
holes (4)
Secure instrument to wall using suitable fixings

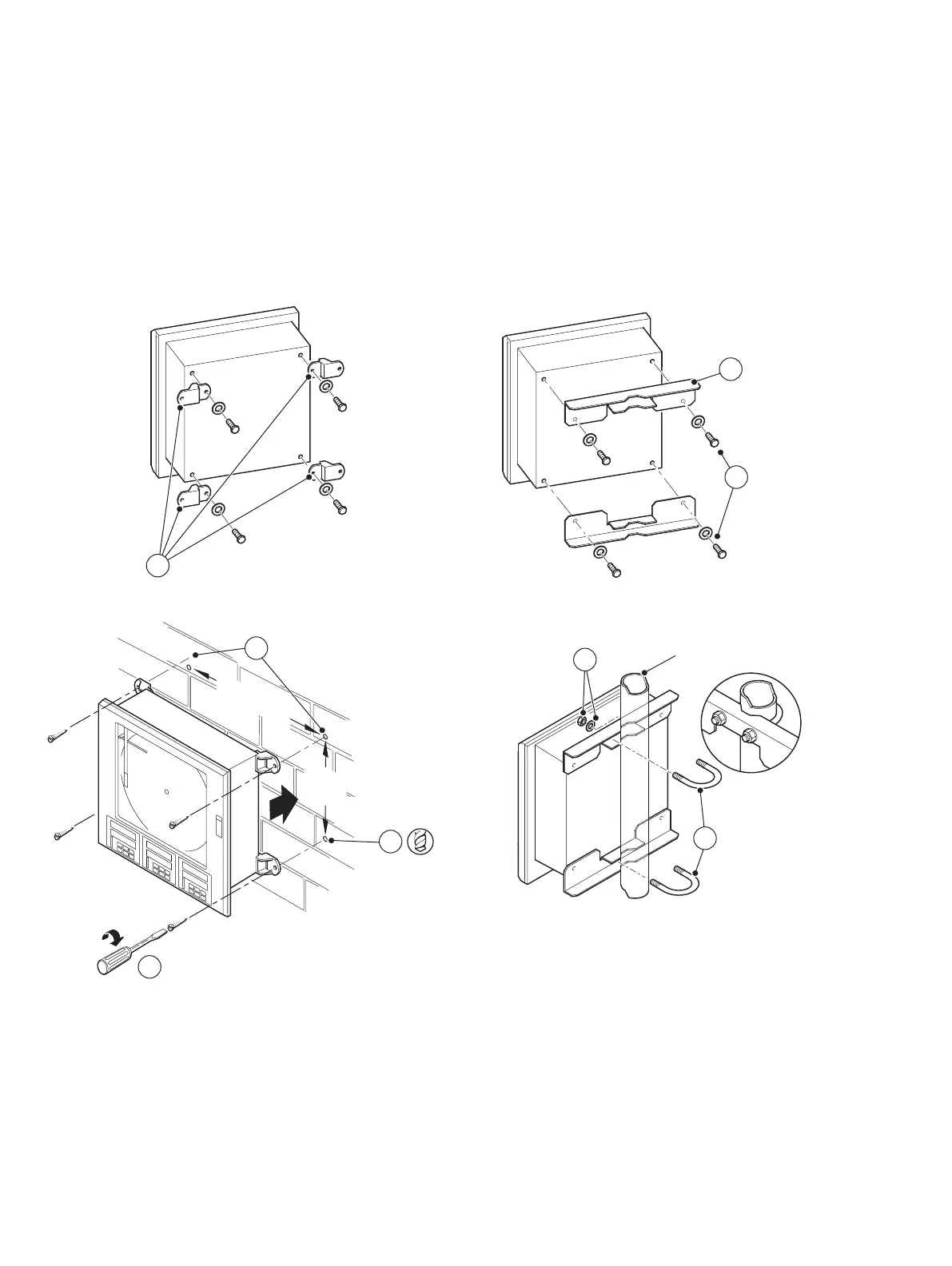

Figure 3 Wall-mounting (optional)
1
2
3
4
Position mounting
brackets to suit horizontal
pipe-mounting or vertical
pipe-mounting as
required
Secure mounting
brackets to case using
bolts and washers
Secure using two nuts
and washers
Fit 'U' bolts into brackets
horizontal or vertical pipe
Figure 4 Pipe-mounting (optional)
