C1900 | CIRCULAR CHART RECORDER | CI/C1900/REC-EN REV. B 7
323.1 (12.72)
minimum
348.0 (13.7)
maximum
285.8
(11.25)
355.6 (14.00)
360.4
(14.19)
16.25 (0.64)
3.8 (0.15) minimum
3.8 (0.15) minimum
43.2
(1.70)
5.0
(0.20)
1
2
3
4
5
323.1
(12.72)
minimum
371
(14.6)
maximum
Cut hole in panel
(see Note 1 below)
Optional gasket
(see Note 2 below)
Locate instrument
in cut-out
Secure in panel using 4 bolts,
washers and nuts
Ensure cut-out positioned centrally
between mounting holes
Minimum cut-out dimensions
Maximum cut-out dimensions
Mark 4 mounting holes
Drill 4 suitable holes
4 holes 0.281 dia or
tap for ¼ in thread
Notes.
1 The instrument can be inserted into a panel cut-out of
any size between the minimum and maximum
dimensions illustrated, provided the cut-out is
positioned centrally relative to the fixing holes. If the
panel cut-out is larger than the maximum, a locally
manufactured adaptor plate will be required.
2 If panel-mounting to NEMA 4X hosedown standard is
required, a continuous bead of suitable silicon sealant
must be applied beween the case flange and the panel.
Do not use the optional gasket.

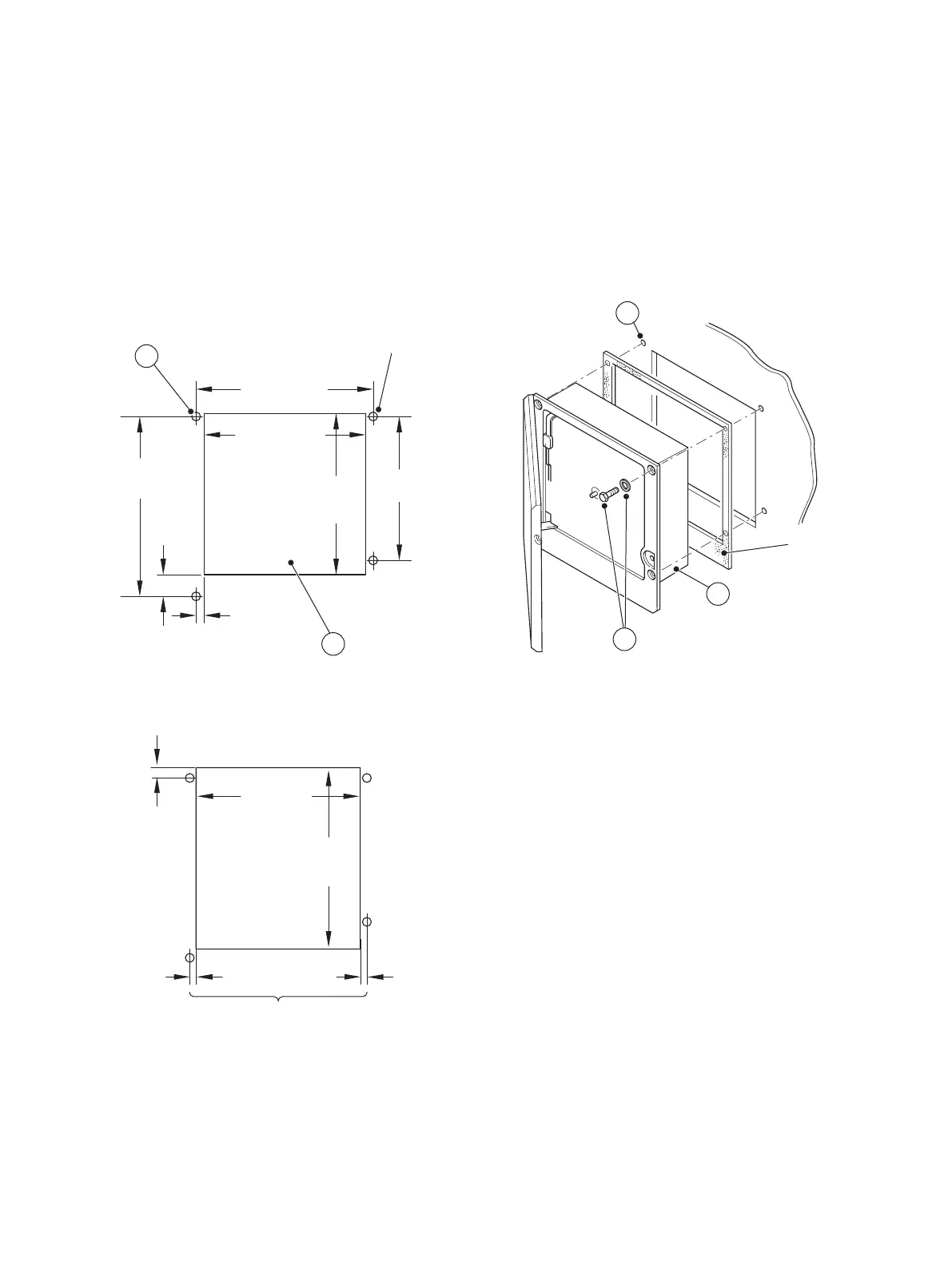

Figure 5 Panel-mounting
