CoriolisMaster FCB400, FCH400 CORIOLIS MASS FLOWMETER | OI/FCB400/FCH400-EN REV. E 129
FillMass batch function
Only for FCB450 / FCH450
1 Supply tank
2 Sensor
3 Start / stop fill operation (digital input or field bus)
4 Fill valve
5 Filling tank
Start Start of the filling process via field bus or digital input
DO State of the digital output for the fill valve
Q Flow rate
VO Valve open (filling started)
VC Valve closed (fill quantity reached)
t
1
Valve closing time
t
2
Overrun time

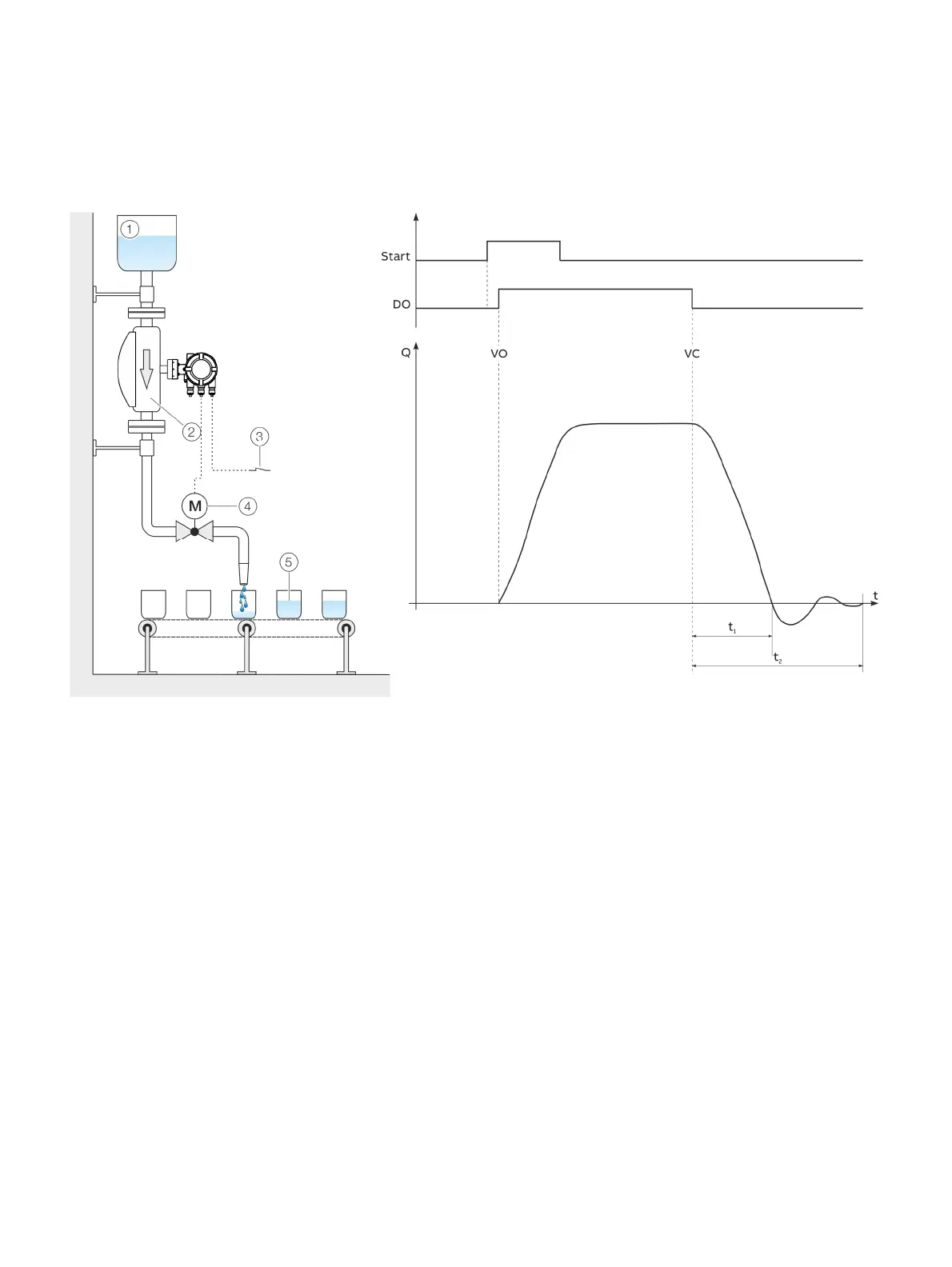

Figure 65: FillMass fill function
The integrated FillMass fill function allows filling processes with filling times of > 3 seconds.
For this purpose, the filling quantity is given via an adjustable totalizer.
The fill function is controlled via the HART interface or via the digital input.
The valve is triggered via one of the digital outputs and closed again once the preset filling quantity is reached.
The transmitter measures the overrun quantity and calculates the overrun correction from this.
Additionally, the low flow cut-off can be activated if required.
