Dual- compartment housing
A Integral mount design
B Remote mount design
C Transmitter, terminal space,
signal cable

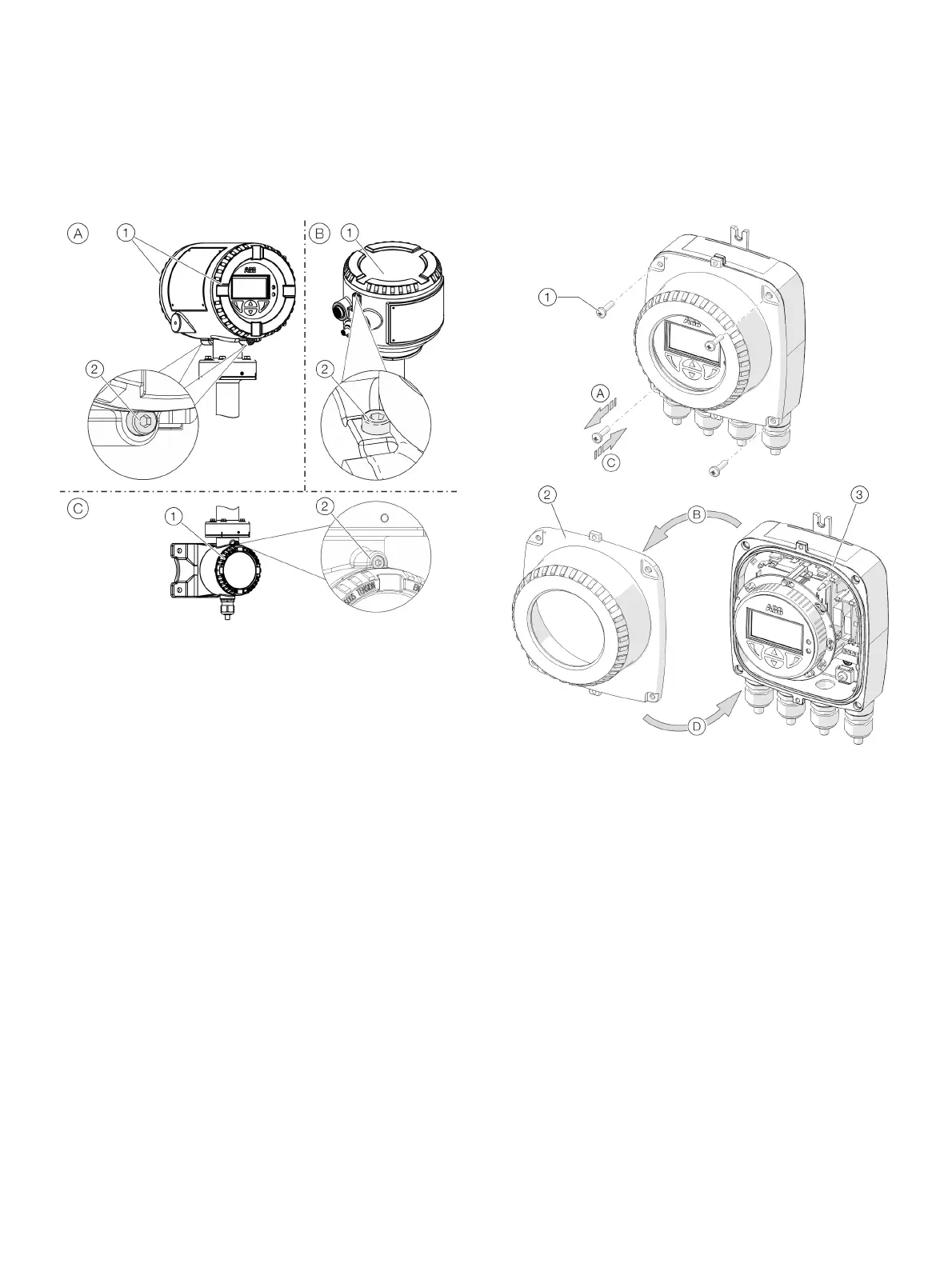

Figure 22: Cover lock (example)
Open the housing:
1. Release the cover lock by screwing in the Allen screw
2.
2. Unscrew cover
1.
Close the housing:
1. Screw on the cover
1.
2. After closing the housing, lock the cover by unscrewing
the Allen screw
2.
Single-compartment housing
1 Cover screws
2 Transmitter housing cover
3 Gasket
Figure 23: Open / close single-compartment housing
Open the transmitter housing:
Perform steps
A and B.
Close the transmitter housing:
Perform steps
C and D.
