24 EBN853, EBN861 (Contrac) 42/68-830-EN
5.3.2 Downstream from step controller

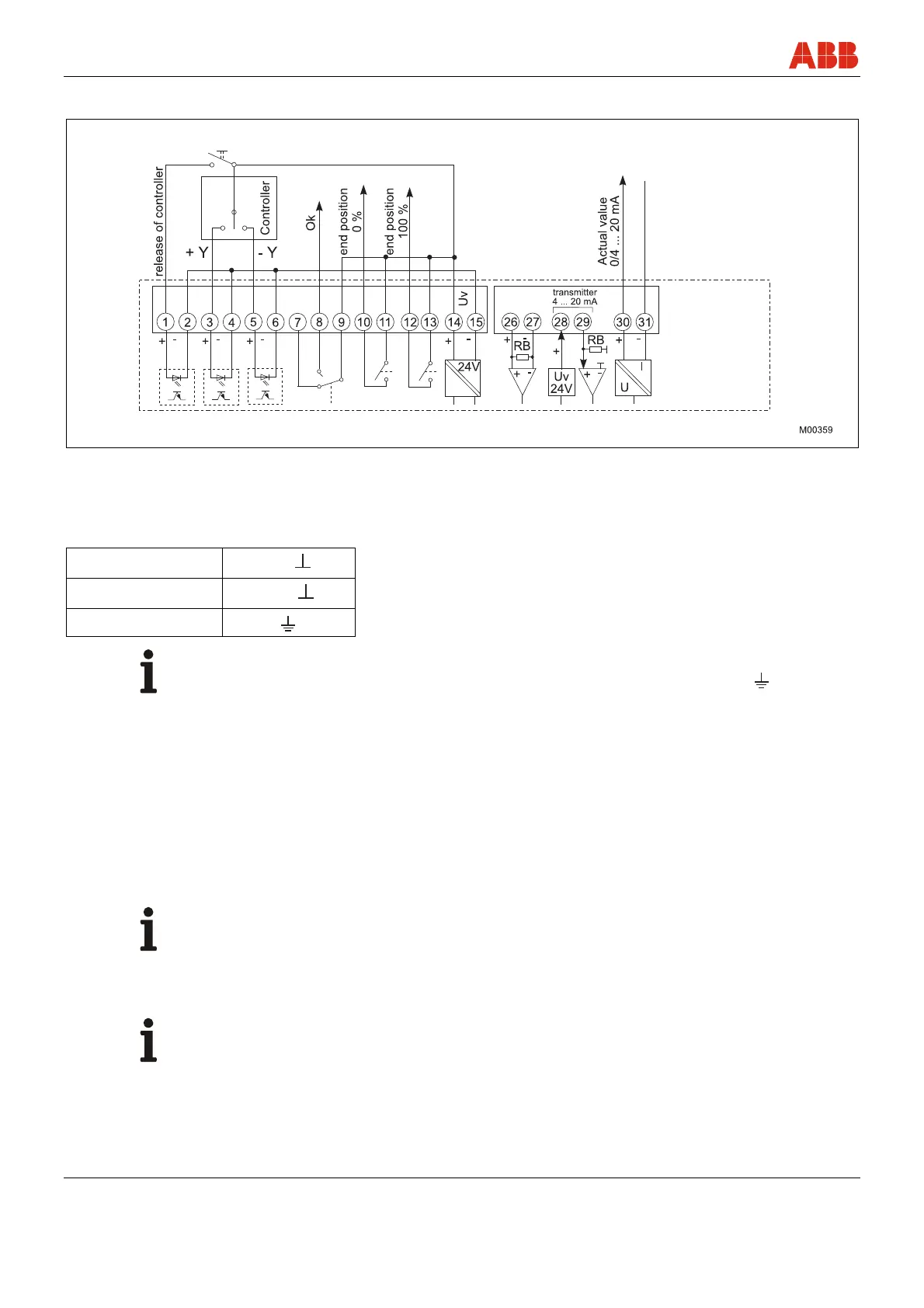

Fig. 17: Potential wiring for "Downstream from step controller" operation
Positions for the potential switch
(See page 25 Fig. 18: pos. 8)
Name:
INT
Position A:
SYS
Position B:
Important
In this operating mode, the switch for the reference potential must be in position
.
Pos: 13 /======= Seitenumbruch ======== @ 0\mod_112 6532365768_3101.doc @ 3830
Pos: 14.1 /Überschri ften/1/J - L/Lokale Bedi enung @ 1\mod_11443112918 28_3101.doc @ 5751
6 Local operation
Pos: 14.2 /Überschri ften/1.1/1-spa ltig/A - C/Allgemeine Inf ormationen zur Bedienung @ 7\ mod_1167724521984_31 01.doc @ 53616
6.1 General information on operation
Pos: 14.3 /Konfigur ation, Parametrierung/ Aktorik/Antriebe/ Contrac/Loka le Bedienung/Allgemeine I nformationen zur Bedi enung @ 7\mod_1166523369 281_3101.doc @ 53108
The basic settings "Define end positions" and "Initial diagnosis" can be configured via the
commissioning and service field (ISF). It can be used to adjust the actuator to the working area
and set the direction without using a PC. The actuator can be further parametrized using a
graphic user interface.
Important
The commissioning and service field is located on the electronic unit.
Pos: 14.4 /Konfigur ation, Parametrierung/ Aktorik/Antriebe/ Leistungselektr oniken/EBN853, EBN8 61/Hinweis ECOM688 @ 17\ mod_1199701769718_3101. doc @ 149843
Important
Observe the information about using the engineering software Save & Restore or ECOM688 in
chapter 2.2.
