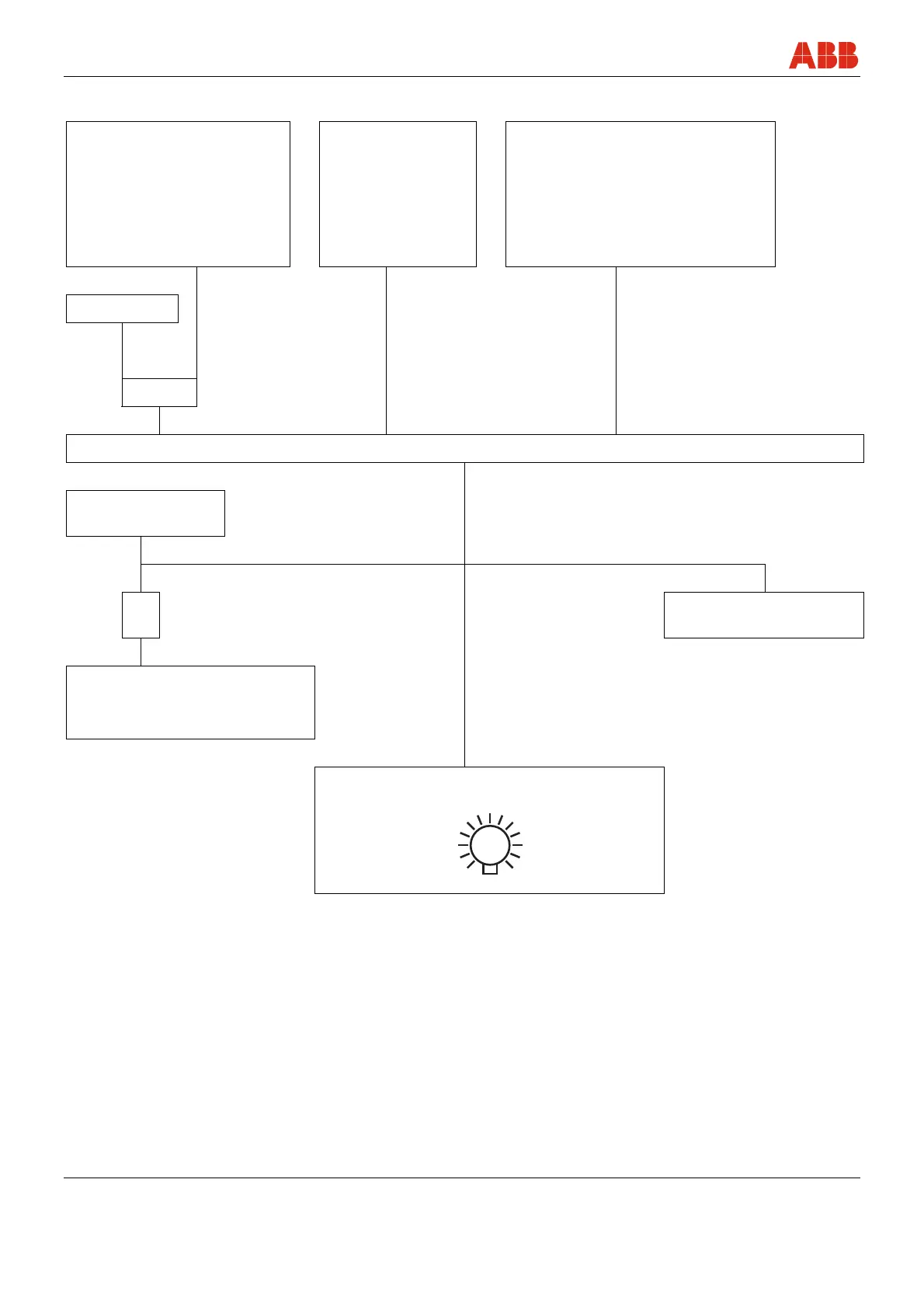

8.3 Error diagram
Pos: 17.8 /Fehlermeldu ngen/Aktorik/An triebe/Leistungsel ektroniken/Allge mein/Fehler Schema @ 13\ mod_1191916378062_3101. doc @ 128588
Positioning time-out Hardware
Monitoring
Software Monitoring
- Standstill
- Min. speed
- Movement in incorrect
direction
Frequency converter
end positions
Position sensor memory error Flash
error
RAM error
Watchdog monitoring activated
Monitoring ON
&
Error signal
Error message via
actual value ON
& Saved Fairure (Reset
Option)
Analog output
1 ... 3.5 mA with "Low alarm"
21.5 ... 25 mA with "High alarm"
General Fairure Display ON
