Electrical connection
42/68-830-EN EBN853, EBN861 (Contrac) 23

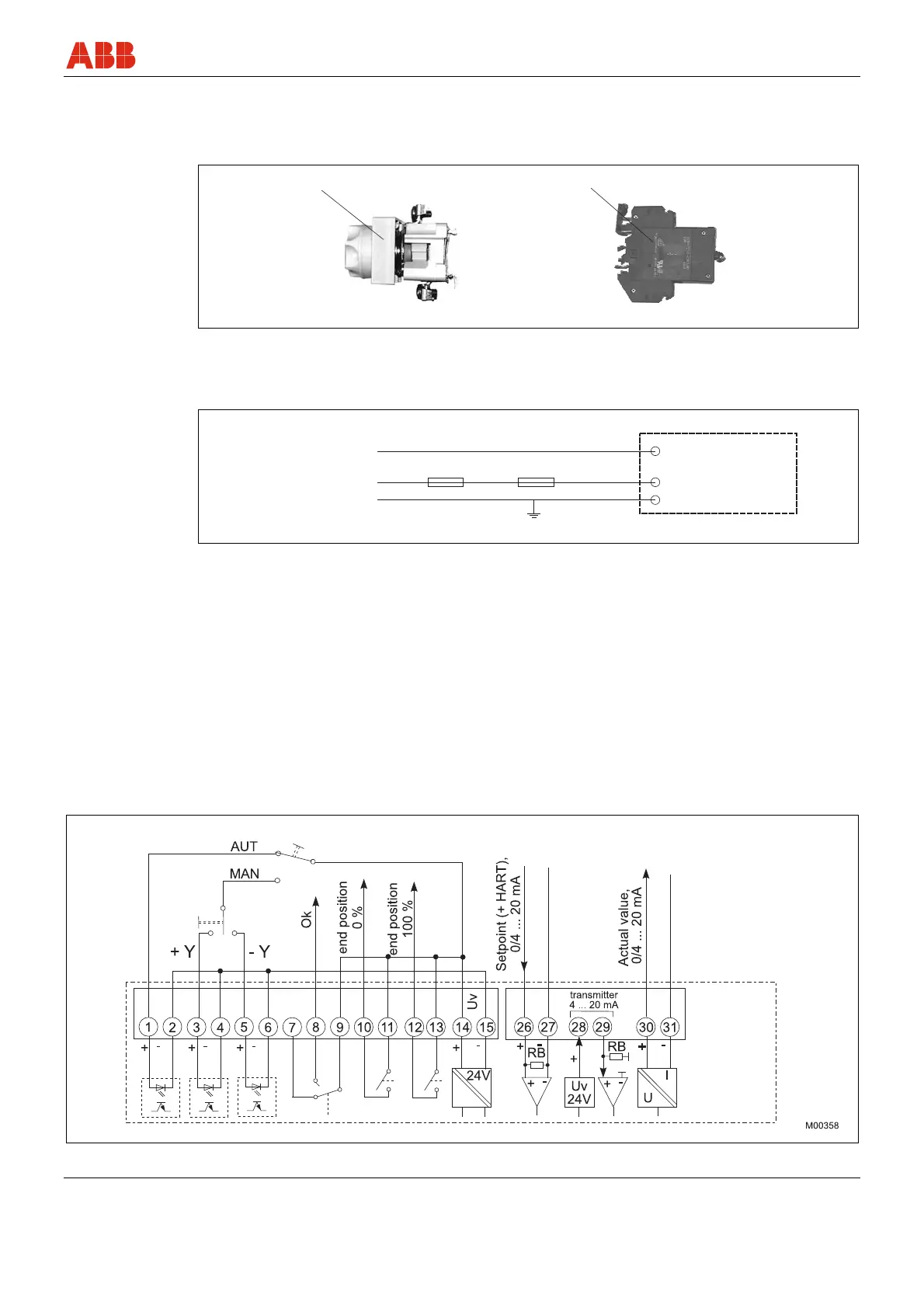

5.2.3 External fuse for EBN861
In addition to the internal fuses, the EBN861 power electronic unit needs two other external
fuses, which are delivered separately with the module.
1
2
M00356
Fig. 14
1 External fuse: 35 A
2 External fuse: 16 A
N
L
PE
35 A
16 A ( )J
AC 230 V 1~
M00357
Fig. 15
Pos: 12.21 /Überschri ften/1.1/1-spa ltig/J - L/Konfigur ation der Binärsignal Ein- / Ausgänge @ 13\mod_11919328 43203_3101.doc @ 1289 89
5.3 Configuration of digital input/output signals
Pos: 12.22 /Elektri scher Anschluss/Aktor ik/Antriebe/Lei stungselektronike n/EBN853, 861/Vorr aussetzung Binärsi gnal @ 13\mod_11919322 42484_3101.doc @ 128943
To control the actuator via digital input 1, the unit must be switched to AUTO mode:
- The digital inputs can be enabled via the user interface in the configuration software
(standard configuration).
- AUT can be enabled via the user interface in the configuration software (standard,
factory-default configuration)
Pos: 12.23 /Elektri scher Anschluss/Aktori k/Antriebe/Lei stungselektronike n/EBN853, 861/Zeic hnungen Verdrahtung @ 13\ mod_1191932471734_ 3101.doc @ 128966
5.3.1 Standard
Fig. 16: Potential wiring for default assignments
