ABB Emax 2 User Manual

(11)
RF Env2(E,M)-W 1600 VR 3p->E4.2-A 1600
TERMINALE INFERIORE
LOWER TERMINAL
UNTERE ANSCHLUSS
BORNE INFÉRIEUR
TERMINALES INFERIOR
TERMINALE SUPERIORE
UPPER TERMINAL
OBERE ANSCHLUSS
BORNE SUPÉRIEURE
TERMINALES SUPERIOR
15
20.5Nm(181 lb-in)
2B
2C
206
207
208
206
207
208
20.5Nm(181 lb-in)
2B
2C

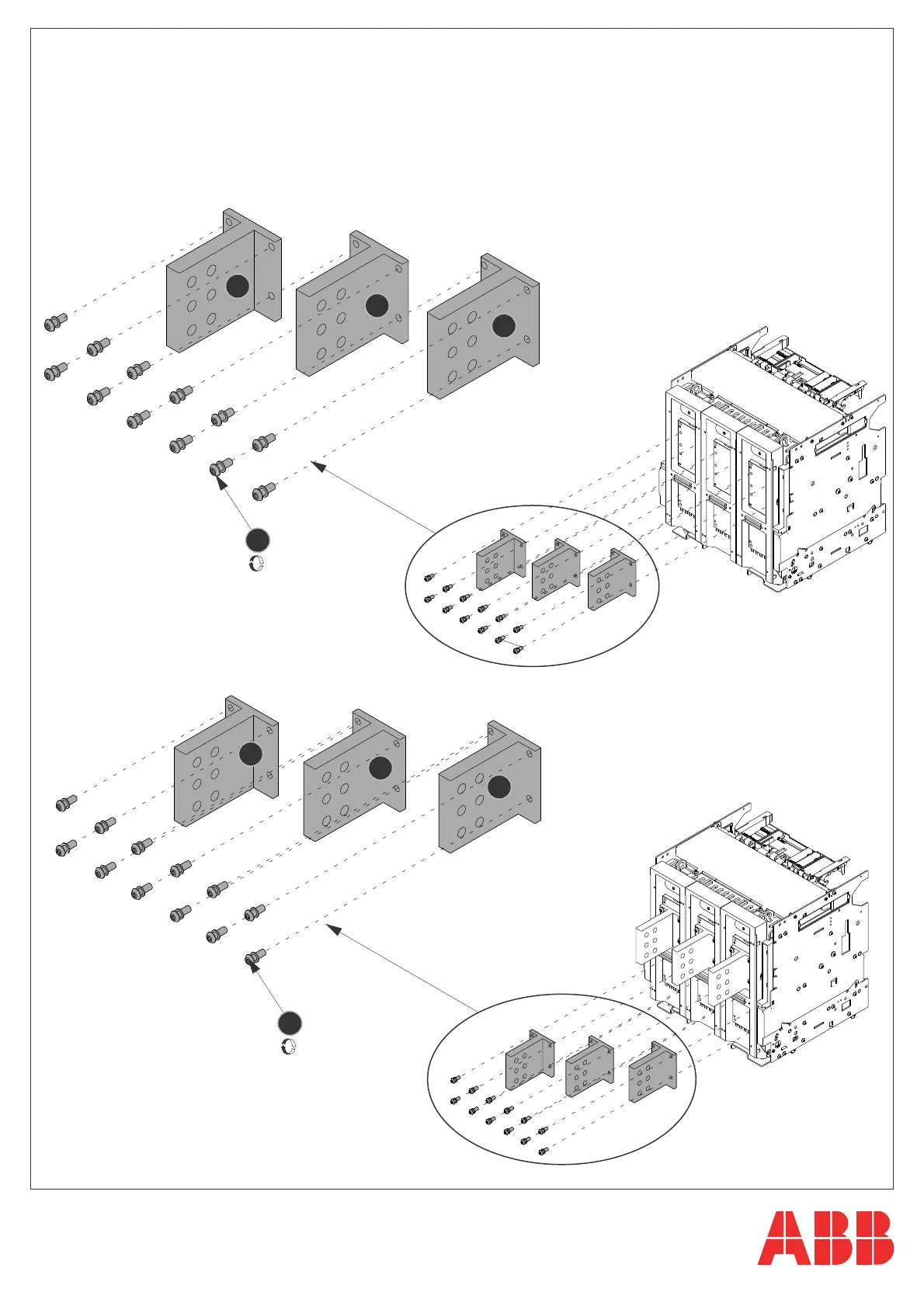

- Installare i terminali sulla parte fissa
- Install the terminals on the fixed part
- Installieren Sie die Klemmen am Festes Teil
- Installer les prises sur la partie xe
- Instale los terminales a la parte ja

ABB Emax 2 Specifications

General

Breaking Capacity	Up to 150 kA
Number of Poles	3 or 4
Standards	IEC 60947-2
Rated insulation voltage	1000V AC
Mounting	Fixed, Withdrawable
