ABB Emax 2 User Manual

(5)
RF Env1(S)-W 1200 VR 3p->E2.2-A 1200
TERMINALE INFERIORE
LOWER TERMINAL
UNTERE ANSCHLUSS
BORNE INFÉRIEUR
TERMINALES INFERIOR
TERMINALE SUPERIORE
UPPER TERMINAL
OBERE ANSCHLUSS
BORNE SUPÉRIEURE
TERMINALES SUPERIOR
8.5Nm(75 lb-in)
2B
8.5Nm(75 lb-in)
2B

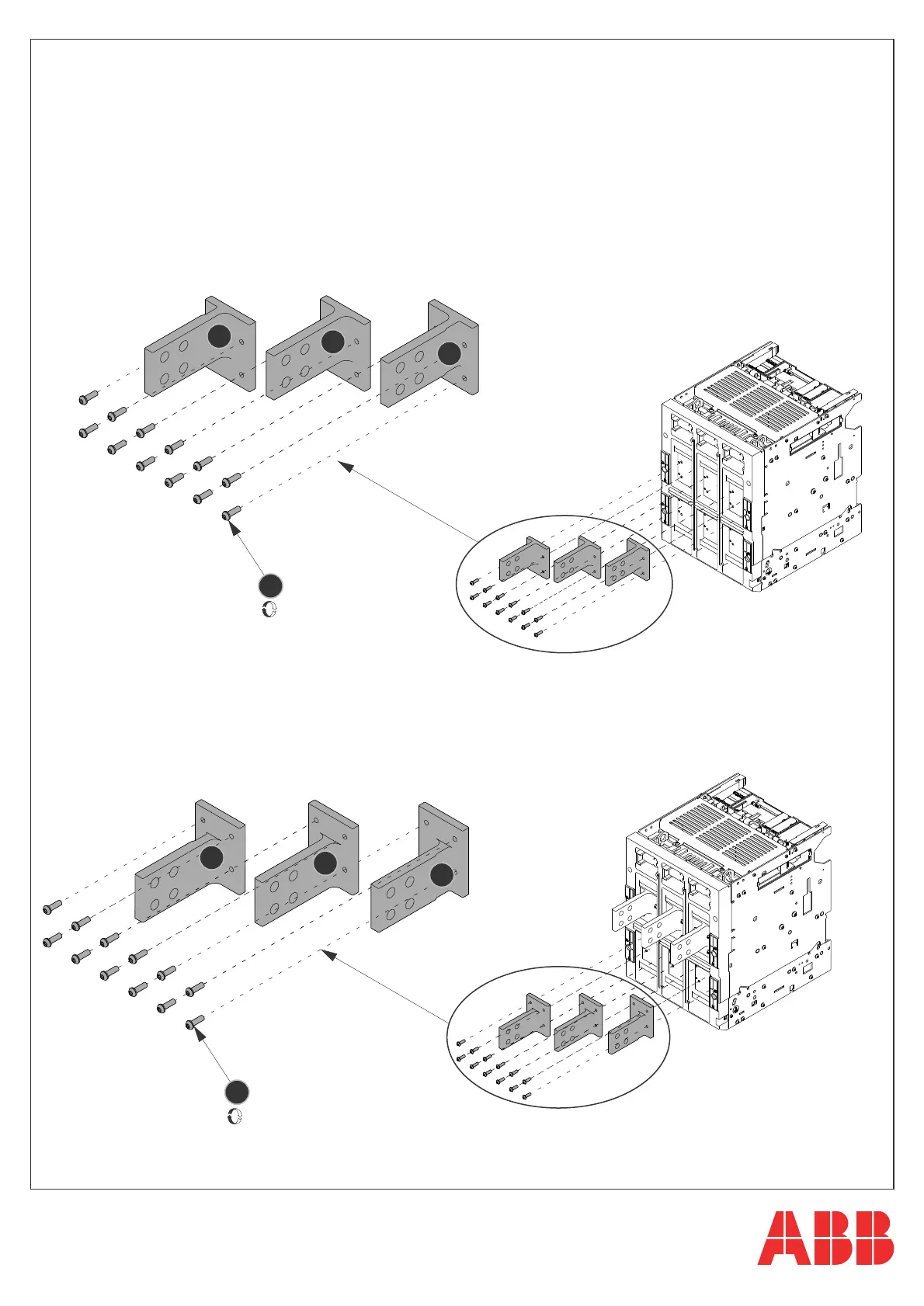

- Installare i terminali sulla parte fissa
- Install the terminals on the fixed part
1
2B
101
102
103
2B
101
102
103
101
102
103
103
102
101
- Installieren Sie die Klemmen am Festes Teil
- Installer les prises sur la partie xe
- Instale los terminales a la parte ja

ABB Emax 2 Specifications

General

Breaking Capacity	Up to 150 kA
Number of Poles	3 or 4
Standards	IEC 60947-2
Rated insulation voltage	1000V AC
Mounting	Fixed, Withdrawable
