Dismantling the nozzle ring

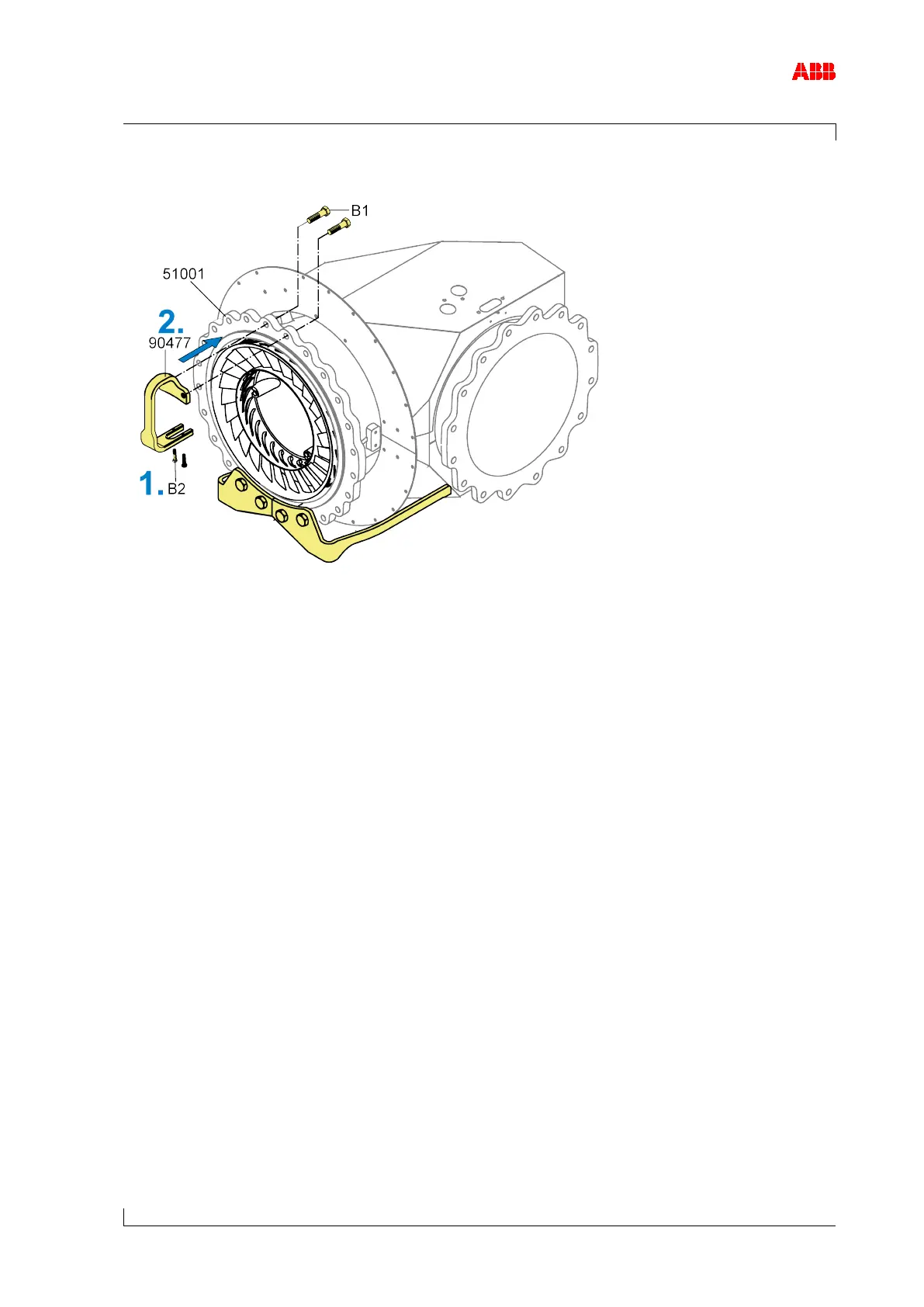

Figure 41: Fitting the nozzle ring holder
1. Remove screws (B
2
).
2. Fit the nozzle ring holder (90477) with screws (B
1
) at the top of the flange of the gas inlet
casing (51001).
