8.2 Weights of assemblies
The specified weights of the individual parts or assemblies are rounded-up standard values.

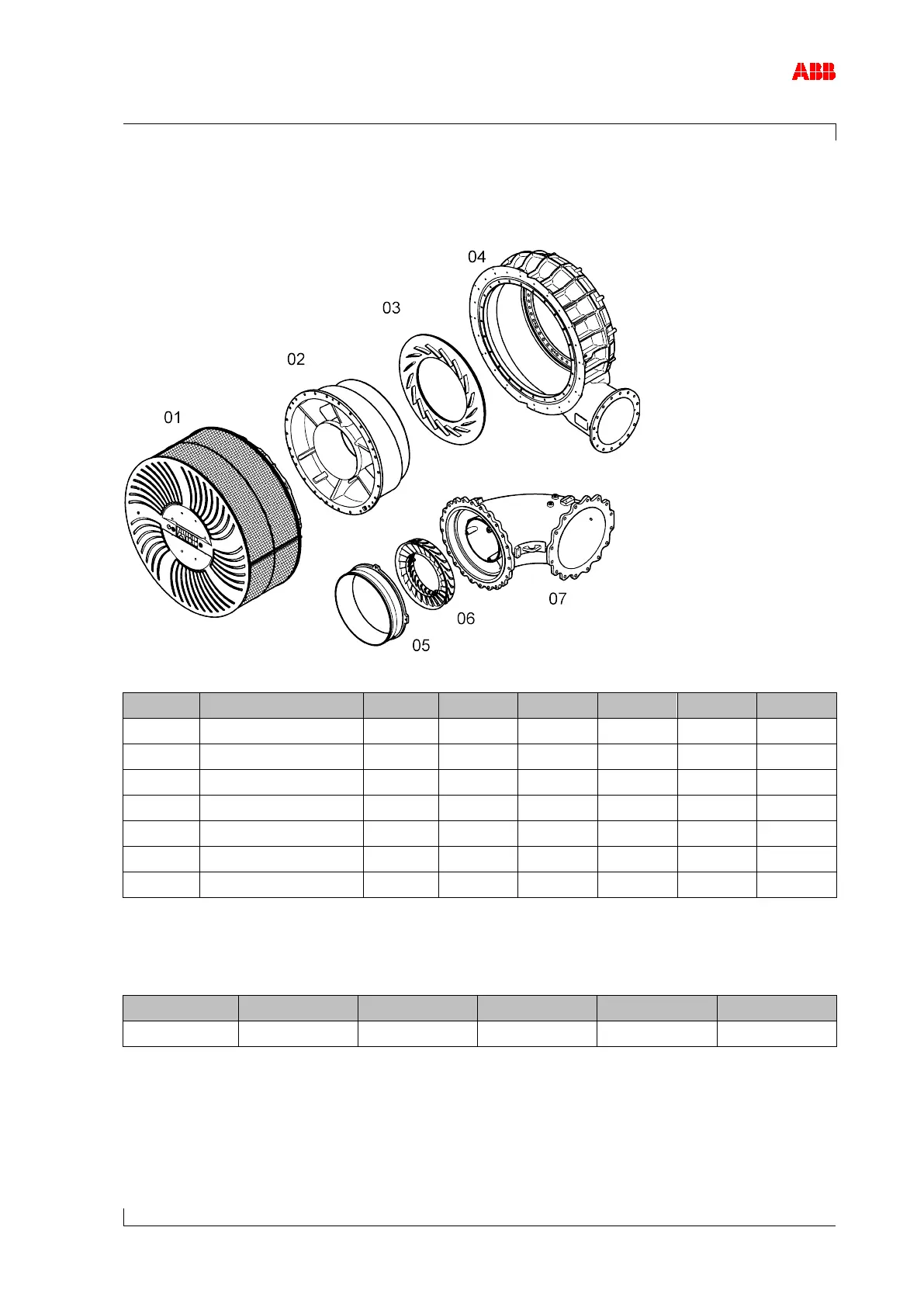

Figure 21: Overview of assembly weights
Position
Assembly
A165-L
A170-L
A175-L
A180-L
A185-L
A190-L
01 Filter silencer 220 280 480 620 850 1050
02 Wall insert 240 340 560 820 1090 1500
03 Diffuser 40 60 100 140 200 270
04 Compressor casing 320 450 740 960 1360 1800
05 Cover ring 30 50 75 90 110 150
06 Nozzle ring 10 20 25 50 65 85
07 Gas inlet casing 180 240 380 520 700 810
Table 27: Weights of assemblies [kg]
The total weight of the complete wall insert is made up of the wall insert and diffuser assem-
blies.
A165-L
A170-L
A175-L
A180-L
A185-L
A190-L
280
400
660
960
1290
1770
Table 28: Weight of wall insert [kg]
