Volume of water per cleaning process
Product
Quantity [dm
3
]
A165-L 2.0
A170-L 2.0
A175-L 3.0
A180-L 3.0
A185-L 3.0
A190-L 3.0
Table 12: Volume of water per cleaning process
The filling time is 4 ... 15 seconds.
Checking the filter plug

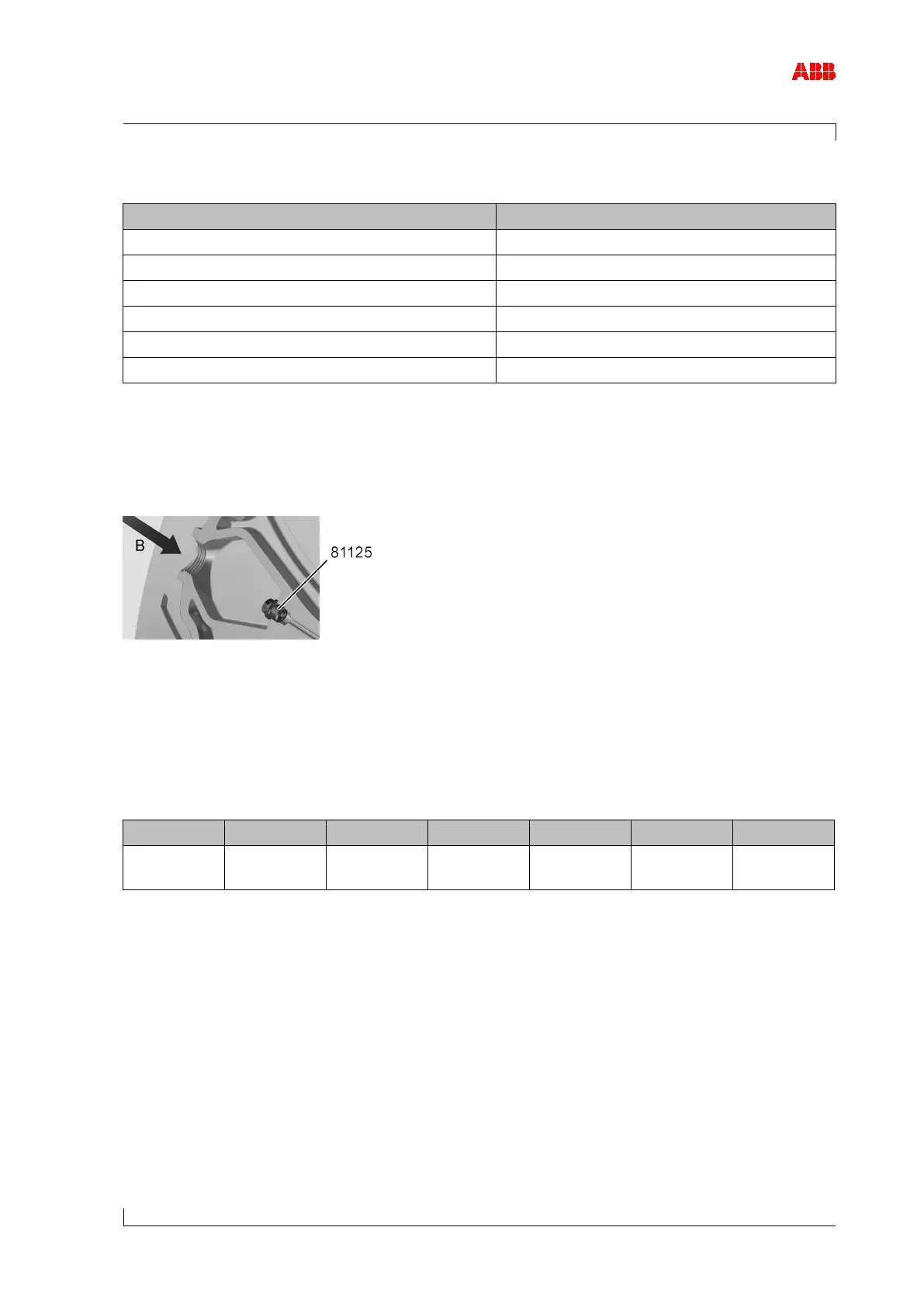

Figure 18: Filter plug view
Disassembly and checking of the filter plug (81125) is required if, 20 seconds after the clean-
ing process, water is still visible in filler opening B.
 Loosen and remove the filter plug (81125) with box spanner
 Clean the drill holes of the plug
 Fit filter plug (81125).
Part number
A165-L
A170-L
A175-L
A180-L
A185-L
A190-L
81125
G1/2"
45 Nm
G1/2"
45 Nm
G1/2"
45 Nm
G1/2"
45 Nm
G1/2"
45 Nm
G1/2"
45 Nm
Table 13: Tightening torques (81125)
