8.11 Fitting the gas inlet casing, nozzle ring (A180-L and
larger)
Fitting the nozzle ring
 Coat the screw threads with high-temperature grease.

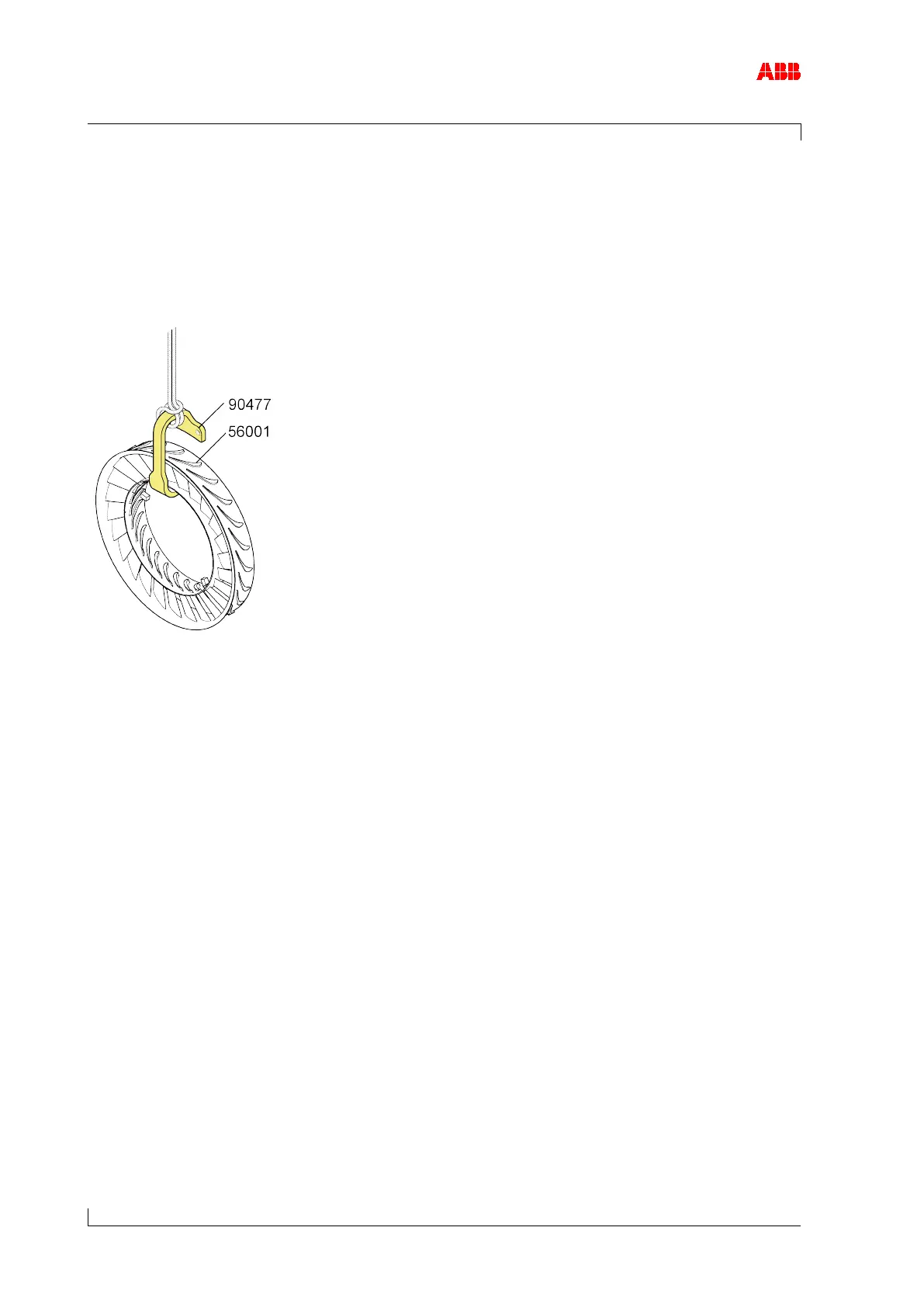

Figure 47: Looping around the nozzle ring (A180-L and larger)
 Loop around the nozzle ring (56001) with lifting gear on the nozzle ring holder (90477) and
fix on the crane.
