2.3 Installing the turbocharger
2.3.1 Placing the turbocharger on the bracket

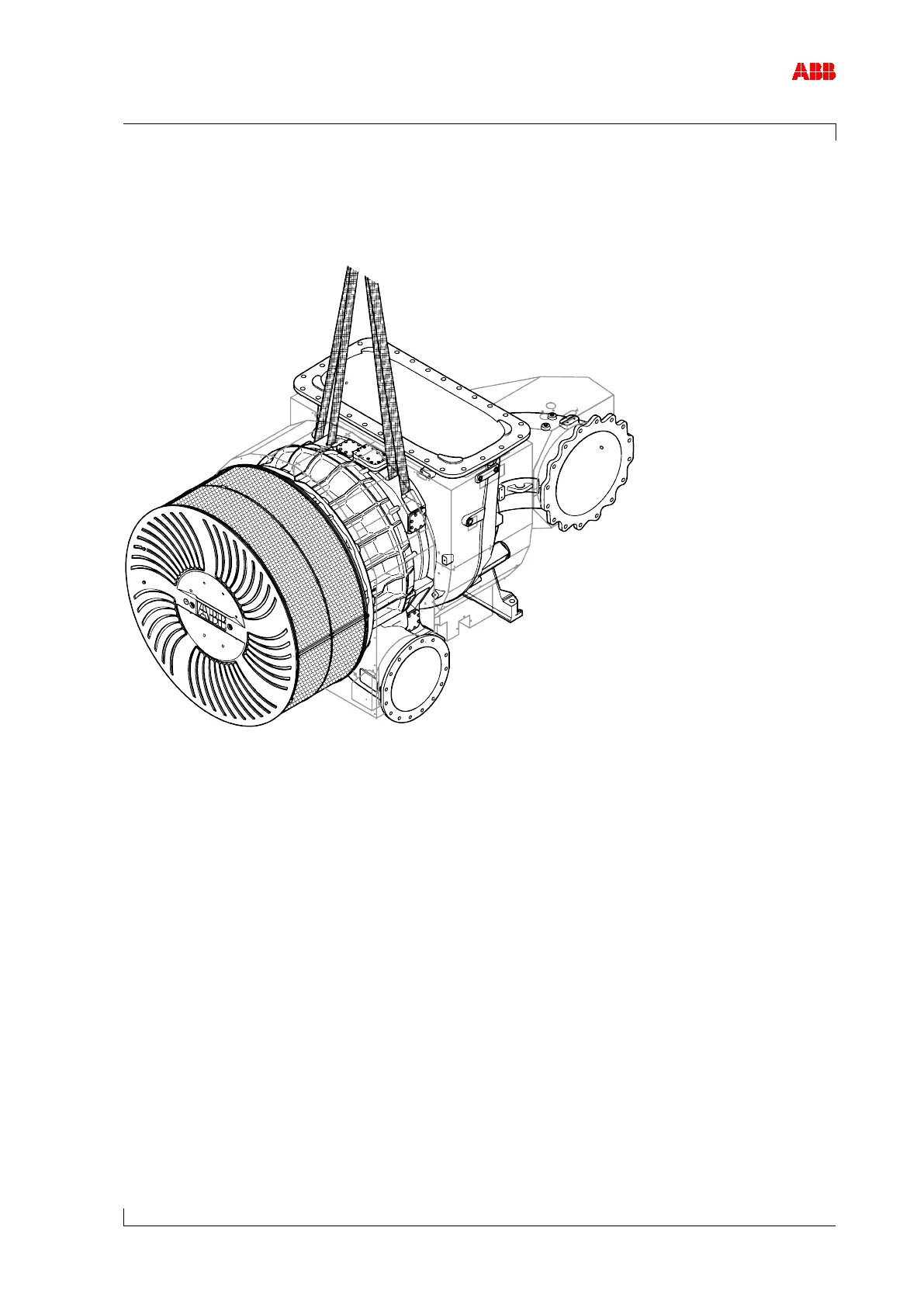

Figure 5: Placing the turbocharger on the bracket
 Remove covers from the oil connections.
 Align turbocharger and place on engine bracket.
 Tighten fixing screws (Steps for fastening the turbocharger [➙ 14]); while doing this, only
slightly loosen the lifting gear.
 Remove lifting gear from suspension eyes of the bearing casing.
 Connect cable to speed sensor.
 Connect all gas, air and oil pipes.
