Operation Manual / 4 Product description / A100-L
2
Removal and installation
Page 12 /
111
© Copyright 2016 ABB. All rights reserved.
HZTL4034_EN
Revision G
October 2016

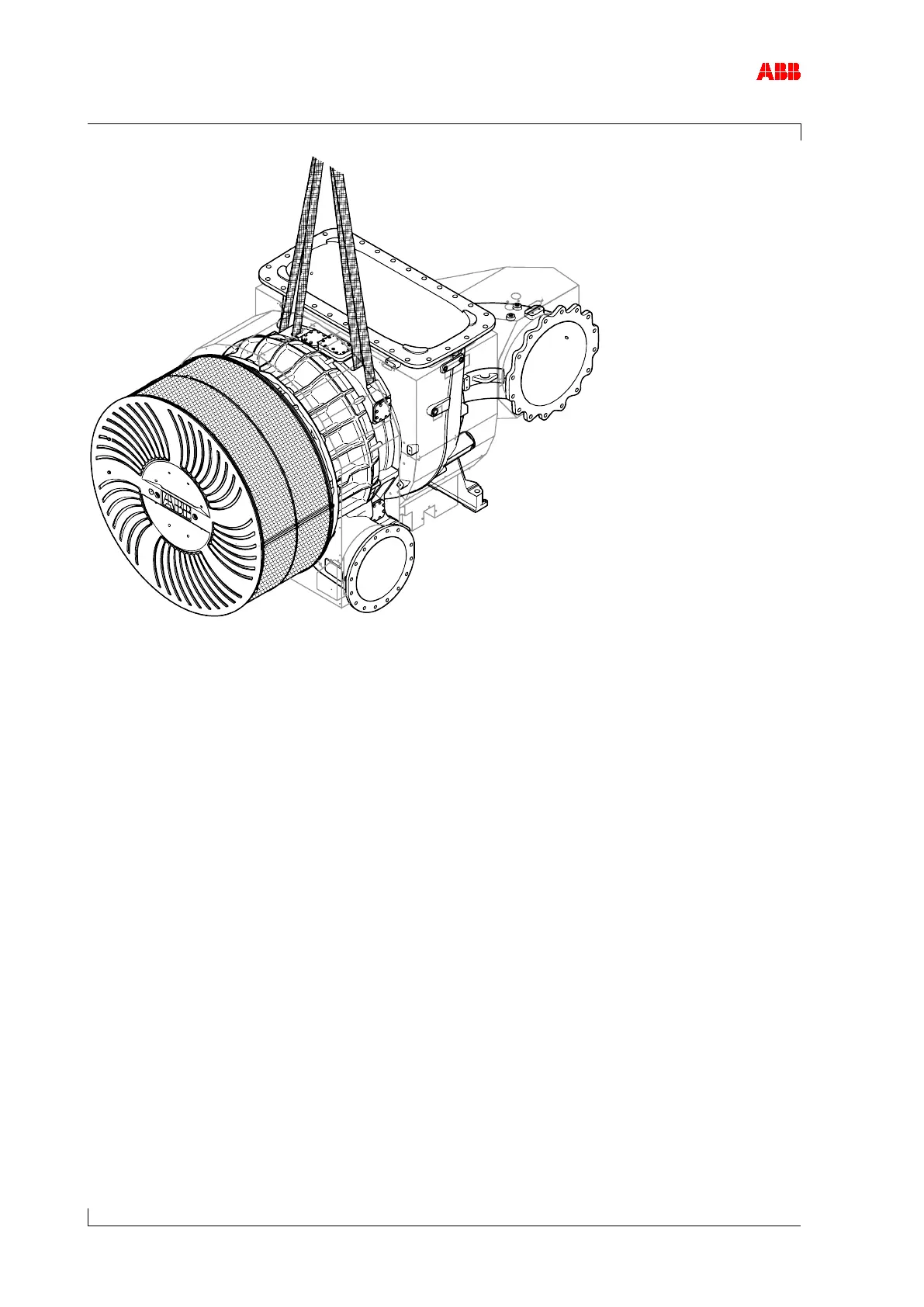

Figure 4: Fitting lifting gear to turbocharger
 Loosen fixing screws on compressor-end and turbine-end foot.
 Lift turbocharger from engine and put down in a suitable location.
 Cover oil connections.
