6.3 Changing the filter strip on the filter silencer casing
This chapter applies only to turbochargers with filter silencer casing. The filter ring (81265) is
replaced with the filter silencer installed.

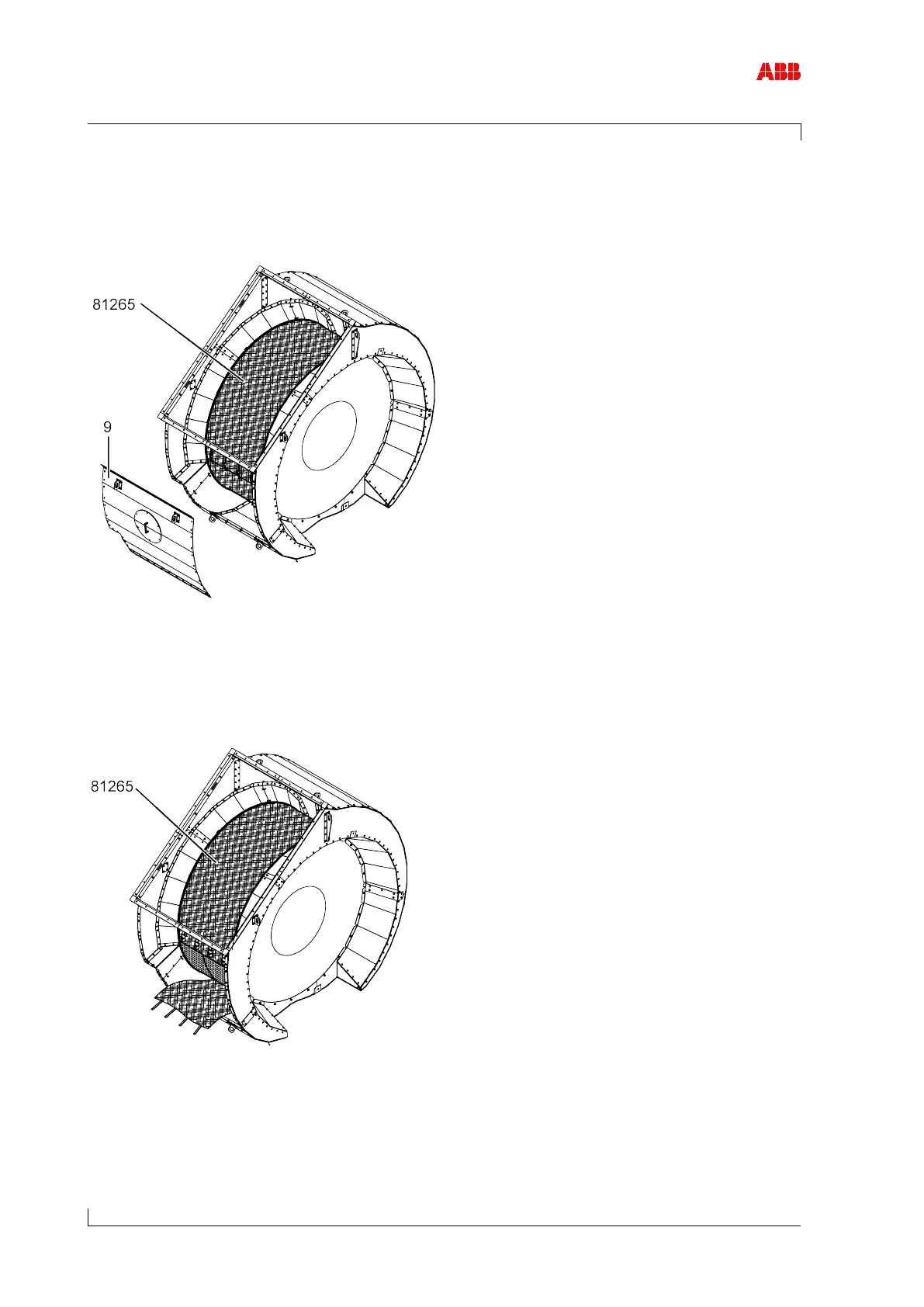

Figure 13: Dismantling filter ring circumferential part
 Dismantle circumferential part (9).
Figure 14: Opening filter ring lock
 Open the lock of the filter ring (81265).
