Operation Manual / 4 Product description / A100-L
6
Periodic maintenance
Page 41 /
111
© Copyright 2016 ABB. All rights reserved.
HZTL4034_EN
Revision G
October 2016

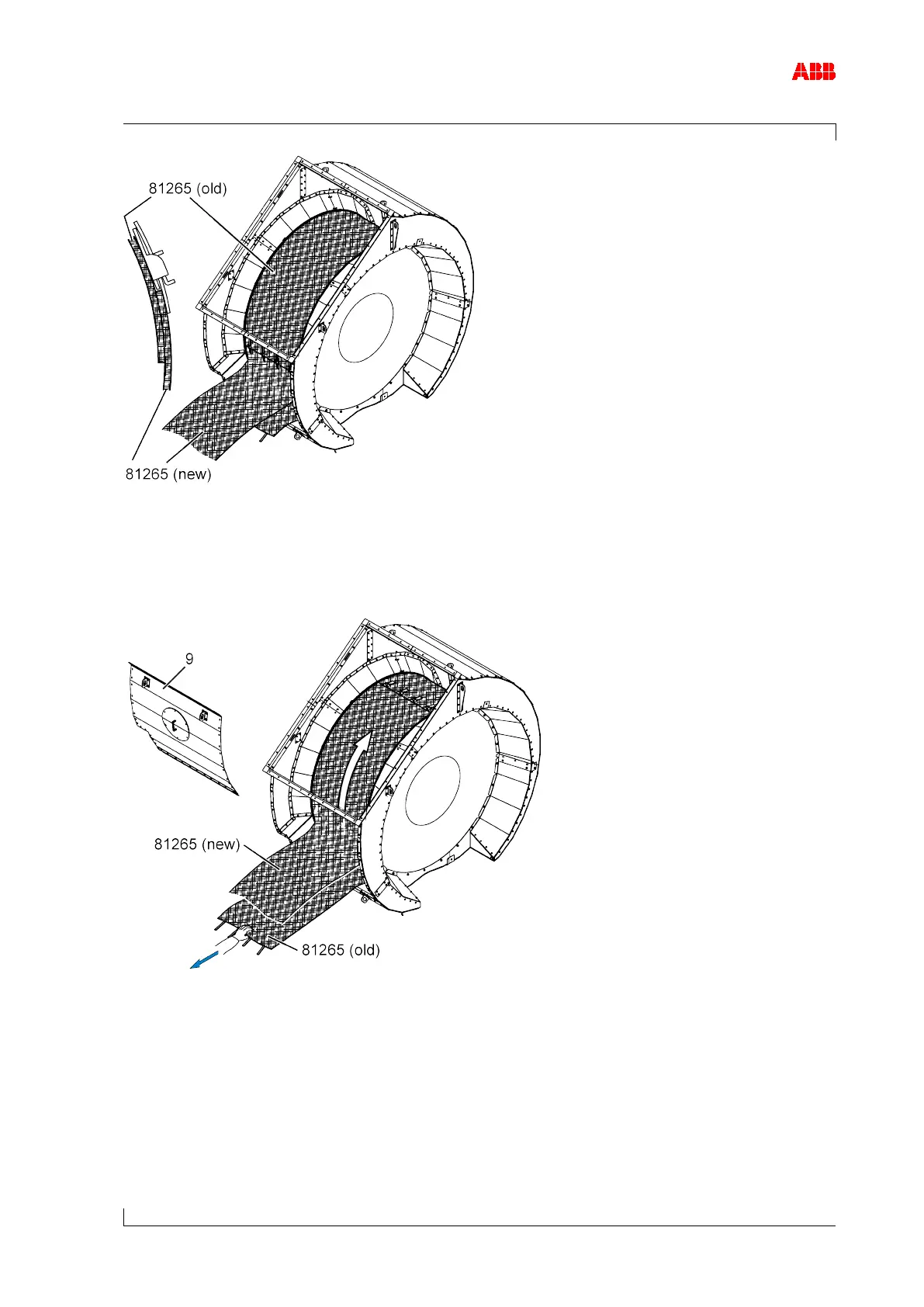

Figure 15: Attaching new filter ring
 Attach the new filter ring (81265) on the filter ring to be replaced so they overlap.
Figure 16: Fitting new filter ring
 Pull on the old filter ring until the new filter ring is completely wrapped around the filter si-
lencer.
 Undo the connection between the new and the old filter ring.
 Fasten the newly installed filter ring (81265), then fit circumferential part (9).
