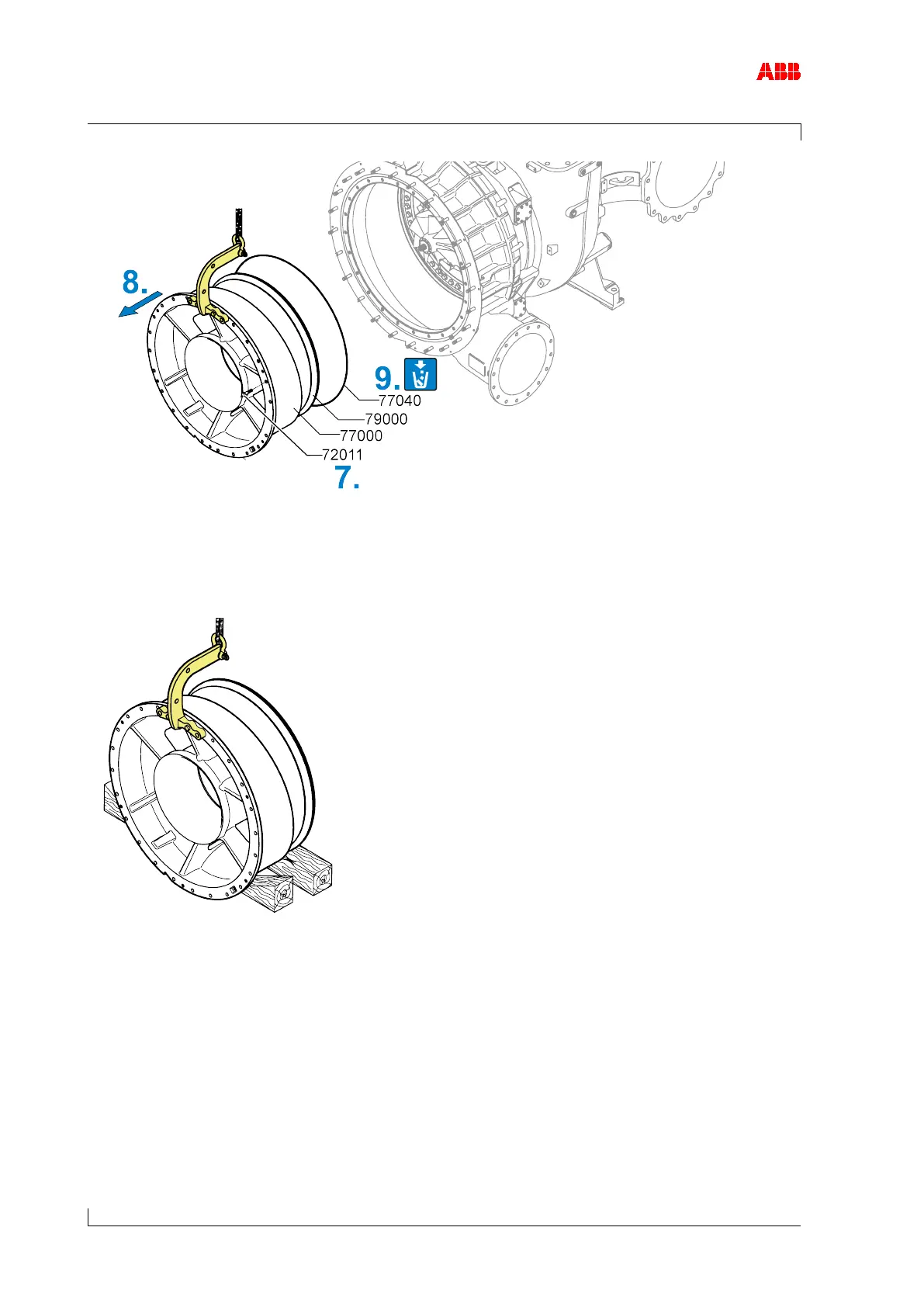

Figure 32: Moving out wall insert
7. Remove screw (72011).
8. Carefully move out the wall insert (77000) with diffuser (79000).
9. Remove the O-ring (77040).
Figure 33: Putting down wall insert
 Put down wall insert (77000) with diffuser (79000) in horizontal position and use appropri-
ate supports to prevent it from falling over and rolling away.
