Operation Manual / 4 Product description / A100-M axial
8 Disassembly and assembly / 8.13 Table of tightening torques
© Copyright 2019 ABB. All rights reserved. HZTL4033_DE Revision C February 2019
Tightening sequence

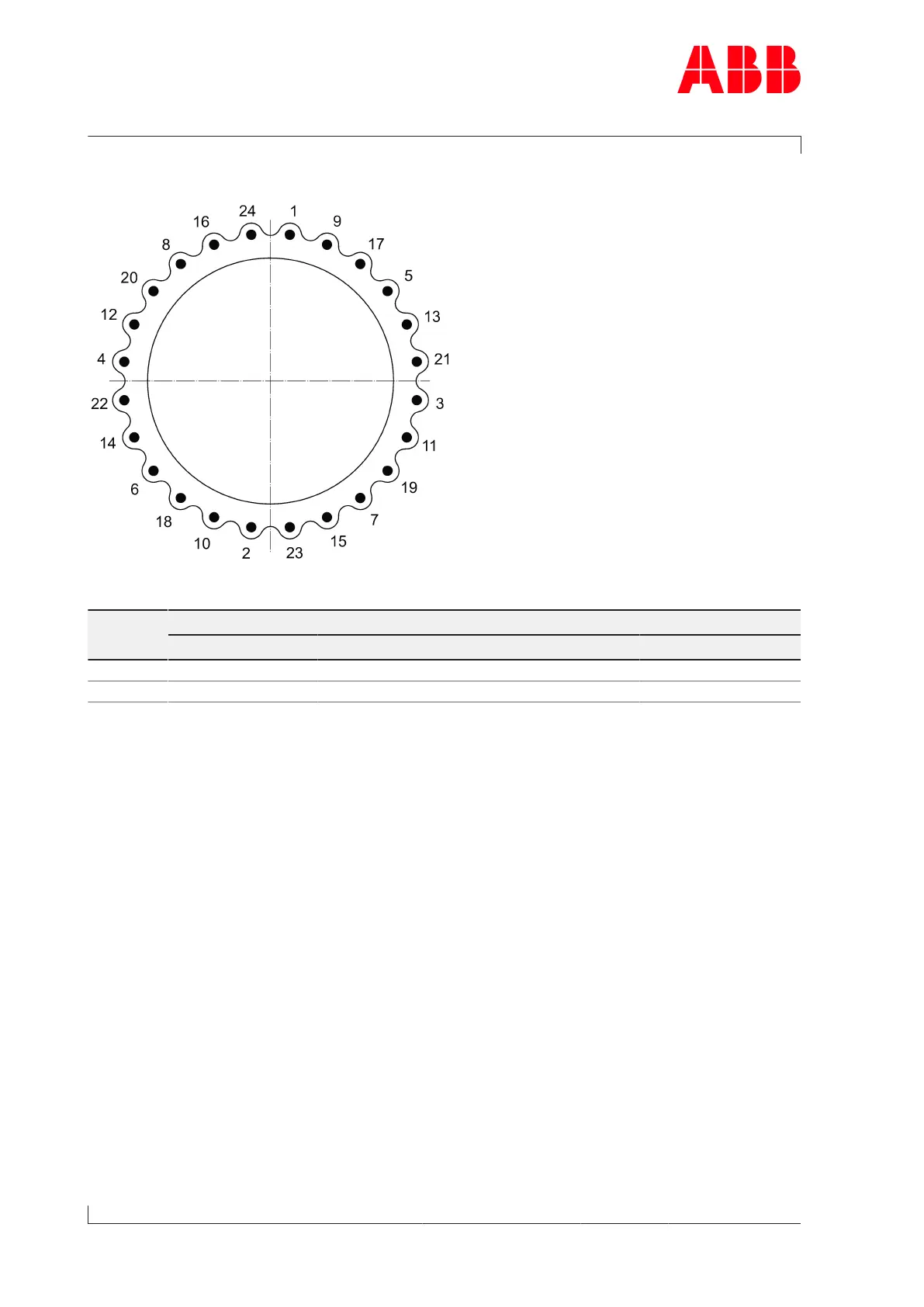

Fig.63: Flange tightening sequence
Product Tightening torque (61009) [Nm]
Step 1 Step 2 Step 3 Step 4
A170-M hand-tight 80 170 280
A175-M hand-tight 100 240 380
Table46: Tightening torques 61009
Page 92 / 108
