Operation Manual / 4 Product description / A100-M axial
5 Operation and service / 5.1 Noise emission
© Copyright 2019 ABB. All rights reserved. HZTL4033_DE Revision C February 2019
Suggestion for noise insulation, bellows

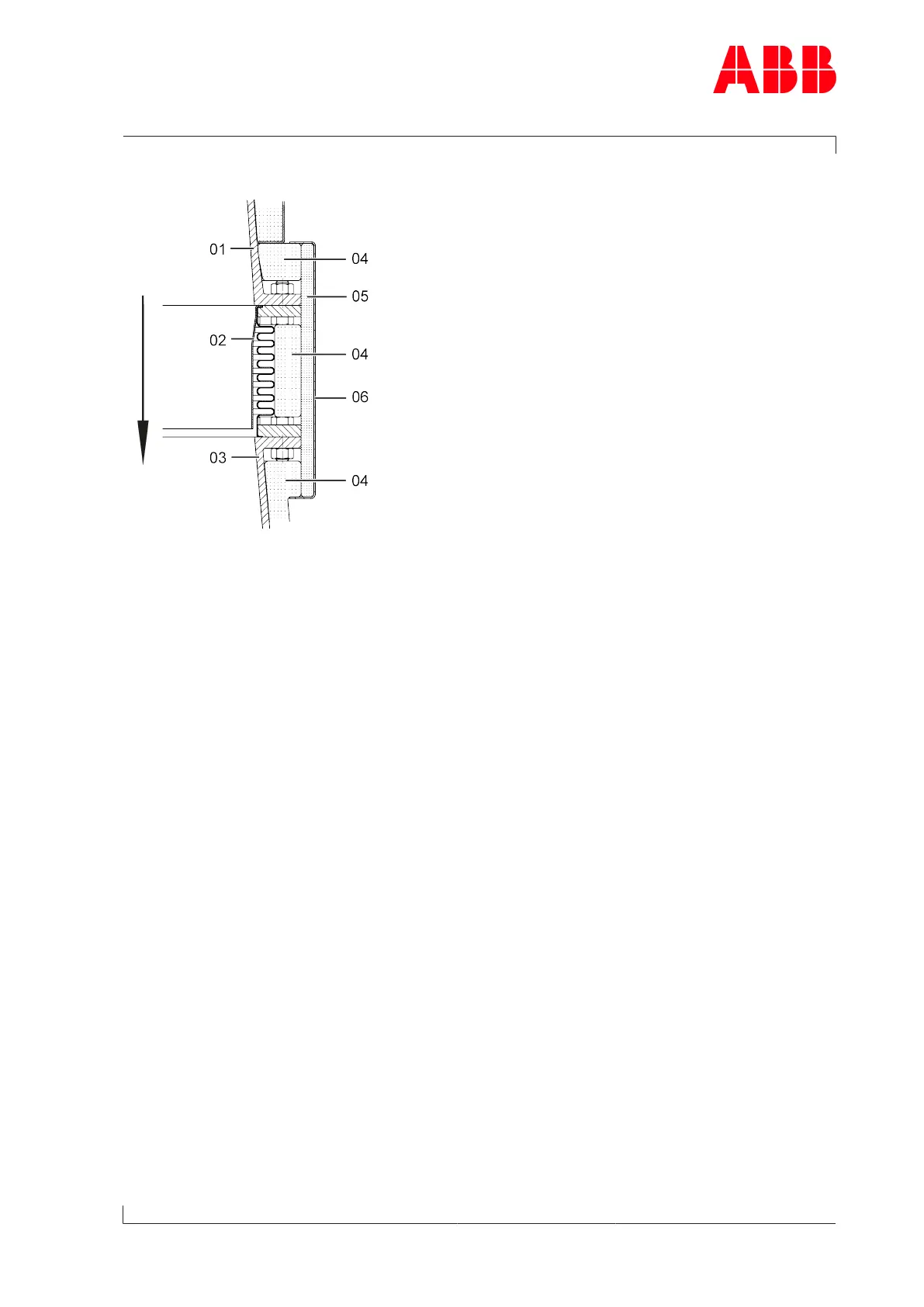

Fig.19: Noise insulation, bellows
01 Compressor casing
02 Bellows
03 Charge air duct / scavenging air duct
04 Insulation cushion
05 Insulation mat (at least 15 mm)
06 Sheet metal cover
Page 27 / 108
