ABB HT588465 - Fig. 32: Transporting and Turning Wall Insert

Operation Manual / 4 Product description / A100-M axial
8 Disassembly and assembly / 8.5 Removing the compressor casing
© Copyright 2019 ABB. All rights reserved. HZTL4033_DE Revision C February 2019

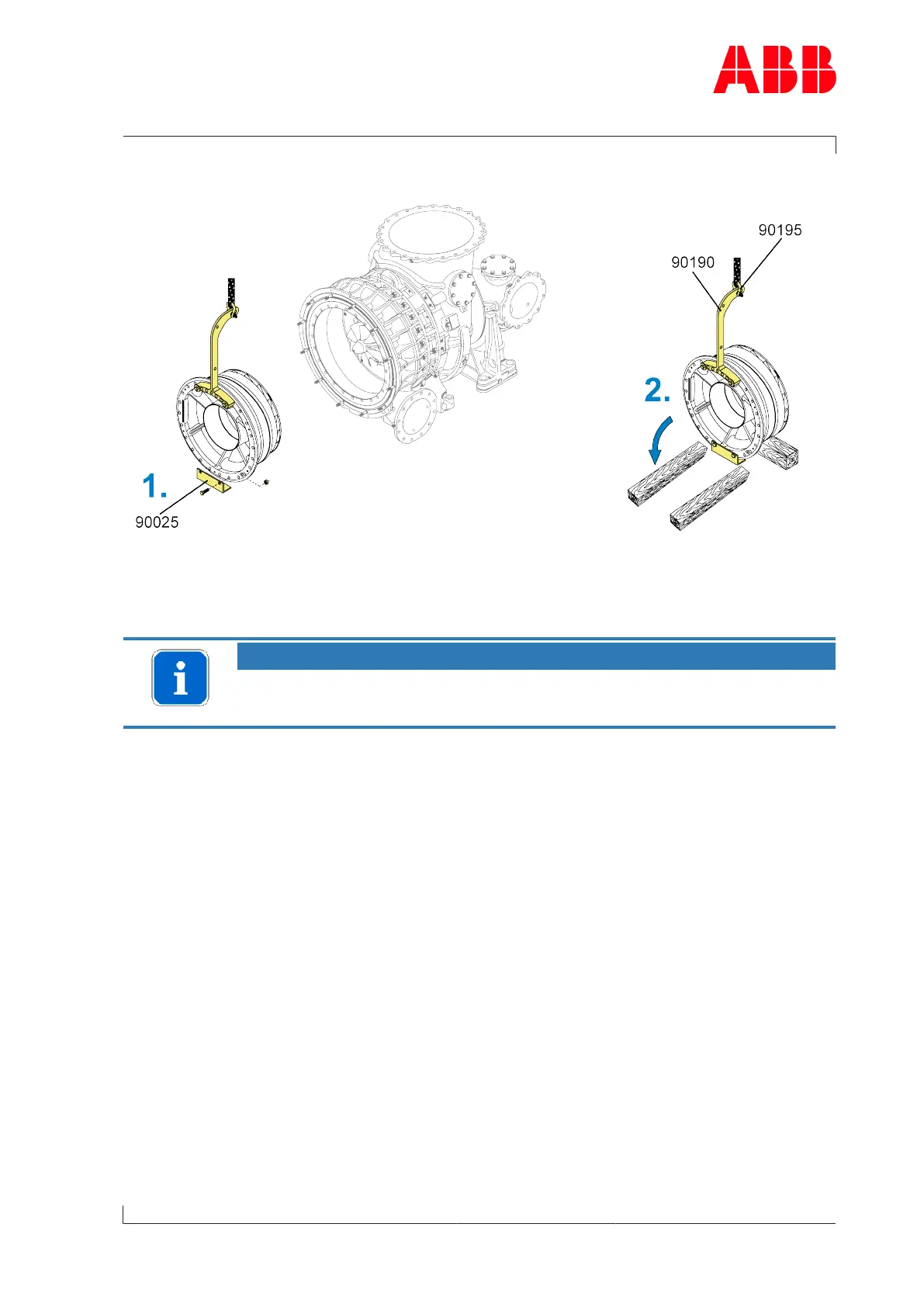

Transporting and turning wall insert
Fig.32: Transporting and turning wall insert
1. Fit support angle (90025) with bolts and nuts.
2. Carefully turn wall insert over support angle (90025) and place on supports.
NOTICE
Reusing the lifting device
Place wall insert such that lifting device (90190/90195) can be removed.
