Operation Manual / A150-M56/66/57/67 - A155-M..
10 Dismantling and fitting with removed air inlet and gas outlet / 10.6
Removing the cartridge group
© Copyright 2021 ABB. All rights reserved. HZTL4032_EN Rev.R August 2021

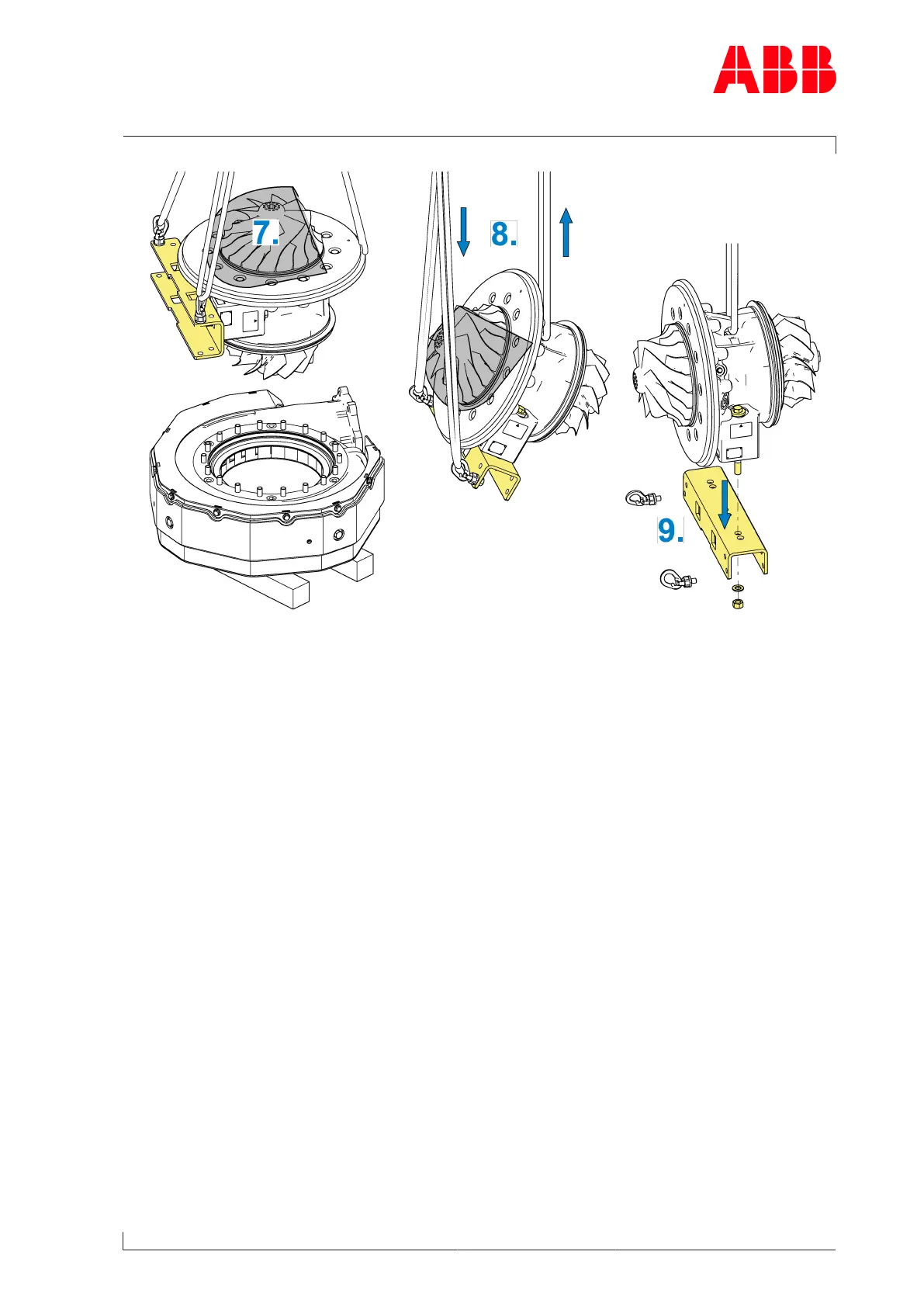

Fig.63: Removing cartridge group 3
7. Place a suitable protective cover over the compressor wheel.
8. Turn the cartridge group into the horizontal rotor axis.
9. Remove lifting gear from service support and cross-piece.
Page 113 / 198
