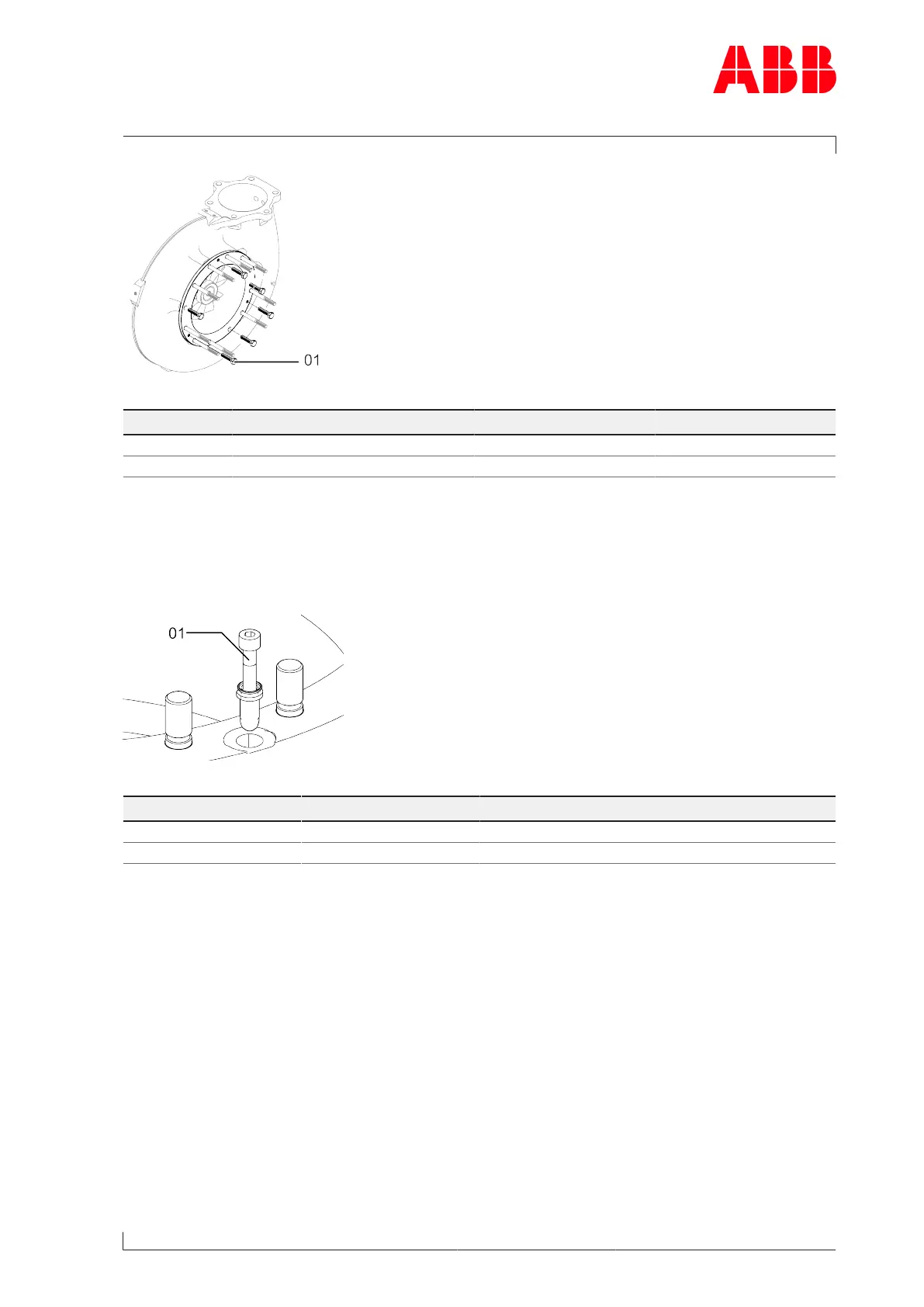

Fig.40: Press-off screws
Product Thread Length Quantity
A150 M12 30 mm 3 or 6
A155 M16 30 mm 3 or 6
Table39: Press-off screws
Dismantling screw for the optional 6-nozzle turbine cleaning component
A dismantling screw(01) is required to dismantle and fit the cleaning nozzles, which is not
supplied by ABB.
Fig.41: Dismantling screw
Product Thread Length [mm] Quantity
A150-M M8 40 1
A155-M M10 50 1
Table40: Dismantling screw
