Operation Manual / A150-M56/66/57/67 - A155-M..
12 Dismantling and fitting, special tools for fastening strips / 12.1 Ap-
plication, special tools
© Copyright 2021 ABB. All rights reserved. HZTL4032_EN Rev.R August 2021
Fig.116: Clamping piece

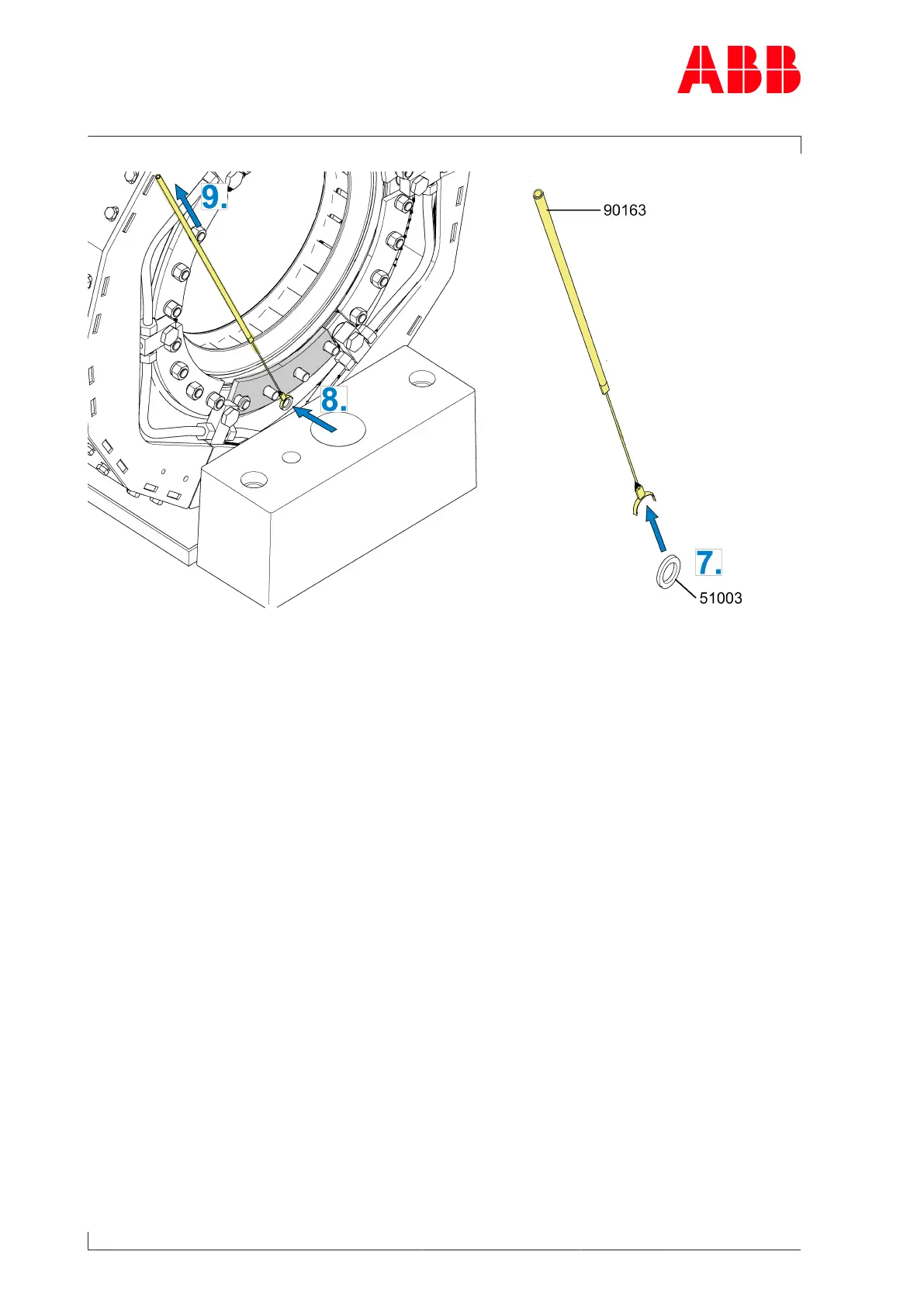

7. Fix the washer (51003) with clamping device (90163) and check to ensure it is properly
seated.
8. Position the washer (51003) on the set screw.
9. Remove the clamping device.
Page 160 / 198
