14 Fitting the cleaning nozzles with multi-
inlet turbine casings

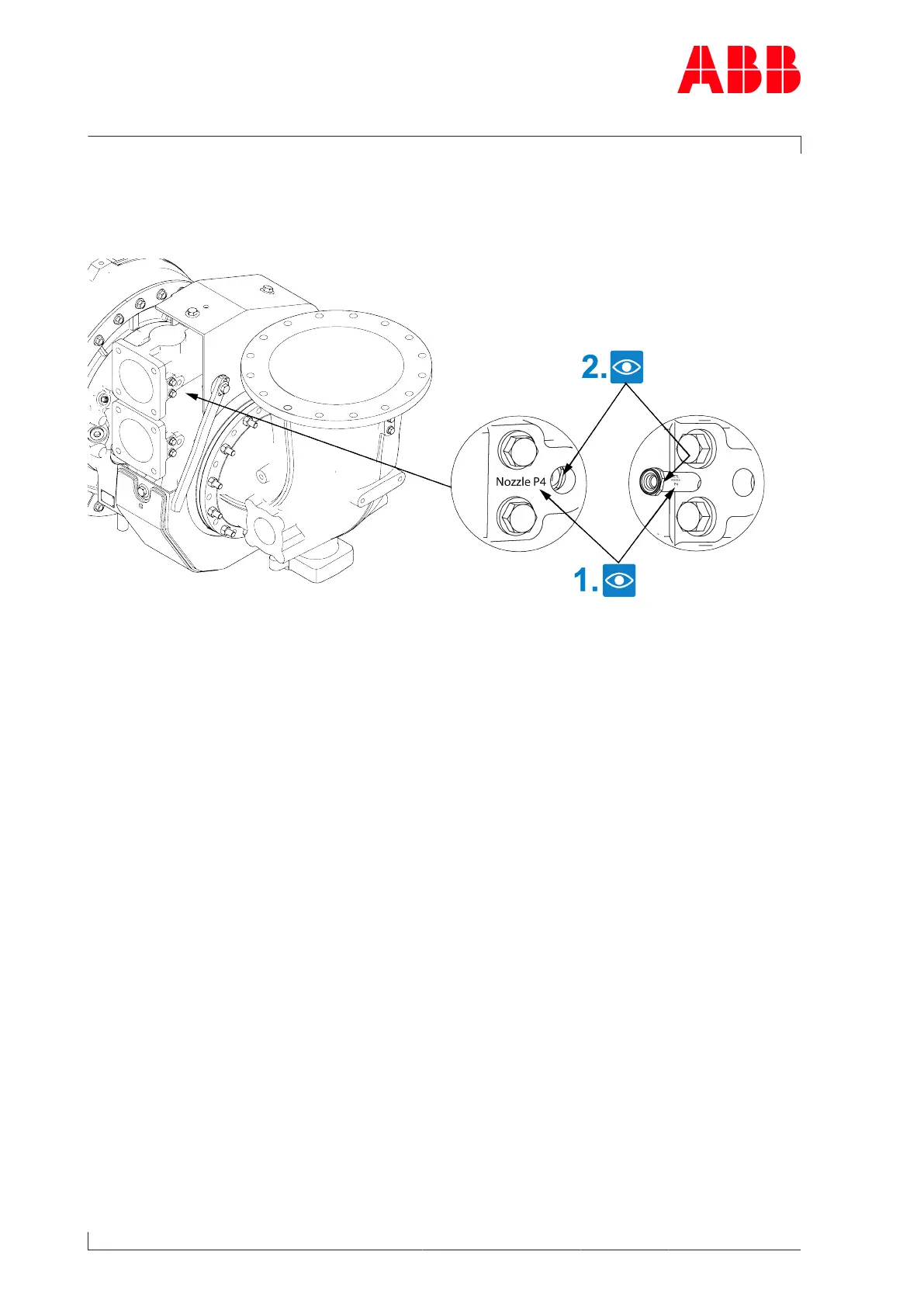

Fig.129: Fit the cleaning nozzles
1. The designation(P . ) on the turbine casing must correspond with the designation(P . )
on the cleaning nozzle.
2. The edges for the defined installation position in the turbine casing and at the cleaning
nozzle must correspond.
