ABB HT606752 - Fig. 86: Removing the Uncoupled Filter Silencer

Operation Manual / A150-M56/66/57/67 - A155-M..
11 Dismantling and fitting, cartridge concept / 11.1 Removing air inlets
© Copyright 2021 ABB. All rights reserved. HZTL4032_EN Rev.R August 2021
A155-M Uncoupled filter silencer

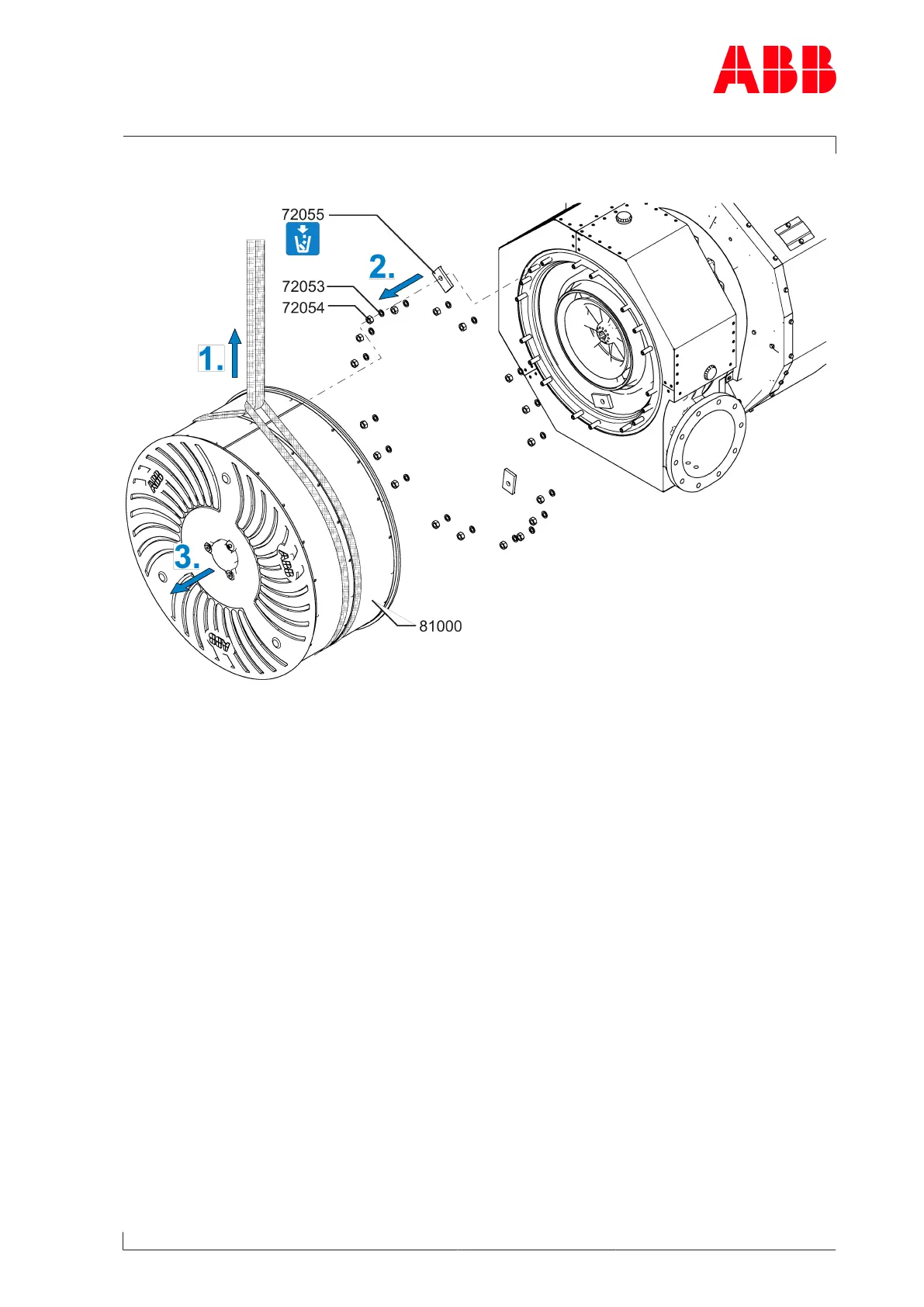

Fig.86: Removing the uncoupled filter silencer
1. Secure lifting gear to filter silencer(81000).
2. Unscrew the hexagon-head screws(72054) and remove along with Verbus Ripp® wash-
ers(72053) and three safety plates(72055).
3. Remove the filter silencer(81000).
Page 135 / 198
