ABB HT606752 - Fitting the Insulation; Fig. 77: Fitting the Insulation

Operation Manual / A150-M56/66/57/67 - A155-M..
10 Dismantling and fitting with removed air inlet and gas outlet / 10.17
Fitting the insulation
© Copyright 2021 ABB. All rights reserved. HZTL4032_EN Rev.R August 2021
10.17 Fitting the insulation

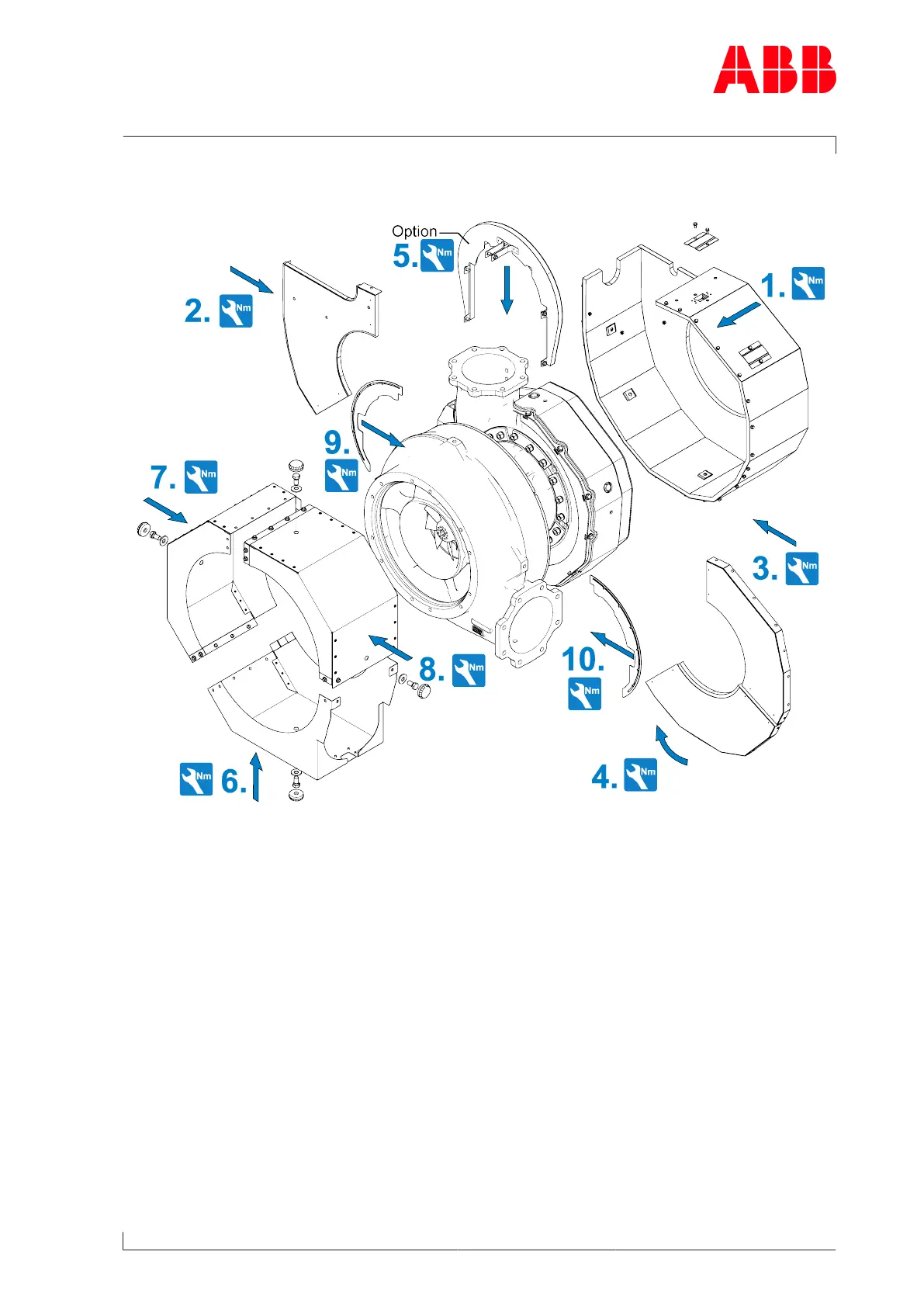

Fig.77: Fitting the insulation
u Fit the insulation according to the illustration. Observe tightening torques (see Table of
tightening torques →97).
Page 127 / 198
